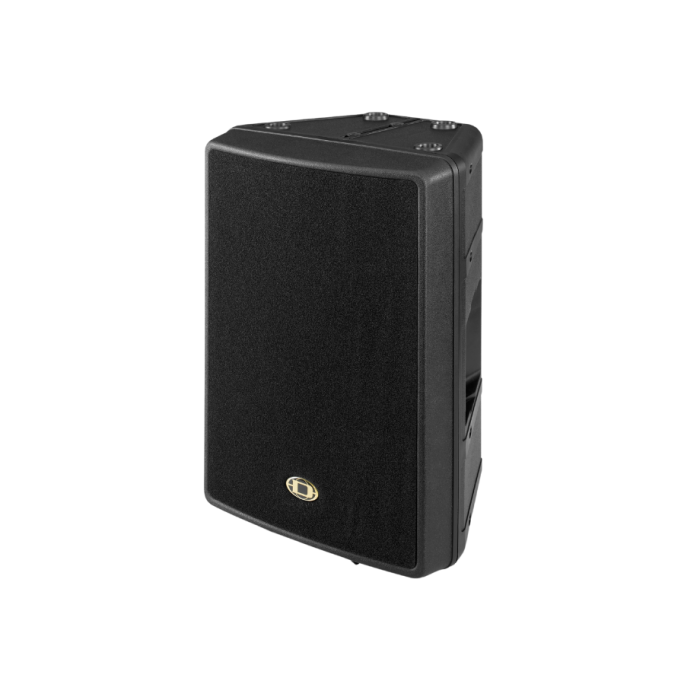

Dynacord D 11A Powered 12″ Full‑Range Speaker
Brand
DYNACORD
The Dynacord D 11A is a professional powered full‑range speaker designed for portable PA, live music, and fixed installation applications. It integrates Class‑D amplifiers, an electronic crossover, and loudspeaker equalization into a compact 2‑way cabinet with a 12‑inch low‑frequency driver and a 1‑inch high‑frequency driver.
With 2×200 W RMS power for both low and high frequency sections and a maximum overall output capability of 800 W, the D 11A delivers robust performance with wide frequency coverage. A switchable low‑cut filter facilitates seamless integration with powered subwoofers for expanded systems. The speaker’s XLR/jack combo line input and controllable stereo AUX channel with RCA inputs support flexible source connectivity.
This powered speaker is suitable for a variety of professional audio environments, including mobile PA setups, event sound reinforcement, and installed AV systems. The robust polypropylene enclosure and integrated handle support practical handling and durability.
Dynacord D 11A Powered 2‑Way Speaker Cabinet
The Dynacord D 11A is a professional powered full‑range 2‑way speaker cabinet featuring an integrated Class‑D amplifier, electronic crossover, and loudspeaker equalization. It is designed for live sound reinforcement, mobile PA systems, and fixed installations requiring reliable, high‑quality audio performance.
Key Features
- Powered 2‑way full‑range speaker cabinet
- Integrated Class‑D amplifiers with bi‑amped design
- 200 W RMS for low frequencies and 200 W RMS for mid‑high frequencies
- Maximum overall amplifier output up to 800 W
- Frequency range: 48 Hz – 20 kHz
- Maximum sound pressure level: 126 dB
- Nominal coverage angle: 80° horizontal × 40° vertical
- Switchable low‑cut filter for subwoofer integration
- Line input on XLR/jack combo connector
- Stereo AUX input with RCA connectors and separate mic input
Performance
The D 11A delivers clear, powerful audio with smooth frequency response and controlled dispersion. Its integrated electronics provide reliable gain structure without the need for external processing, and the speaker can be used alone or combined with subwoofers for extended low‑frequency performance. Bi‑amped amplification and a precision crossover ensure balanced output across the spectrum. :contentReference[oaicite:1]{index=1}
Technical Specifications
- Configuration: Powered full‑range 2‑way
- Low‑Frequency Amplifier Power: 200 W RMS
- Mid‑High Amplifier Power: 200 W RMS
- Maximum Amplifier Output: 800 W
- Frequency Response: 48 Hz – 20 kHz (‑10 dB)
- Maximum SPL: 126 dB
- Coverage Angle (H × V): 80° × 40°
- Dimensions (W × H × D): 429 × 586 × 321 mm
- Weight: 15.3 kg
- Enclosure: Heavy‑duty polypropylene
- Connectors: XLR/jack combo, stereo AUX RCA, mic input
Why Choose Dynacord D 11A?
The Dynacord D 11A powered speaker offers robust performance, integrated amplification, and flexible connectivity in a compact, rugged design. Its balanced power distribution and wide frequency response make it suitable for a variety of applications including live performances, mobile PA setups, and fixed sound systems.
