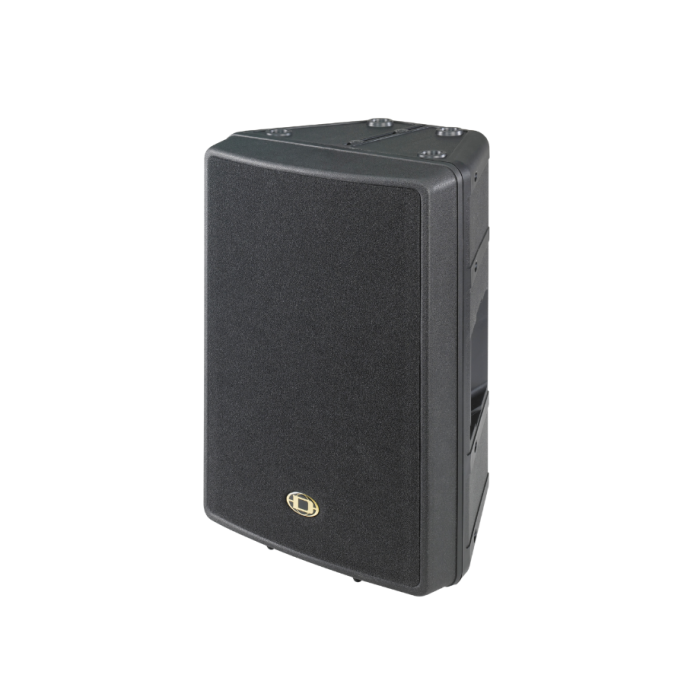

Dynacord D 12A Powered 12″ Full‑Range Speaker
Brand
DYNACORD
The Dynacord D 12A is a professional powered (active) 12″ full‑range speaker designed for portable sound reinforcement and fixed installation applications. It features a bi‑amped configuration with dedicated digital amplifiers for low and mid‑high frequency drivers, delivering balanced and dynamic audio performance. The polypropylene enclosure ensures mechanical robustness for touring and PA use while providing resistance against transport abuse. The speaker is suitable for use as a standalone full‑range unit or as a mid‑high element in satellite systems. Built‑in controls allow adjustment of output level, and the unit includes XLR and phone‑jack input connectivity with a daisy‑chain output for additional cabinets.
Dynacord D 12A Powered 12″ 2-Way Cabinet
The Dynacord D 12A is a professional powered 2-way full-range speaker cabinet designed for portable sound reinforcement, installations, and high-performance PA applications. It features a 12″ low-frequency driver and a high-frequency neodymium driver for clear, powerful audio with broad coverage.
Key Features
- Powered 2-way full-range speaker with bi-amplification
- Integrated digital amplifiers: 350 W RMS (low) / 150 W RMS (mid-high)
- 12″ low-frequency driver for solid bass and midrange
- High-frequency neodymium driver with constant-directivity horn
- Coverage: 80° horizontal × 40° vertical
- Frequency response: 45 Hz – 20 kHz (‑10 dB)
- Maximum SPL: 129 dB
- Durable polypropylene enclosure with steel grille
- Integrated carrying handle and pole-mount socket
- Line-level input with XLR or 1/4″ phone jack and daisy-chain capability
Technical Specifications
- Speaker Type: Powered full-range 2-way cabinet
- Crossover Frequency: 1.2 kHz
- Enclosure Material: Polypropylene
- Dimensions (W × H × D): 429 × 586 × 321 mm
- Weight: 17.5 kg
- Power Requirement: 110–130 V / 220–240 V AC, 50–60 Hz
Why Choose Dynacord D 12A?
The Dynacord D 12A delivers high-quality audio with robust construction and versatile coverage, making it ideal for live sound, installations, and professional PA setups.
| Manufacturer | DYNACORD |
|---|
