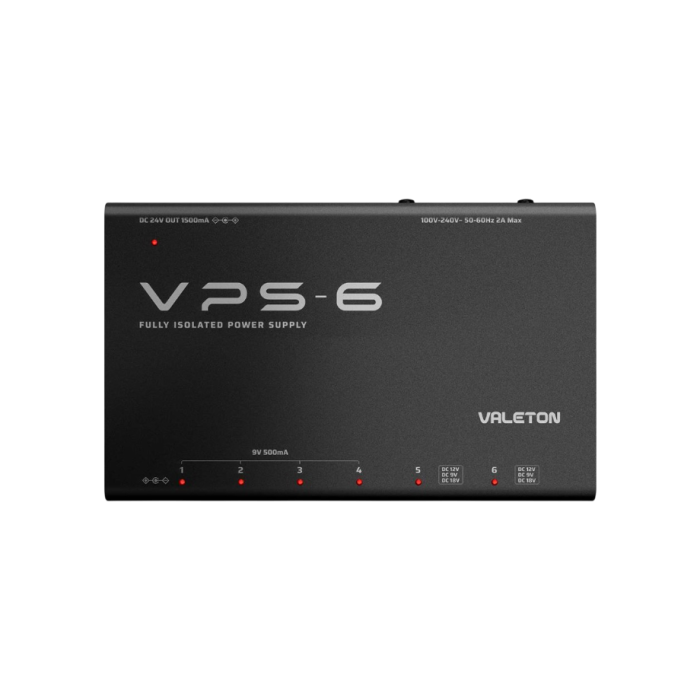

Valeton VPS-6 Fully Isolated Effects Pedal Power Supply – 6-Output

Overview

The Valeton VPS-6 Fully Isolated Effects Pedal Power Supply is a high-output, versatile power solution designed for modern guitar and bass pedalboards. With six independently isolated power channels, multiple voltage options, dedicated protection circuits, and strong noise reduction, the VPS-6 provides clean and reliable power for a wide range of effects pedals and compatible musical equipment.

Featuring four dedicated 9V outputs, two switchable outputs offering 9V, 12V, or 18V operation, and an additional 24V DC output for expansion, the VPS-6 gives musicians the flexibility to power different types of pedals from a single compact unit. Its full-metal aluminum construction, wide 100–240V AC input range, and independent overload and short-circuit protection make it suitable for home studios, rehearsals, live performances, and touring pedalboards.

Key Features

• Fully isolated multi-output effects pedal power supply
• Six independent customized transformers for clean and reliable power
• Four dedicated 9V DC outputs rated at 500mA each
• Two switchable outputs supporting 9V/500mA, 12V/375mA, or 18V/250mA
• Additional 24V DC output rated at 1500mA for expansion
• Center-negative polarity for standard pedal outputs
• 24V output uses center-positive polarity
• Premium noise reduction using solid-state capacitors and common-mode inductance filtering
• Independent overload, over-voltage, and short-circuit protection for each channel
• LED indicators for monitoring individual output status
• 100–240V AC, 50/60Hz wide-range input for international compatibility
• Compact full-metal aluminum chassis
• Efficient heat dissipation for stable operation
• 24V expansion output allows additional compatible power supplies to be connected
• Designed for modern guitar, bass, and effects pedalboards

Fully Isolated Power for Cleaner Pedalboards

The VPS-6 uses six independent customized transformers to provide isolated power to individual output channels. This design helps prevent unwanted interaction between connected pedals and reduces the electrical noise that can occur when multiple effects share a common power source.

For musicians using several digital and analog pedals together, isolated power can help create a cleaner and more reliable signal environment. The VPS-6 is designed to deliver stable power while minimizing unwanted noise that can interfere with your playing and overall pedalboard performance.

Premium Noise Reduction

The VPS-6 incorporates solid-state capacitors and common-mode inductance filtering to improve power cleanliness. These components are designed to reduce unwanted electrical interference, helping connected pedals receive a cleaner power supply.

This makes the VPS-6 particularly useful for modern pedalboards containing high-current digital effects, multi-effects units, modulation pedals, delays, reverbs, and other equipment where a clean power source is important.

Four Dedicated 9V Outputs

Four isolated outputs provide 9V DC at up to 500mA per channel, giving you a generous amount of current for compatible effects pedals. Each output operates independently, allowing multiple pedals to receive isolated power from the same compact power supply.

The 500mA capacity of each dedicated 9V output makes the VPS-6 suitable for many modern high-current pedals that require more power than traditional low-current pedal supplies can provide.

Switchable 9V, 12V and 18V Outputs

Two additional isolated outputs provide selectable voltage options for greater compatibility with different pedal designs. Each switchable output can provide 9V at 500mA, 12V at 375mA, or 18V at 250mA.

This flexibility allows the VPS-6 to accommodate pedals and devices that require different operating voltages, reducing the need to carry separate power adapters for compatible equipment.

Expandable 24V Output

The VPS-6 includes a dedicated 24V DC output rated at 1500mA for additional expansion. Compatible 24V DC input power supplies can be connected to this output to provide additional power options when your pedalboard grows beyond the available isolated outputs.

This expandable architecture makes the VPS-6 a practical long-term power solution for musicians who expect their pedalboard to evolve over time.

Independent Protection for Every Channel

Each output channel features independent overload and short-circuit protection to help safeguard both the power supply and connected equipment. The VPS-6 also provides LED status indicators that make it easier to identify the condition of each output.

When an output is operating normally, its LED provides visual confirmation. If a short circuit occurs or the power cord is disconnected, the corresponding LED turns off. When a connected load exceeds the available output capacity, the power supply enters protection mode and the LED flashes to indicate the condition.

Flexible Polarity Options

The standard pedal outputs provide center-negative polarity, making them compatible with a wide range of modern guitar and bass effects pedals. The dedicated 24V output uses center-positive polarity for compatible expansion equipment.

Because voltage, current, and polarity requirements vary between pedals, always confirm the specifications of each device before connecting it to the VPS-6.

Wide 100–240V AC Input Range

The VPS-6 supports a wide 100–240V AC input range at 50/60Hz, allowing it to adapt automatically to different mains voltage environments around the world. This makes the power supply suitable for musicians who perform, tour, or travel internationally.

The wide input range also provides convenient compatibility across different regional power systems without requiring a separate voltage converter.

Compact Full-Metal Construction

The VPS-6 features a full-metal aluminum chassis designed to provide durability while maintaining a compact footprint. Its metal construction is well suited to the demands of pedalboard use, while the enclosure design provides effective heat dissipation for stable operation.

With dimensions of 158mm x 98mm x 32mm and a weight of approximately 455g, the VPS-6 provides substantial power capacity without taking up excessive pedalboard space.

Ideal for Modern Pedalboards

The Valeton VPS-6 is designed for musicians who use multiple effects pedals and need dependable, isolated power in a compact format. Its combination of high-current 9V outputs, selectable voltage channels, expansion capability, and independent protection makes it suitable for both traditional analog pedalboards and modern digital setups.

It can power compatible guitar and bass effects for live performance, rehearsal, recording, worship, studio work, and touring applications while helping keep your pedalboard organized and free from unnecessary power adapters.

Typical Uses

• Powering guitar effects pedalboards
• Powering bass effects pedalboards
• Supplying high-current digital effects pedals
• Studio and home recording setups
• Live performance and rehearsal rigs
• Touring and mobile pedalboards
• Pedalboards containing both 9V and higher-voltage compatible pedals
• Expanding larger pedalboard power systems through the 24V output
• Reducing unwanted pedalboard power noise and interference

Specifications

• Product Name: Valeton VPS-6 Fully Isolated Effects Pedal Power Supply
• Product Type: Fully Isolated Multi-Output Effects Pedal Power Supply
• Input: 100–240V AC, 50/60Hz
• Isolated Transformers: 6 independent customized transformers
• 9V DC Outputs: 4 x 9V DC, 500mA, center-negative
• Switchable Outputs: 2 x 9V DC, 500mA / 12V DC, 375mA / 18V DC, 250mA, center-negative
• 24V DC Output: 1 x 24V DC, 1500mA, center-positive
• Protection: Independent overload, over-voltage, and short-circuit protection
• Indicators: Individual LED output status indicators
• Noise Reduction: Solid-state capacitors and common-mode inductance filtering
• Expansion: 24V DC output for connecting additional compatible power supplies
• Chassis: Full-metal aluminum
• Dimensions: 158mm (W) x 98mm (D) x 32mm (H)
• Weight: 455g

What's Included

• Valeton VPS-6 Fully Isolated Effects Pedal Power Supply
• Power Cable
• DC Power Cables

Why Choose the Valeton VPS-6?

The Valeton VPS-6 is an excellent choice for musicians who need clean, isolated, and flexible power for a modern effects pedalboard. With four dedicated 9V/500mA outputs, two selectable-voltage outputs, and a high-current 24V expansion output, it provides the versatility needed to power a wide range of compatible pedals and equipment from one compact unit.

Its six independent transformers, advanced noise filtering, individual protection circuits, LED indicators, wide 100–240V input range, and rugged aluminum chassis make the VPS-6 a dependable power solution for studio, rehearsal, live, and touring applications. For players building a sophisticated pedalboard and looking for reliable isolated power with room to expand, the VPS-6 offers a practical and professional solution.
