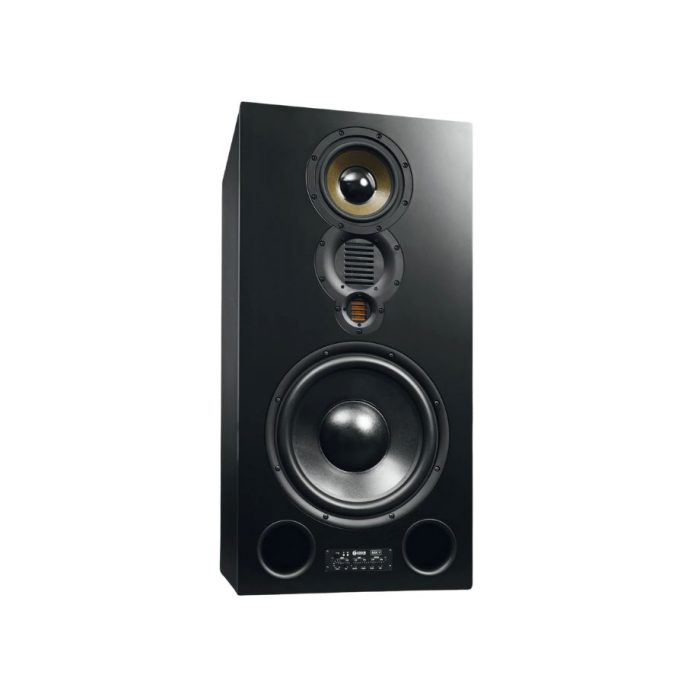

ADAM Audio S5X-V Active 4-Way Main Monitor
Brand
ADAM
The ADAM Audio S5X-V is a reference-grade 4-way vertical main monitor from the high-end SX-Series. Featuring a 12" HexaCone woofer, a 7.5" bass-midrange driver, and both X-ART midrange and tweeter units, it delivers 1280W of total power and a sub-bass reaching 25Hz. It is engineered for precision and spatial representation in elite recording and mastering facilities in Dubai and the GCC.
ADAM Audio S5X-V: Vertical Main Monitoring at the Highest Level
The ADAM Audio S5X-V is a high-performance 4-way vertical main monitor engineered for medium to large control rooms where precision, power, and spatial representation are paramount. As a pinnacle of the SX-Series, the S5X-V combines ADAM’s legendary ribbon technology with high-excursion HexaCone drivers to create a monitor that handles massive dynamic peaks with clinical accuracy. For premier UAE facilities, this vertical powerhouse offers an uncompromising reference system for elite music production and broadcast.
Precision 4-Way Driver Architecture
The S5X-V utilizes a specialized four-way design to ensure maximum clarity across the entire audible spectrum:
- 12-Inch HexaCone Sub-Woofer: With a 3" voice coil and large cone travel, this driver handles frequencies from 25Hz to 85Hz, delivering "bone-dry" and pulse-accurate sub-bass.
- 7.5-Inch HexaCone Mid-Woofer: Housed in a separately enclosed chamber, this driver covers the 85Hz to 800Hz range, ensuring vocal clarity and transient fidelity in the lower-mid frequencies.
- Handmade X-ART Midrange & Tweeter: Proprietary Berlin-built ribbon units provide 3.5:1 and 4:1 velocity transformation ratios respectively, reproducing high-frequency details up to 50kHz with zero compression and minimal fatigue.
Massive 1250W RMS Power Plant
To deliver an effortless "wall of sound," the S5X-V is powered by a high-efficiency multi-amplifier array:
- Dedicated Amplification: A 500W PWM amplifier drives the 12" woofer, while three separate 250W PWM amplifiers power the mid-woofer, midrange, and tweeter.
- High-Pressure Performance: Capable of achieving a peak SPL of ≥128dB per pair, providing the necessary headroom for the most demanding recording and mastering sessions.
- Acoustically Optimized Vertical Cabinet: Designed to minimize diffractions and floor/ceiling reflections, making it ideal for vertical mounting or flush-mount (Soffit) installations.
The SX Control Panel: Surgical Calibration
Fine-tune your monitoring environment using the comprehensive front-mounted SX panel:
- Elite Gain Management: Features coarse (-20 to +8 dB) and fine (-1.5 to +2 dB) input sensitivity controls for perfect gain staging with high-end consoles.
- In-Room Tuning EQ: Includes an 80Hz boost (0 to +6 dB), high/low shelving filters (±4 dB), and dedicated tweeter gain (±2 dB) for precise acoustic compensation.
- Optional Digital Lossless: Can be upgraded with an AES/EBU digital input to ensure a high-resolution, interference-free signal path.
Technical Specifications
- System Type: 4-Way Vertical Active Main Monitor.
- Drivers: 12" HexaCone Woofer, 7.5" HexaCone Mid-Woofer, X-ART Midrange, X-ART Tweeter.
- Amplification: 1250W Total RMS (500W + 250W + 250W + 250W).
- Frequency Response: 25 Hz – 50 kHz.
- Maximum SPL: ≥128 dB (per pair at 1m).
- Crossover Frequencies: 160 Hz / 800 Hz / 4000 Hz.
- Weight: 44.6 kg (98.3 lbs) per unit.
- Dimensions (HxWxD): 830 mm x 410 mm x 480 mm.
Master your sound with the flagship vertical monitor. Order the ADAM Audio S5X-V from Gigstore today and experience uncompromising main monitoring precision.
