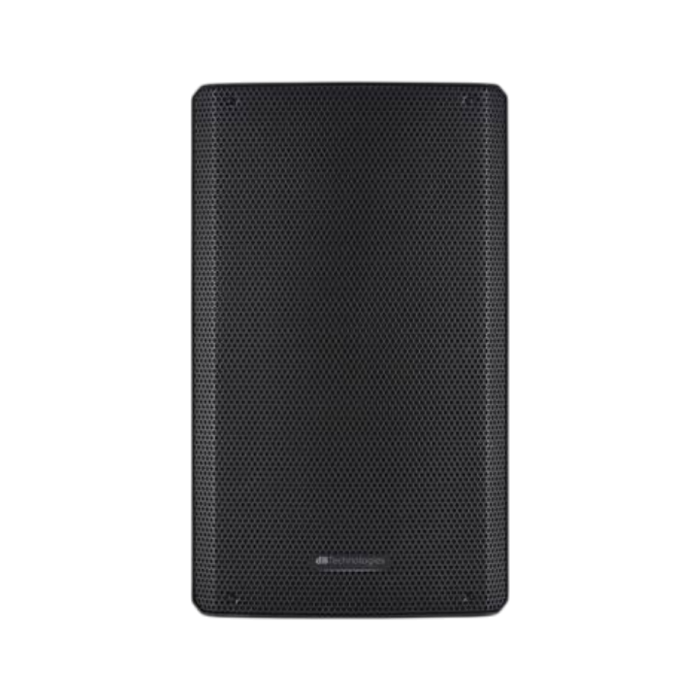

dBTechnologies KL 15 15" 2-Way Active Speaker

Overview

The dBTechnologies KL 15 is a powerful 2-way active loudspeaker designed for live performance, mobile PA systems, small venues, stage monitoring, and professional sound reinforcement. Featuring a 15-inch woofer, 1-inch compression driver, and 800W peak amplification, KL 15 delivers strong low-frequency performance, clear highs, and up to 128dB SPL in a versatile portable cabinet.

Advanced DSP processing with Linear Phase FIR filters helps provide coherent and intelligible sound across the listening area, while built-in presets make it easy to tailor the system for different applications. Three input channels with independent level control, Bluetooth connectivity, flexible output routing, and multiple cabinet positioning options make KL 15 a practical solution for musicians, DJs, presenters, and mobile sound professionals.

Key Features

• 2-way active loudspeaker with 15-inch woofer and 1-inch compression driver
• 800W peak amplification with Class D LF and Class AB HF amplifier sections
• Maximum SPL of 128dB
• Frequency response of 48Hz–18kHz at -10dB
• 90° × 60° horizontal and vertical dispersion
• Advanced 20/56-bit DSP processing
• Linear Phase FIR filters for coherent and intelligible sound
• Playback, Flat, Bass Boost, and Wedge DSP presets
• Three input channels with independent level control
• Balanced XLR/6.3mm combo microphone/line input on Channel 1
• Balanced XLR/TRS line input on Channel 2
• Bluetooth audio input on Channel 3
• Balanced XLR-M LINK/MIX output for additional speakers or mixers
• Three integrated handles for easier transport
• 36mm pole mount with 0° and 7.5° positioning options
• 45° monitor angle for stage use
• Polypropylene cabinet with full front grille
• Soft protective cover with dedicated cable storage pocket included

Powerful 15-Inch Sound

The KL 15 combines a 15-inch low-frequency driver with a 2.5-inch voice coil and a 1-inch high-frequency compression driver with a 1.35-inch voice coil. The two-way configuration is designed to provide powerful bass response while maintaining clear and detailed high frequencies for music, speech, and live performance.

With an 800W peak amplifier and maximum SPL of 128dB, KL 15 provides the output required for demanding live applications while remaining suitable for portable sound systems.

Advanced DSP with Linear Phase FIR Filters

KL 15 uses advanced DSP processing with Linear Phase FIR filters to help maintain a coherent phase response and consistent sound across different listening positions. This processing contributes to the system's clarity and intelligibility while providing practical control over the speaker's tonal response.

Four built-in presets are available: Playback, Flat, Bass Boost, and Wedge. These settings allow the speaker to be quickly adapted for music playback, general sound reinforcement, enhanced low-end performance, or stage-monitor applications.

Flexible Three-Channel Input Section

The KL 15 provides three independent input channels for flexible source connection. Channel 1 features a balanced XLR/6.3mm combo input with selectable microphone or line operation, making it suitable for microphones or line-level equipment. Channel 2 provides a balanced XLR/TRS input for an additional line-level source.

Channel 3 includes a built-in Bluetooth receiver, allowing compatible mobile devices and wireless sources to be connected without an additional cable or external receiver.

LINK and MIX Output

A balanced XLR-M output provides flexible signal distribution to additional equipment. The output can be switched between LINK and MIX operation. LINK sends the signal before the individual level controls, while MIX follows the channel and Main level controls, allowing the KL 15 to feed another loudspeaker or mixer according to the requirements of the setup.

Stage Monitor and Pole-Mount Operation

The cabinet is designed for more than conventional front-facing PA use. Its symmetrical 45° rear inclination allows the KL 15 to be positioned as a stage monitor, while the 36mm pole-mount socket offers two tilt positions of 0° and 7.5° for flexible tripod and stacked configurations.

The 90° × 60° dispersion pattern provides broad horizontal coverage with controlled vertical coverage, making the KL 15 suitable for audiences, performers, and small venue sound reinforcement.

Portable and Practical Cabinet Design

The KL 15 uses a rugged polypropylene enclosure with a full front grille and three integrated handles: two side handles and one top handle. These features make transportation and positioning easier for mobile performers and sound technicians.

The speaker is supplied with a dedicated soft cover featuring a purpose-designed pocket for cable storage, providing additional protection during transport and keeping essential cabling conveniently with the loudspeaker.

Typical Uses

• Live bands and musicians
• DJs and mobile entertainment
• Small venue sound reinforcement
• Stage monitoring
• Portable PA systems
• Speech and presentation applications
• Music playback and event audio
• Installations requiring flexible active loudspeakers
• Use with additional KL speakers or subwoofers

Specifications

• Speaker Type: 2-way active loudspeaker
• Low-Frequency Driver: 15-inch woofer, 2.5-inch voice coil
• High-Frequency Driver: 1-inch compression driver, 1.35-inch voice coil
• Amplifier Technology: Class D LF + Class AB HF
• Peak Power: 800W
• Maximum SPL: 128dB
• Frequency Response: 48Hz–18kHz at -10dB
• Dispersion: 90° × 60°
• Crossover Frequency: 1800Hz, 24dB/octave
• DSP: 20/56-bit
• A/D Conversion: 24-bit/48kHz
• DSP Presets: Playback, Flat, Bass Boost, Wedge
• Limiter: Peak, RMS, Thermal
• DSP Processing: Linear Phase FIR Filters
• Channel 1: Balanced XLR/6.3mm combo mic/line input
• Channel 2: Balanced XLR/TRS input
• Channel 3: Bluetooth receiver
• Signal Output: XLR-M, LINK/MIX selectable
• Cabinet Material: Polypropylene
• Handles: 3 integrated handles
• Monitor Angle: 45°
• Pole Mount: 36mm, 0° and 7.5° positions
• Width: 430mm
• Height: 722mm
• Depth: 402mm
• Weight: 19.3kg

What's Included

• dBTechnologies KL 15 active loudspeaker
• Soft protective cover with cable storage pocket
• VDE mains power cable
• Quick-start user manual
• Warranty documentation

Why Choose the dBTechnologies KL 15?

The dBTechnologies KL 15 combines powerful 15-inch low-frequency performance, 800W peak amplification, advanced DSP processing, Bluetooth connectivity, and flexible input and output routing in a portable cabinet. Its monitor and pole-mount configurations, included protective cover, and practical three-channel input design make it a versatile choice for live musicians, DJs, mobile PA users, and small venue sound reinforcement.
