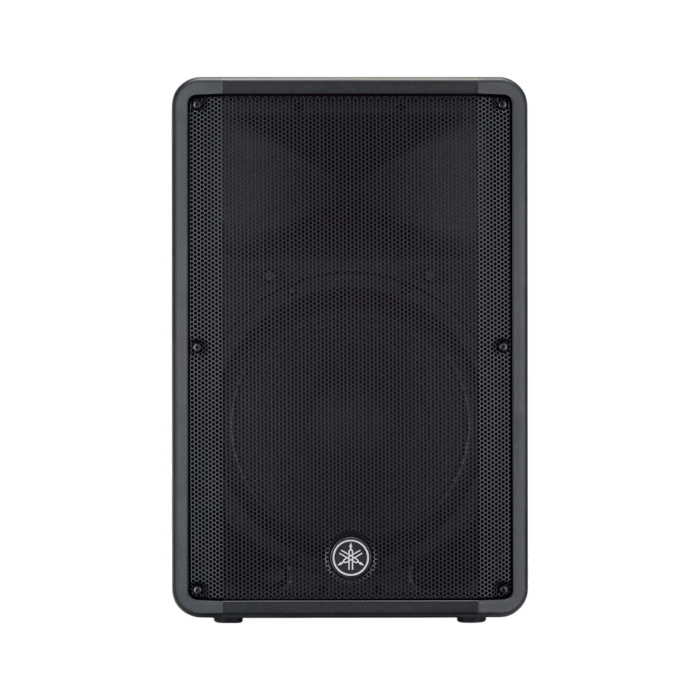

Yamaha CBR15 15" Passive PA Speaker
Brand
YAMAHA
The Yamaha CBR15 Passive Speaker is a high-performance 15-inch 2-way bass-reflex loudspeaker engineered to deliver powerful, clear, and reliable sound reinforcement for live performances, DJs, houses of worship, schools, rehearsal spaces, and portable PA systems. Combining Yamaha's renowned acoustic engineering with a lightweight yet durable enclosure, the CBR15 offers impressive output, excellent speech intelligibility, and deep bass response for a wide range of professional audio applications.
Featuring a 15-inch ferrite woofer, 1.4-inch compression driver, 250W RMS / 1000W Peak power handling, and a 90° × 60° constant-directivity horn, the CBR15 provides balanced full-range sound with wide coverage. Its rugged plastic enclosure supports both front-of-house and floor monitor configurations, while multiple mounting points and a 35 mm pole socket make installation quick and versatile.
Overview
The Yamaha CBR15 Passive Speaker is a high-performance 15-inch passive loudspeaker designed to deliver powerful, clear sound for live performances, DJ events, public speaking, rehearsals, and installed sound systems. Combining Yamaha's renowned speaker engineering with a lightweight yet rugged enclosure, the CBR15 offers impressive output, balanced frequency response, and exceptional reliability for a wide range of professional audio applications.
Featuring a custom 15-inch low-frequency driver and a 2-inch high-frequency compression driver, the CBR15 provides deep bass, articulate midrange, and crisp high frequencies. Its versatile enclosure design allows for front-of-house, stage monitor, or permanent installation use, making it an ideal solution for musicians, venues, rental companies, and AV professionals.
Key Features
- 15-inch two-way passive loudspeaker
- 350 W continuous power handling
- 700 W program power
- Maximum 1400 W peak power handling
- 15-inch custom low-frequency driver
- 2-inch high-frequency compression driver
- Wide frequency response from 46 Hz to 20 kHz
- Maximum SPL of 126 dB
- 90° × 60° constant directivity horn
- Lightweight, durable plastic enclosure
- Pole mount socket and monitor wedge design
- Speakon and 1/4-inch phone jack inputs
Powerful and Balanced Sound
The CBR15 delivers strong low-frequency performance and clear high-frequency reproduction, making it suitable for live music, speech reinforcement, DJs, and event production. Its carefully tuned crossover ensures smooth and natural sound across the entire frequency range.
Flexible Installation and Stage Use
The cabinet features an ergonomic design that supports both pole-mounted front-of-house applications and floor monitoring. Integrated rigging points also make it suitable for permanent installation in performance venues and houses of worship.
Built for Reliability
Constructed with a rugged, lightweight enclosure and durable steel grille, the CBR15 is designed to withstand the demands of regular transport, touring, and professional use while maintaining consistent acoustic performance.
Specifications
- Model: CBR15
- Type: Two-Way Passive Speaker
- Low-Frequency Driver: 15-inch Cone Woofer
- High-Frequency Driver: 2-inch Compression Driver
- Frequency Range (-10 dB): 46 Hz – 20 kHz
- Nominal Coverage: 90° Horizontal × 60° Vertical
- Continuous Power Handling: 350 W
- Program Power Handling: 700 W
- Peak Power Handling: 1400 W
- Maximum SPL: 126 dB
- Nominal Impedance: 8 Ω
- Input Connectors: 2 × SpeakON NL4, 2 × 1/4-inch Phone Jacks
- Pole Socket: 35 mm
- Dimensions (W × H × D): Approx. 455 × 700 × 378 mm
- Weight: Approx. 17.7 kg
What's Included
- Yamaha CBR15 Passive Speaker
- User Documentation
Why Choose the Yamaha CBR15?
The Yamaha CBR15 combines powerful output, accurate sound reproduction, and rugged construction in a lightweight, versatile cabinet. Whether you're performing live, running a mobile DJ setup, or installing a professional PA system, the CBR15 delivers the reliability and audio performance expected from Yamaha professional loudspeakers.
