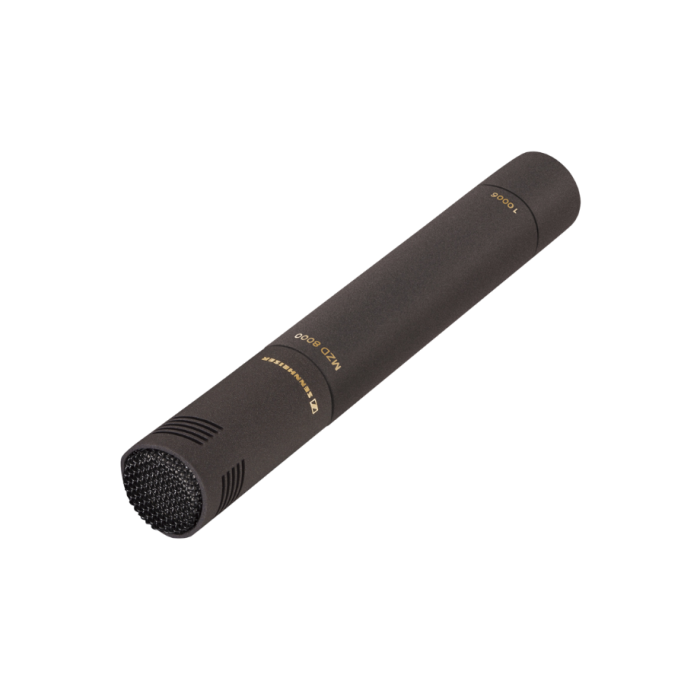

Sennheiser MZD 8000 Digital Module for MKH 8000 Series Microphones

Sennheiser MZD 8000 Digital Module for MKH 8000 Series Microphones

The Sennheiser MZD 8000 is a professional digital module developed specifically for the Sennheiser MKH 8000 Series RF condenser microphones. Replacing the standard XLR output module, the MZD 8000 converts the microphone's analogue signal directly into a high-resolution digital signal immediately behind the microphone capsule. By performing the A/D conversion at the source, the module preserves the exceptional clarity, warmth, and transparency of the MKH 8000 Series while minimizing cable-related signal degradation, electromagnetic interference, and conversion losses.

Designed for professional broadcast, film production, television, music recording, immersive audio, and location sound applications, the MZD 8000 combines a premium microphone preamplifier with a studio-grade 24-bit analogue-to-digital converter, delivering pristine digital audio via the AES42 standard. Its compact design integrates seamlessly with compatible MKH 8000 microphones while maintaining the modular flexibility that defines the MKH 8000 Series.

Digital Conversion at the Microphone Head

Unlike conventional recording systems where analogue signals travel through cables before reaching an external preamplifier or audio interface, the MZD 8000 performs digital conversion immediately after the microphone capsule. This architecture significantly reduces susceptibility to signal loss, interference, and degradation, ensuring that the original sonic characteristics of the microphone are accurately preserved throughout the recording chain.

The result is exceptionally clean digital audio that maintains the detailed transient response, extended frequency range, and low-noise performance for which the MKH 8000 Series is renowned.

Professional 24-Bit Digital Audio Performance

The integrated digital converter supports multiple professional sampling frequencies, making the MZD 8000 suitable for virtually every modern recording, broadcast, and production workflow. Whether capturing dialogue, orchestral performances, sound effects, or studio recordings, the module provides the flexibility required for demanding production environments.

• 24-bit Delta-Sigma analogue-to-digital conversion.
• Sampling rates from 44.1 kHz up to 192 kHz.
• Wide dynamic range of 115 dB.
• AES42 digital microphone output.
• Designed for professional digital recording workflows.

Integrated DSP Functions

The MZD 8000 incorporates remotely controllable digital signal processing functions that provide additional flexibility during professional operation. These functions can be controlled remotely through compatible AES42 equipment operating in Mode 2, allowing engineers to configure microphone settings without direct physical access.

• Remote-controlled low-cut filter.
• Remote-controlled attenuation.
• Remote-controlled limiter.
• External synchronization via AES42 Mode 2.

Designed for the MKH 8000 Series

The MZD 8000 is engineered specifically for the modular MKH 8000 microphone system. It replaces the analogue XLR module by simply screwing onto the compatible microphone head, transforming the microphone into a professional digital recording solution without altering its renowned acoustic performance.

Its compact dimensions also maintain compatibility with the extensive range of MKH 8000 accessories, allowing users to configure complete recording systems for studio, broadcast, film, and location sound applications.

Key Features

• Digital module designed exclusively for Sennheiser MKH 8000 Series microphones.
• Direct digital conversion immediately behind the microphone capsule.
• 24-bit Delta-Sigma A/D converter.
• 115 dB dynamic range.
• Supports 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates.
• Integrated studio-grade microphone preamplifier.
• AES42 digital microphone output.
• Remote DSP functions including low-cut filter, attenuation, and limiter.
• External synchronization via AES42 Mode 2.
• Compact modular design matching the MKH 8000 Series.
• Nextel® non-reflective black finish.

Technical Specifications

Ideal Applications

• Professional recording studios.
• Film and television production.
• Broadcast and radio studios.
• Location sound recording.
• Classical and orchestral recording.
• Immersive and surround audio production.
• High-resolution digital recording systems.

Why Choose the Sennheiser MZD 8000?

The Sennheiser MZD 8000 transforms compatible MKH 8000 Series microphones into premium digital recording solutions by performing studio-grade analogue-to-digital conversion directly at the microphone. Featuring 24-bit conversion, support for sampling rates up to 192 kHz, AES42 digital output, remote DSP control, and seamless integration with the modular MKH 8000 platform, it delivers exceptional audio quality and workflow flexibility for the most demanding professional recording, broadcast, and production environments.
