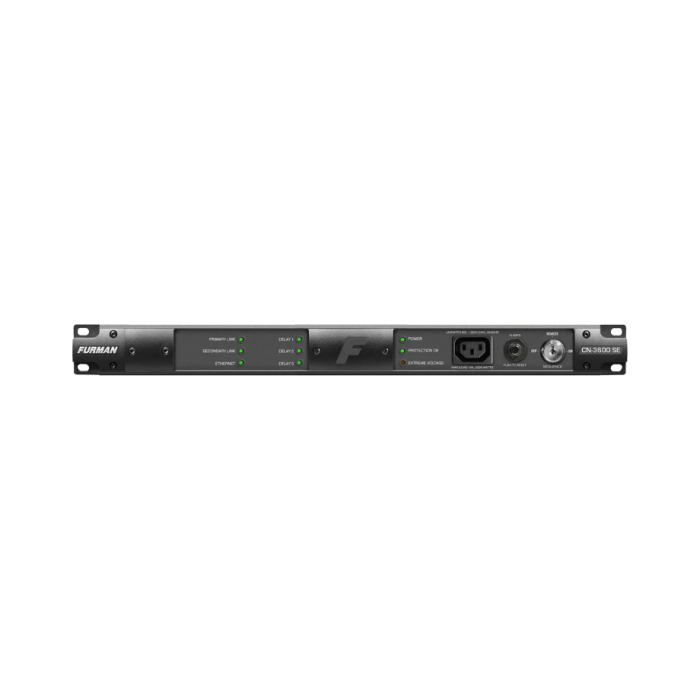

Furman CN-3600S E 16A Contractor Series Smart Power Sequencer & Conditioner (220V-240V)
Brand
Furman Power
Safely manage power startup and shutdown sequences for complex commercial AV systems with the Furman CN-3600S E SmartSequencer. Engineered for 220V–240V power grids with a 16A capacity, this 1RU rackmount unit combines bidirectional SmartSequencing, Series Multi-Stage Surge Protection, Linear Filtering Technology, and RS-232 remote control for professional installations across the UAE.
Empower your commercial AV infrastructure with advanced control capabilities, unmatched surge suppression, and intelligent power distribution using the Furman CN-3600S E 16A SmartSequencing Power Conditioner, available now at Gigstore UAE. Purpose-built for 220V–240V international commercial environments, this 1RU rackmount unit utilizes Furman's revolutionary SmartSequencing technology to safely power complex multi-zone systems on and off with a single push of a button or turn of a key.
Intelligent SmartSequencing and Comprehensive Control
Large-scale audio, video, and control installations require precise power-up routines to prevent damaging popping, blown speakers, and massive inrush current spikes. The CN-3600S E features bidirectional communications via a current loop, allowing a primary unit to seamlessly control and sequence multiple secondary units across runs exceeding 1,000 feet. Complete integration is easily achieved via onboard RS-232 ports or an optional Ethernet adapter for full IP-addressability and remote access through the BlueBOLT cloud platform.
Key Features & Technical Specifications
- Current Capacity: 16 Amp rating featuring an integrated thermal circuit breaker for robust commercial overload protection.
- Operating Voltage: 180 to 274 VAC, 50/60Hz, optimized for international utility standards.
- SmartSequencing Technology: Allows safe, bidirectional sequenced power up/down operations to protect sensitive components and eliminate massive startup surges.
- Series Multi-Stage Protection (SMP): Maintenance-free, non-sacrificial surge and spike suppression with zero ground contamination and a 1-nanosecond response time.
- Linear Filtering Technology (LiFT): Broad-spectrum AC noise attenuation (10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz) for pristine audio and video signal clarity.
- Extreme Voltage Shutdown (EVS): Automatically disconnects power if unsafe voltage spikes or sags occur, safeguarding connected gear from catastrophic failure.
- Outlet Configuration: 9 total outlets featuring 1 unswitched front-panel IEC C13 outlet, 1 unswitched rear-panel IEC C13 pair, and 3 sequenced rear-panel IEC C13 pairs controlled by separate relays.
- Control & Integration: Equipped with a 3-position front-panel keyswitch, RS-232 serial interface (DB-9), emergency force-off terminals, and remote trigger inputs.
- Form Factor: Standard 19-inch 1RU rack-mountable heavy-duty steel chassis.
Engineered for Commercial AV and Multi-Zone Systems
Whether you are managing complex corporate presentation rooms in Dubai or large-scale entertainment venues across the UAE, the Furman CN-3600S E delivers the ultimate combination of automated power sequencing, pristine conditioning, and remote management security.
What’s in the Box?
- Furman CN-3600S E SmartSequencing Power Conditioner
- Detachable AC Power Cord (2.5m, IEC C19 Female to Schuko CEE 7/7 Male Plug)
- Keyswitch Keys (1 pair)
- Phoenix Connectors & Rack Mounting Hardware
- User Manual & Documentation
Order the Furman CN-3600S E Online at Gigstore UAE
Upgrade your commercial power distribution with smart management technology. Buy the Furman CN-3600S E SmartSequencing Power Conditioner online from Gigstore UAE today for professional delivery and support across Dubai, Abu Dhabi, and the entire UAE.
