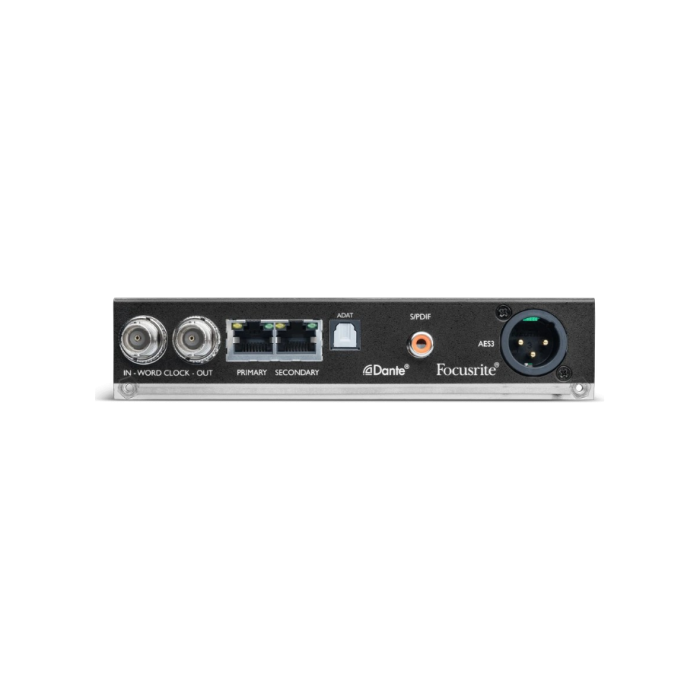

Focusrite ISA ADN2 2-Channel A-D Expansion Card with Dante

Overview

The Focusrite ISA ADN2 is an optional two-channel A-D conversion card designed specifically for the Focusrite ISA One microphone preamp and DI. It adds high-quality digital connectivity to ISA One, allowing its analogue microphone and instrument signals to be integrated directly into Dante audio networks and a wide range of digital recording systems.

With support for Dante, AES3, ADAT, and S/PDIF, ISA ADN2 provides flexible digital routing for studio, broadcast, live sound, and professional recording environments. It supports resolutions up to 24-bit/192kHz and includes Word Clock input and output for reliable synchronization with external digital equipment.

Key Features

• Two-channel high-quality analogue-to-digital conversion for Focusrite ISA One
• Designed specifically for ISA One microphone preamp and DI
• 24-bit/192kHz digital audio support
• Dante connectivity through primary and secondary RJ45 Ethernet ports
• Redundant Dante networking with automatic switchover
• Two-channel AES3 output via XLR
• Two-channel ADAT output via TOSLINK
• Two-channel S/PDIF output via RCA
• Word Clock input and output via BNC
• Internal or Word Clock synchronization
• RedNet Control software for metering and settings
• Dante Controller support for network routing

High-Quality Two-Channel A-D Conversion

ISA ADN2 converts the two analogue channels from the ISA One into high-quality digital audio, allowing the character and performance of the ISA preamp and DI to be carried directly into a digital recording or production environment.

The converter supports sample rates from 44.1kHz through 192kHz at 24-bit resolution, providing the flexibility required for professional recording, mixing, post-production, and high-resolution audio workflows.

Dante Audio Networking

The addition of Dante connectivity allows ISA One to become part of a professional Dante audio network. Two RJ45 network ports provide primary and secondary Dante connections, with redundancy and automatic switchover designed to maintain network audio connectivity in the event of a connection failure.

Once connected to a Dante network, ISA One can send its two digital channels to compatible Focusrite RedNet devices, Red interfaces, and other Dante-enabled equipment from a wide range of manufacturers.

Flexible Digital Outputs

ISA ADN2 provides multiple digital output formats for integration with different studio systems. A two-channel AES3 output is available through XLR, while ADAT is provided through TOSLINK and S/PDIF through RCA. This makes the card suitable for connecting ISA One to compatible interfaces, digital consoles, recorders, and other digital equipment.

Professional Clock Synchronization

Word Clock input and output are provided on BNC connectors for synchronization with external digital systems. The card can use its internal clock or an external Word Clock source, helping ISA One integrate cleanly into larger studio and broadcast clocking environments.

Software Control and Dante Routing

RedNet Control provides access to metering and card settings from a computer, while Dante Controller is used to configure audio routing across the Dante network. This eliminates the need for physical patching when routing ISA One's digital channels within a compatible network.

Designed for ISA One

ISA ADN2 is an internal expansion card specifically designed for the Focusrite ISA One. It adds digital conversion and networking capabilities while allowing ISA One to retain its role as a professional analogue microphone preamp and independent DI solution.

Important: ISA ADN2 is designed for ISA One. It is not compatible with ISA 828 MkII or ISA 428 MkII, which use the separate ISA ADN8 expansion card.

Typical Uses

• Adding Dante connectivity to Focusrite ISA One
• Connecting ISA One directly to Dante audio networks
• High-resolution digital recording up to 24-bit/192kHz
• Connecting ISA One to digital audio interfaces
• Integration with Dante-enabled consoles and networked audio systems
• Digital routing to Focusrite RedNet equipment
• AES3 connections to professional digital equipment
• ADAT expansion and digital interface connectivity
• S/PDIF connection to compatible recording equipment
• Word Clock synchronization in professional studio systems

Specifications

• Compatible Product: Focusrite ISA One
• Conversion: Two-channel analogue-to-digital
• Resolution: 24-bit
• Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, and 192kHz
• Clock Sources: Internal or Word Clock
• Dynamic Range: 121dB A-weighted typical
• Frequency Response: 20Hz–20kHz ±0.1dB
• THD+N: -105dB typical at -1dBFS input
• Dante Channels: 2 output channels
• Dante Network: 2 × RJ45 Ethernet ports
• AES3: 2-channel output via XLR
• ADAT: 2-channel output via TOSLINK
• S/PDIF: 2-channel output via RCA
• Word Clock Input: 1 × BNC, 75Ω
• Word Clock Output: 1 × BNC, 75Ω
• Software: RedNet Control and Dante Controller

What's Included

• Focusrite ISA ADN2 two-channel A-D expansion card
• Installation and user documentation

Note: ISA ADN2 is an internal expansion card for Focusrite ISA One and is not a standalone audio interface or external converter. ISA One is sold separately.

Why Choose the Focusrite ISA ADN2?

The Focusrite ISA ADN2 gives ISA One users a straightforward way to add professional digital connectivity without replacing the classic analogue preamp. With Dante networking, AES3, ADAT, S/PDIF, high-resolution 24-bit/192kHz conversion, and Word Clock synchronization, it provides a flexible bridge between ISA One and modern digital studio and networked audio systems.
