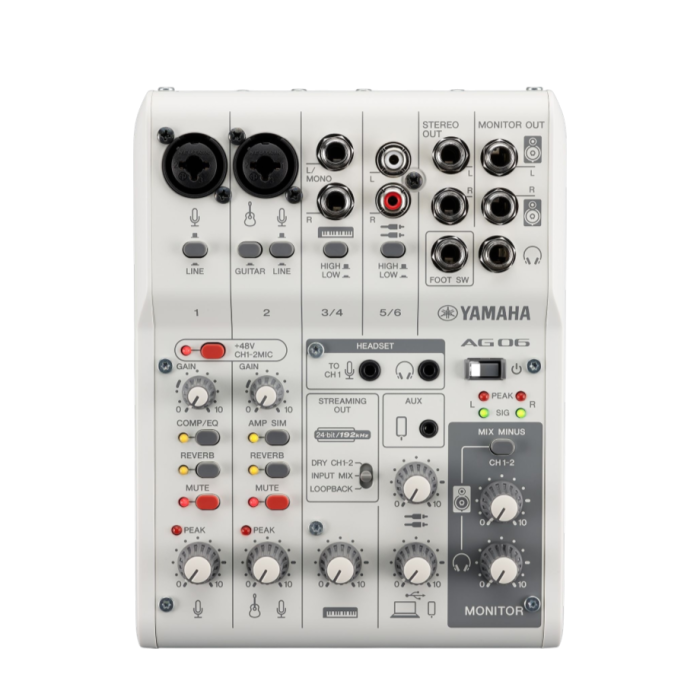

Yamaha AG06MK2 6-Channel Live Streaming Loopback USB Mixer – White

Overview

The Yamaha AG06MK2 6-Channel Live Streaming Loopback Audio USB Mixer in White is a compact mixer and USB audio interface designed for live streaming, podcasting, recording, online communication, gaming, music performance, and content creation. It combines microphone, instrument, line, smartphone, and USB connectivity with intuitive controls and built-in DSP processing.

With two microphone inputs, +48 V phantom power, Hi-Z guitar connectivity, LOOPBACK functionality, 24-bit/192 kHz USB audio, and convenient real-time effects, the AG06MK2 provides a flexible audio solution for creators and musicians working from a desktop or mobile setup.

Key Features

• 6-channel live streaming mixer with integrated USB audio interface.
• White finish for a clean and modern desktop setup.
• Two microphone/line input channels.
• +48 V phantom power for compatible condenser microphones.
• Hi-Z input on CH2 for electric guitar and other high-impedance instruments.
• Two stereo line input channels.
• 4-pole TRRS smartphone input/output.
• USB-C connectivity with up to 24-bit/192 kHz audio.
• LOOPBACK function for combining USB audio with mixer inputs.
• 1-TOUCH COMP/EQ, REVERB, and AMP SIM effects.
• Internal DSP for real-time audio processing.
• Dedicated MUTE button for convenient streaming control.
• AG Controller software for detailed DSP settings.
• OBS Certified for live streaming applications.
• Compact 0.9 kg design for desktop and portable setups.

Two Microphone Inputs

The AG06MK2 provides two mono microphone/line input channels with +48 V phantom power. This allows compatible condenser microphones to be connected for vocals, podcasts, interviews, streaming, presentations, and other recording applications.

Hi-Z Guitar Input

CH2 features a Hi-Z input for direct connection of compatible electric guitars and other high-impedance instruments. The built-in AMP SIM effect can add guitar amplifier character without requiring a separate amplifier for supported applications.

LOOPBACK for Live Streaming

The LOOPBACK function combines audio from USB-connected devices with audio connected to the mixer, allowing music, microphones, instruments, and other audio sources to be sent together to compatible streaming applications.

This makes the AG06MK2 particularly useful for live broadcasts, gaming streams, online presentations, podcasts, and music performances.

Built-In DSP Effects

The AG06MK2 features 1-TOUCH COMP/EQ and REVERB controls, along with an AMP SIM effect for guitar. Yamaha's internal DSP processes these effects in real time, helping provide convenient audio processing during live performance and streaming.

Flexible Connectivity

The mixer includes XLR/TRS combo inputs, stereo line inputs, smartphone connectivity, USB-C, headphone outputs, and monitor outputs. This allows microphones, instruments, mobile devices, computers, and other audio equipment to be integrated into a single compact setup.

High-Resolution USB Audio

The AG06MK2 functions as a USB audio interface and supports up to 24-bit/192 kHz 2-track USB audio recording and playback. This provides a high-resolution digital connection for compatible recording, production, and streaming applications.

Compact Desktop Design

Measuring 152 x 63 x 201 mm and weighing approximately 0.9 kg, the AG06MK2 is designed to fit comfortably on a desktop. Its compact size makes it suitable for home studios, streaming desks, podcast setups, gaming stations, and mobile content-creation systems.

Typical Uses

• Live streaming.
• Podcasting and interviews.
• Gaming and commentary.
• YouTube and social media content creation.
• Online meetings and communication.
• Home recording and music production.
• Live guitar and vocal performance.
• Online teaching and presentations.
• Small music performance setups.
• Mobile audio production and streaming.

Specifications

• Product Type: 6-channel live streaming mixer with USB audio interface
• Model: Yamaha AG06MK2
• Colour: White
• Number of Channels: 6
• Mono Inputs: 2
• CH1 Input: Combo microphone/line input
• CH2 Input: Combo microphone/line/Hi-Z input
• Stereo Line Inputs: 2 stereo channels
• Smartphone I/O: 4-pole TRRS mini input/output
• USB: USB-C, 2-in/2-out USB audio
• USB Audio Resolution: Up to 24-bit/192 kHz
• Phantom Power: +48 V on CH1 and CH2
• DSP Effects: COMP/EQ, REVERB, AMP SIM
• Streaming Functions: LOOPBACK, STREAMING OUT, MIX MINUS MIC
• Monitor Output: 1
• Stereo Output: 1
• Headphone Outputs: PHONES / HEADSET PHONES
• Power Input: USB-C, 5 V DC, 900 mA
• Power Consumption: Maximum 4.5 W
• Dimensions: 152 x 63 x 201 mm (W x H x D)
• Weight: 0.9 kg
• Operating Temperature: 0–40 °C

What's Included

• Yamaha AG06MK2 Live Streaming Mixer - White
• USB 2.0 Cable, 1.5 m
• Quick Guide
• Safety Guide
• WaveLab Cast Download Information
• Cubase AI Download Information

Why Choose the Yamaha AG06MK2?

The Yamaha AG06MK2 combines a versatile mixer and high-resolution USB audio interface in a compact desktop format. Its microphone inputs, phantom power, Hi-Z guitar connection, smartphone I/O, LOOPBACK function, and built-in DSP effects make it suitable for both voice and music applications.

The White finish gives the AG06MK2 a clean appearance, while its intuitive controls and flexible connectivity make it a practical choice for live streaming, podcasting, gaming, recording, online communication, and content creation.
