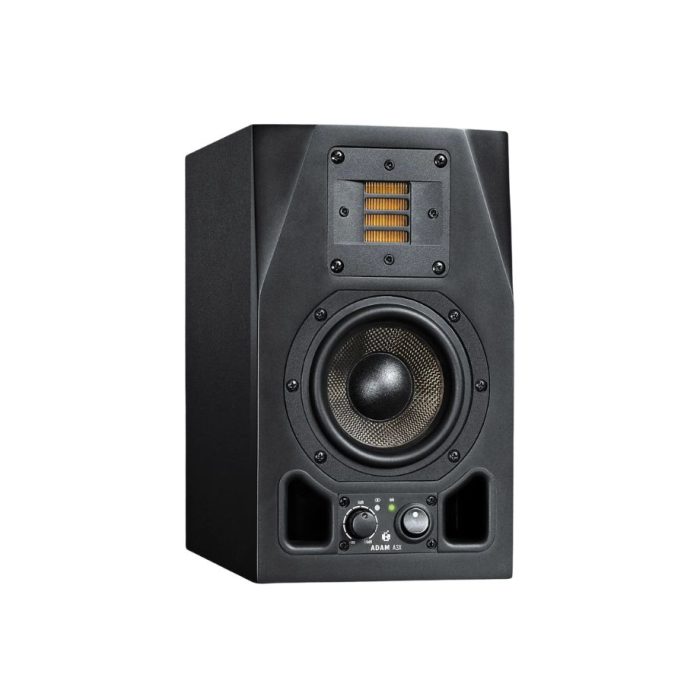

ADAM Audio A3X Studio Monitor

ADAM Audio A3X: The Compact Powerhouse of Professional Monitoring

The ADAM Audio A3X proves that size is no barrier to world-class sound. As the smallest member of the renowned AX-Series, the A3X is engineered for producers, editors, and audiophiles who require surgical precision in limited spaces. Whether you are mixing in a compact studio in Dubai or setting up a high-end desktop workstation in Abu Dhabi, the A3X delivers a transparent soundstage and clinical detail that belies its small dimensions.

Patented X-ART Tweeter and Carbon Fiber Woofer

The A3X utilizes the same proprietary driver technology found in ADAM’s flagship monitors to ensure a neutral, accurate response:

• X-ART Ribbon Tweeter: Handmade in Berlin, this tweeter moves air four times faster than traditional domes, reproducing harmonic overtones up to 50kHz with zero compression.
• Carbon Fiber Mid-Woofer: The 4.5-inch driver is constructed from lightweight yet ultra-stiff carbon fiber, preventing diaphragm deformation and ensuring a "bone-dry" and coloring-free low end.
• Dual Front-Firing Ports: Optimized for small rooms, the front ports allow for placement closer to walls without the turbulent bass buildup associated with rear-ported designs.

Exclusive Stereolink Technology

Designed specifically for modern desktop workflows, the A3X features Stereolink. This system uses a pair of additional RCA connections to link the speakers, allowing you to control the overall volume of the entire system using the gain knob on just one monitor. This "master/slave" configuration is perfect for producers working without a dedicated hardware mixer or monitor controller.

Bi-Amplified Power and Precision Tuning

Each A3X is bi-amplified, featuring two dedicated 25W RMS Class A/B amplifiers for the tweeter and woofer respectively. This ensures maximum headroom and ultra-low distortion at high output levels. For further room correction, the rear panel includes a Tweeter Gain control (±4dB) to fine-tune the high-frequency response based on your room's acoustics.

Technical Specifications

• Tweeter: X-ART Accelerated Ribbon Tweeter (4 inch² diaphragm area).
• Woofer: 4.5" Carbon Fiber Basket Woofer.
• Amplification: 50W RMS Total (25W LF + 25W HF).
• Frequency Response: 60 Hz – 50 kHz.
• Maximum SPL: ≥106 dB (per pair at 1m).
• Crossover Frequency: 2.8 kHz.
• Input Connectors: Balanced XLR, Unbalanced RCA, RCA Stereolink.
• Dimensions (HxWxD): 252 mm x 150 mm x 185 mm.
• Weight: 4.6 kg (10.1 lbs) per unit.

Professional sound in a desktop-friendly format. Order the ADAM Audio A3X from Gigstore today and upgrade your monitoring accuracy instantly.
