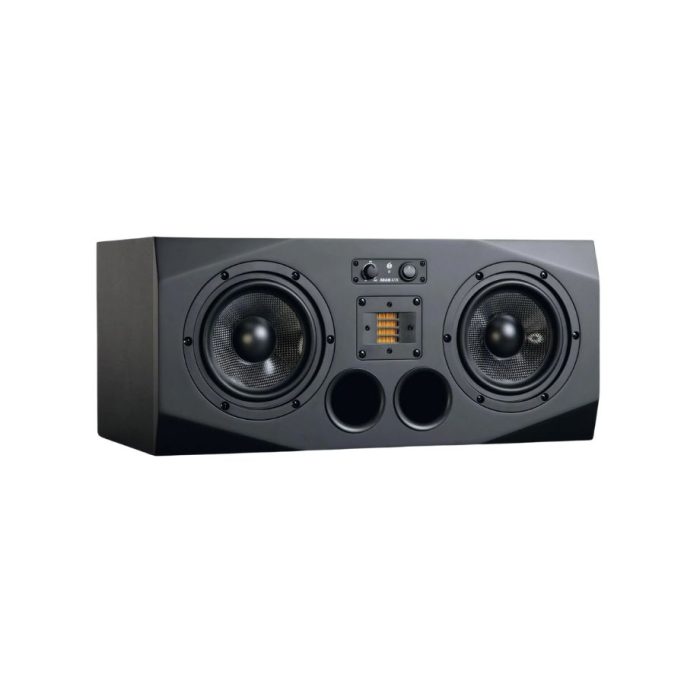

ADAM Audio A77XA Active Near-/Midfield Monitor

ADAM Audio A77X: The High-SPL Horizontal Benchmark

The ADAM Audio A77X is a professional 2.5-way monitor that has earned its place on the console bridges of world-class studios. Specifically designed for horizontal orientation, the A77X delivers the raw power and wide soundstage of a midfield monitor while maintaining the surgical detail of the AX-Series. For producers and engineers in the UAE working on cinematic scores, electronic music, or high-density mixes, the A77X offers an effortless, "bone-dry" low-end and a fatigue-free high-frequency response.

Revolutionary 2.5-Way Driver Integration

The A77X stands apart with its sophisticated triple-driver array, utilizing a unique crossover strategy to eliminate phase cancellation in the critical midrange:

• Dual 7-Inch Woofers: Constructed from ultra-rigid Carbon/Rohacell/Glass fiber. Both woofers operate together from 38Hz to 400Hz for massive bass impact. Above 400Hz, one woofer fades out while the second continues to the 3kHz crossover point, ensuring clinical midrange clarity.
• Handmade X-ART Tweeter: Berlin-built with a 4:1 velocity transformation ratio, this ribbon tweeter reproduces high-frequency nuances up to 50kHz with lightning-fast transient speed.
• Tri-Amplified Power: Features two 100W RMS PWM amplifiers for the woofers and a dedicated 50W Class A/B amp for the tweeter, providing a combined 250W of continuous power per unit.

Optimized Stereo Imaging and Wide Soundstage

Due to its symmetrical driver placement and horizontal build, the A77X creates an exceptionally wide "sweet spot." This makes it ideal for larger workstations where multiple people need an accurate reference. The front-panel dual ports are optimized to minimize air turbulence, allowing the monitors to be placed near walls without losing low-frequency definition.

Precision Control and Professional I/O

The A77X is equipped with professional tuning options to adapt to any studio environment in Dubai or Riyadh:

• Room Adaptation: High-shelf (>5kHz) and Low-shelf (<300Hz) filters with ±6dB of adjustment, plus a tweeter gain control of ±4dB.
• Front-Panel Ease: Includes a front-mounted power switch and volume control that retains its setting independently from the power state.
• Symmetrical Pairs: Available in matched "Left" and "Right" versions to ensure perfect phase alignment and image symmetry.

Technical Specifications

• Tweeter: Handmade X-ART Accelerated Ribbon Tweeter (4 inch² diaphragm).
• Woofers: 2 x 7" Carbon/Rohacell/Glass Fiber Composite.
• Amplification: 250W RMS Total (100W + 100W LF, 50W HF).
• Frequency Response: 38 Hz – 50 kHz.
• Maximum SPL: ≥122 dB (per pair at 1m).
• Crossover Frequencies: 400 Hz / 3 kHz.
• Inputs: Balanced XLR, Unbalanced RCA.
• Dimensions (HxWxD): 235 mm x 530 mm x 280 mm.
• Weight: 12.8 kg (28.2 lbs) per unit.

Experience wide-screen audio authority. Order the ADAM Audio A77X from Gigstore today and elevate your monitoring to the professional standard.
