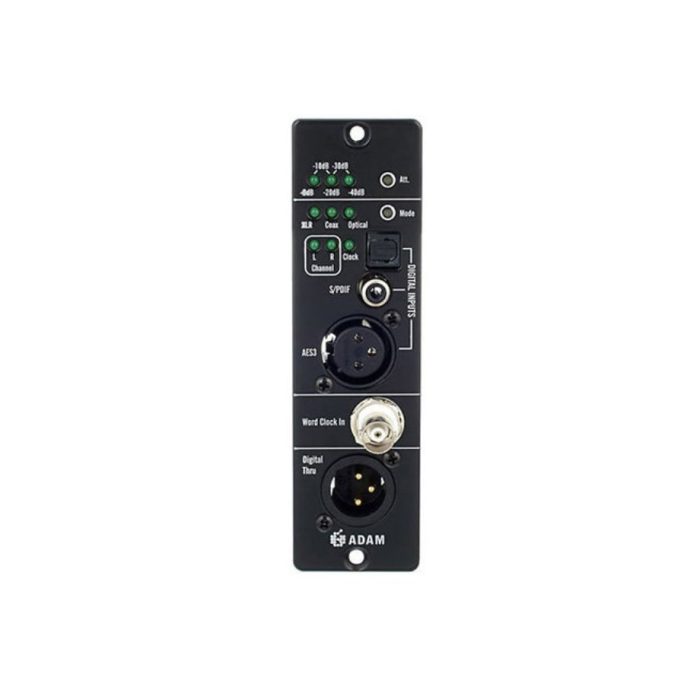

ADAM Audio DA-SX D/A Converter Module

ADAM Audio DA-SX: High-Resolution Digital Integration for SX-Series Monitors

The ADAM Audio DA-SX is a premium D/A converter plug-in card that transforms your SX-Series monitors into a high-end digital monitoring system. By bypassing the analog input stage of your speakers and feeding them a direct digital signal, you ensure the highest possible fidelity with minimal signal degradation. Designed to fit perfectly into the expansion slot of the S2X, S3X, S4X, and S5X models, the DA-SX is an essential upgrade for modern digital production environments in Dubai and across the UAE.

Uncompromised 24-bit/192kHz Conversion

The DA-SX is built to the highest technical standards, ensuring that your digital audio is translated into the physical world with absolute accuracy. Key features of the conversion technology include:

• High-Resolution Support: Full compatibility with sampling rates up to 192kHz at 24-bit depth, providing the dynamic range necessary for high-definition audio.
• Exceptional Signal-to-Noise Ratio: Boasting a S/N ratio of ≥114dB, the DA-SX ensures a black background and ultra-low noise floor for critical listening.
• Ultra-Low Distortion: With a THD+N of ≤0.0006%, the converter preserves the natural transients and harmonic detail that the X-ART tweeter is designed to reproduce.

Versatile Connectivity and Synchronization

To integrate seamlessly into a professional studio infrastructure, the DA-SX offers multiple input and output options:

• Digital Inputs: Supports professional AES/EBU via XLR, as well as S/PDIF via RCA or Optical (Toslink), allowing connection to a wide range of audio interfaces and consoles.
• Word Clock Input: Includes a dedicated BNC Word Clock input for external synchronization, ensuring jitter-free performance in complex multi-device setups.
• Signal Chaining: Features an additional XLR digital output, enabling you to chain the digital signal from one monitor to the other for a perfect stereo or surround configuration.

Seamless SX-Series Integration

Installation is straightforward, with the card sliding directly into the "Optional" slot on the rear of your SX monitor. Once installed, the monitor's front-panel LEDs provide immediate status feedback regarding the digital input lock and channel assignment. This modular approach allows UAE engineers to upgrade their existing analog ADAM monitors to a fully digital reference system without the need for additional rack gear.

Technical Specifications

• Compatibility: ADAM SX-Series (S2X, S3X-H, S3X-V, S4X-H, S4X-V, S5X-H, S5X-V).
• Resolution/Sample Rate: Up to 24-bit / 192kHz.
• Digital Inputs: AES/EBU (XLR), S/PDIF (RCA and Toslink).
• Synchronization: Word Clock (BNC).
• THD+N: ≤ -104dB (at all sampling rates).
• Signal-to-Noise Ratio: ≥ 114dB.
• Digital Output: XLR (for signal chaining).

Preserve your digital integrity. Order the ADAM Audio DA-SX Converter from Gigstore today and experience the ultimate in uncolored, high-resolution monitoring.
