Dangerous Music BAX EQ Stereo Analog Mastering Equalizer Baxandall Tone Control System

Dangerous Music BAX EQ Stereo Shelving Equalizer

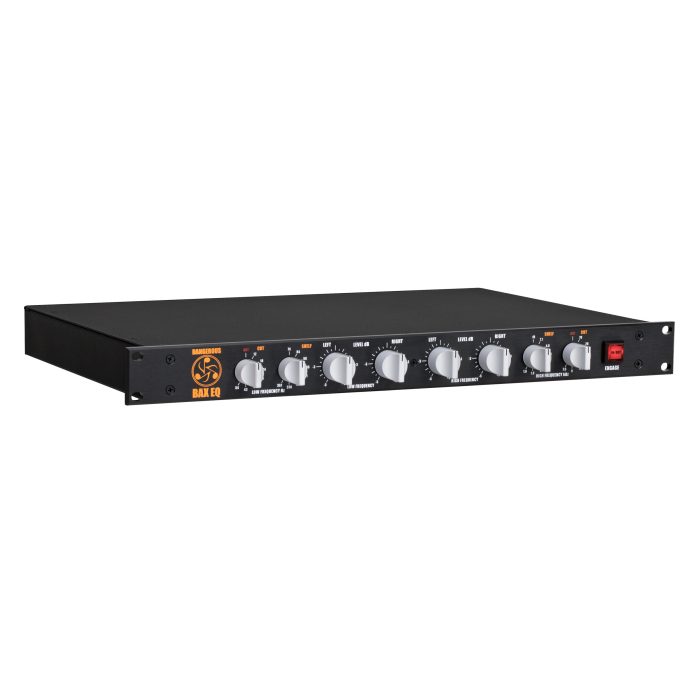

The Dangerous Music BAX EQ is a mastering-grade stereo shelving equalizer based on the classic Baxandall EQ curve, originally developed for high-fidelity audio systems. Designed for professional mixing, mastering, and tracking environments, it delivers wide, musical tone shaping with exceptional transparency and minimal phase distortion.

Musical Baxandall Shelving Design

At its core, the BAX EQ uses gentle, wide-band Baxandall shelving curves to shape bass and treble across multiple octaves. Unlike surgical parametric EQs, it is designed for broad tonal enhancement, making mixes sound more open, balanced, and natural without introducing harshness or coloration.

Ultra-Transparent Signal Path

The EQ is engineered for mastering-grade transparency, using high-end analog components and carefully controlled circuitry to maintain phase coherence. Even large EQ moves preserve the original character of the source while improving clarity and depth.

High-Pass and Low-Pass Filtering System

Integrated filter controls allow precise removal of unwanted extreme frequencies. The high-pass filter eliminates infrasonic rumble below the audible range, while the low-pass filter reduces ultrasonic content that can cause harshness or digital conversion artifacts. These filters also interact creatively with the shelving EQ for advanced tonal shaping.

Precision Stepped Controls

All gain and frequency parameters are stepped for accurate recall and repeatability, making it ideal for professional mastering workflows where consistency across sessions is essential. Adjustments can be precisely matched between stereo channels for balanced imaging.

Mastering and Mix Bus Optimization

The BAX EQ is commonly used as a final polish tool on mix buses and mastering chains. It is especially valued for its ability to enhance low-end weight and high-frequency air without introducing harsh peaks or phase distortion.

High-End Analog Design Philosophy

Built by Dangerous Music, the unit reflects a minimalist, high-fidelity design philosophy focused on transparency and musicality. It is often left permanently inserted in mastering chains as a subtle “sweetening” stage.

Key Features

• Stereo Baxandall shelving EQ for mastering and mixing
• Broad, musical frequency curves spanning multiple octaves
• Ultra-transparent analog signal path with minimal phase shift
• Stepped gain controls for precise recall and matching
• 7-position high-pass and low-pass filters on relay switching
• 8 selectable frequency points for high and low shelves
• 0.5 dB step resolution for fine tonal adjustments
• Designed for mix bus, mastering, and tracking applications

Specifications

• Type: Stereo analog shelving equalizer
• Frequency Response: 10 Hz – 20 kHz (±0.1 dB), up to 80 kHz extended
• THD+N: < 0.002%
• IMD: < 0.003%
• Maximum Level: > +28 dBu
• Crosstalk: > 105 dB
• Input Impedance: 25 kΩ
• Output Impedance: 50 Ω
• Format: 2U rackmount unit

Ideal For

The Dangerous Music BAX EQ is ideal for mastering engineers, mix engineers, and high-end studio professionals who need subtle, musical tonal shaping with absolute transparency and precise analog control for final mix enhancement.
