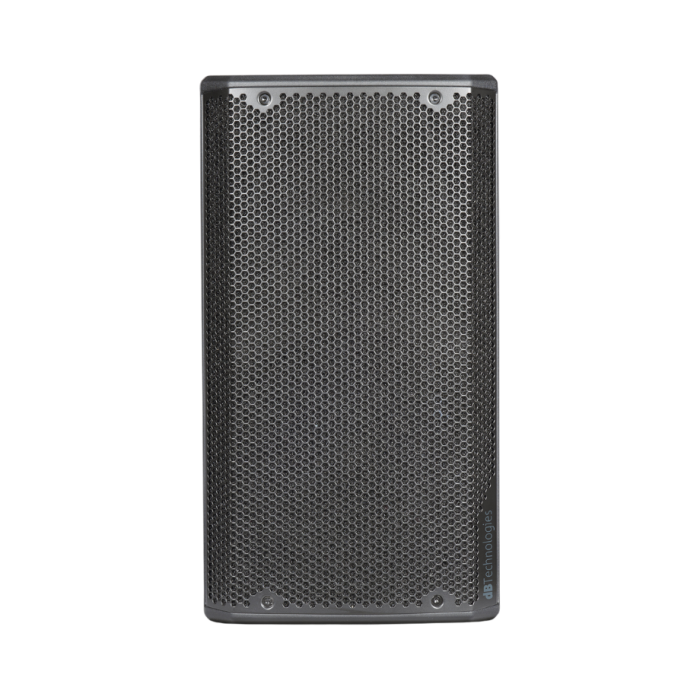

dBTechnologies Opera 10 10" 2-Way Active PA Speaker
Brand
D B TECHNOLOGIES
The dBTechnologies Opera 10 is a 2-way active PA speaker designed to deliver pristine sound pressure, intelligibility, and coverage for live music, speech, and playback applications. Combining a powerful 600W RMS Class-D Digipro G3 amplifier with an advanced 56-bit DSP running Linear Phase FIR filters, it produces coherent, distortion-free audio performance across the entire listening area.
The dBTechnologies Opera 10 is a versatile 2-way active speaker that combines cutting-edge DSP processing, advanced acoustic design, and high-efficiency amplification to deliver professional-grade sound reinforcement for live music, speech, and mobile PA applications.
Advanced Acoustic Design & Asymmetric Horn
Equipped with a custom 10” woofer and a 1” compression driver featuring a 1.4” voice coil, the Opera 10 is designed to deliver punchy low-end response and sparkling highs. The speaker utilizes an advanced asymmetrical horn design, which ensures wide horizontal dispersion and narrow vertical coverage for optimal sound directivity across the entire audience area.
Asymmetrical Cut Class-D Amplification & DSP
Powered by a high-efficiency 600 W peak Class-D amplifier featuring SMPS technology, the system delivers an impressive maximum SPL of up to 128 dB. An integrated 56-bit DSP with advanced FIR filters allows the speaker to achieve linear phase response, guaranteeing clear, intelligible audio and smooth performance across all frequencies.
Rugged Multi-Functional Enclosure
Housed in a sturdy, lightweight polypropylene cabinet featuring a stylish full grille, the Opera 10 is built for heavy touring and portable use. It includes an integrated 36 mm pole mount cup and a 45-degree angle design on the back, allowing it to function seamlessly as both a front-of-house main speaker and a low-profile stage monitor.
Technical Specifications
| Speaker Type: | 2-Way Active Speaker |
| Usable Bandwidth [-10 dB]: | 58 – 20,000 Hz |
| Frequency Response [-3 dB]: | 70 – 19,600 Hz |
| Max SPL: | 128 dB |
| Low-Frequency Transducer: | 10” (2” Voice Coil) |
| High-Frequency Transducer: | 1” Compression Driver (1.4” Voice Coil) |
| Directivity (H x V): | 100° (80° up / 120° down) x 85° (+25° / -60°) |
| Horn Type: | Asymmetrical Horn |
| Amplifier Technology: | Class-D (SMPS) |
| Peak Power: | 600 W |
| Processor & DSP: | DSP 56-bit / 24-bit 48 kHz (FIR Filters) |
| Signal Inputs / Outputs: | 1x Combo (MIC/LINE), 1x XLR (LINE/AUX) / 1x XLR Male (Link Out) |
| Housing Construction: | Polypropylene PP |
| Stage Monitor Angle: | 45° |
| Dimensions (W x H x D): | 300 mm x 552 mm x 301 mm (11.81” x 21.73” x 11.85”) |
| Weight: | 12.5 kg (27.56 lbs) |
| Brands | D B TECHNOLOGIES |
|---|
