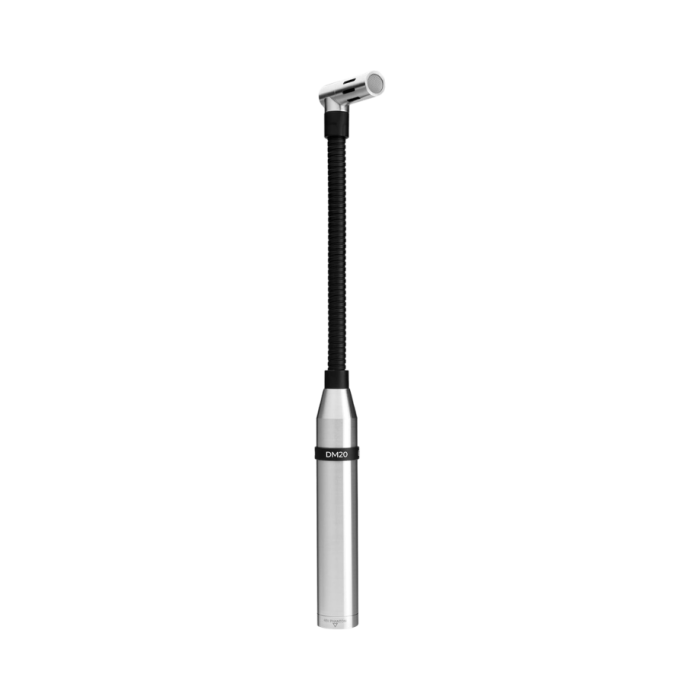

Earthworks DM20 Precision Condenser Snare and Tom Microphone
Brand
Earthworks Audio
Looking to capture punchy, detailed snare and tom sounds without bulky stands or cable clutter? The Earthworks DM20 is a professional cardioid condenser drum microphone featuring a flexible gooseneck and rugged RM1 RimMount for fast, secure attachment directly to your drum rims.
Capture the true impact, punch, and nuance of your drums with the Earthworks DM20 Drum Microphone. Engineered specifically for close-miking snare drums and toms on live stages and in professional recording studios, this high-definition cardioid condenser microphone delivers lightning-fast transient response, massive SPL handling, and exceptional off-axis rejection to eliminate stage bleed.
Why Choose the Earthworks DM20 Drum Microphone?
Traditional dynamic drum mics often smear rapid transients and color the sound of your kit. The Earthworks DM20 breaks the mold by utilizing a precision small-diaphragm condenser capsule with a near-perfect cardioid polar pattern. It delivers a uniform frequency response across all angles, ensuring that every stick strike is rendered with absolute clarity, realism, and depth. Plus, its rugged construction and included RIMFIX rim mount make setup fast, secure, and completely reliable gig after gig.
Key Performance Features
- Lightning-Fast Transient Response: Effortlessly captures the rapid attack of drumsticks and complex ghost notes without lag or distortion.
- High SPL Handling: Safely withstands up to 150 dB SPL, making it robust enough for the heaviest hitters and highest-pressure acoustic environments.
- Rigid Integrated Gooseneck: Features a sturdy, highly adjustable mini gooseneck that holds its exact physical aiming position firmly, even under intense stage vibrations.
- Exceptional Rear Rejection: Near-perfect cardioid polar pattern provides massive attenuation of surrounding cymbals and stage noise for cleaner isolation.
- Rugged Stainless Steel Construction: Built from heavy-duty components designed to survive the harsh demands of touring and live sound reinforcement.
- Includes Earthworks RIMFIX Mount: Comes equipped with a secure, low-profile rim mounting system that clamps effortlessly onto standard drum hoops.
Technical Specifications
| Microphone Type | Small-Diaphragm Condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 20Hz – 30kHz |
| Sensitivity | 10mV/Pa (-40 dBV/Pa) |
| Max Acoustic Input | 150 dB SPL |
| Signal-to-Noise Ratio | 74 dB (A-weighted) |
| Power Requirements | 24–48V Phantom Power, 10mA |
| Output Impedance | 65Ω balanced (between pins 2 & 3) |
| Included Mount | Earthworks RIMFIX Drum Rim Mount |
| Finish | Black |
Ideal Applications
Designed for professional drummers, live audio engineers, and recording studios across Dubai, Abu Dhabi, and the UAE, the Earthworks DM20 transforms snare and tom tracks with studio-grade clarity, natural warmth, and unbeatable road-ready durability.
