Earthworks PM40 Piano Microphone System
Brand
Earthworks Audio
Looking for an invisible, turn-key solution to capture grand piano with full natural detail and zero stage bleed? The Earthworks PM40 PianoMic System is a self-contained, high-definition stereo miking system designed specifically for acoustic grand pianos in studio and live sound reinforcement environments.
Achieve flawless grand piano reproduction, pristine stereo imaging, and total isolation from stage bleed with the Earthworks PM40 PianoMic™ System. Designed to fit directly inside virtually any grand piano while allowing the lid to completely close, this revolutionary high-definition system combines a custom-engineered telescoping mounting bar with two random-incidence omnidirectional condenser microphones.
Why Choose the Earthworks PM40 PianoMic System?
Capturing a grand piano live or in the studio has traditionally involved cumbersome tripod stands, complex positioning guesswork, and severe bleed issues from nearby instruments. The Earthworks PM40 changes everything by spanning neatly across the piano's case. It places pristine, ultra-fast miniature condenser capsules right where they need to be. Offering immense high-SPL handling and zero proximity effect, it delivers a natural, rich, and cohesive piano sound whether the lid is fully open, on the half-stick, or completely closed.
Key Performance Features

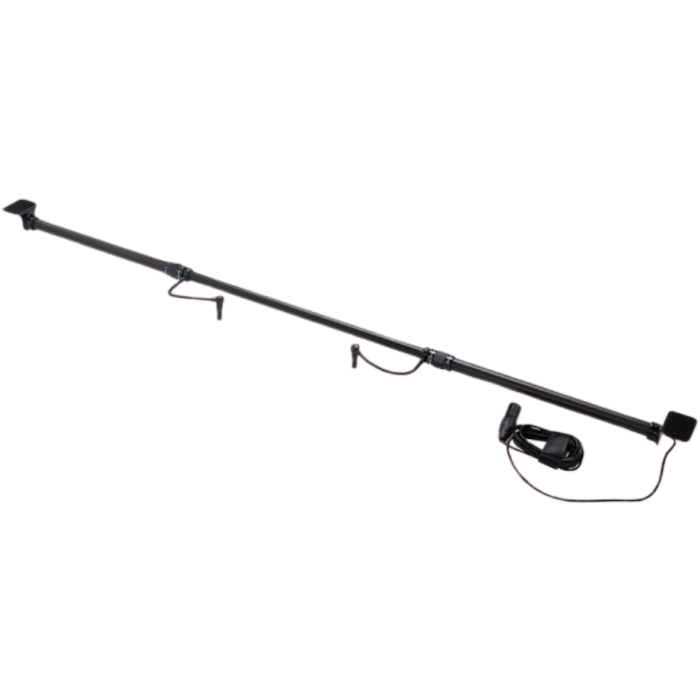

- Innovative Telescoping Mounting Bar: Easily adjusts from 46 to 64 inches to fit securely across almost any grand piano case, maintaining a clean, invisible profile for audiences.
- Random-Incidence Capsule Design: Engineered specifically for internal placement, delivering a smooth, accurate response across a wide sound field.
- Ultra-Wide Frequency Response: Spans from 9Hz up to an astonishing 40kHz, capturing every nuanced harmonic, transient, and rich sub-bass overtone.
- Massive High-SPL Handling: Effortlessly manages sound pressure levels up to 148 dB SPL, allowing heavy, dynamic playing without internal distortion or clipping.
- Exceptional Isolation: Internal mounting drastically minimizes stage bleed and feedback risks in high-volume live performance environments.
- Included Active Electronics Box: Connects via a streamlined cable system to a dedicated dual-channel XLR output box for seamless integration into consoles or stage boxes.
Technical Specifications
| System Type | High-Definition Grand Piano Condenser Microphone System |
|---|---|
| Polar Pattern | Random-Incidence Omnidirectional |
| Frequency Response | 9Hz – 40kHz |
| Sensitivity | 15 mV/Pa (-36 dBV/Pa) |
| Max Acoustic Input | 148 dB SPL |
| Signal-to-Noise Ratio | 20 dB SPL equivalent (A-weighted) |
| Power Requirements | 24–48V Phantom Power, 10mA |
| Output Impedance | 600Ω balanced (between pins 2 & 3) |
| Dimensions & Weight | Bar Length: 46" to 64" adjustable; Weight: 0.75 lbs (Mic assembly), 1.5 lbs (Electronics box) |
Ideal Applications
Engineered for professional recording studios, live concert venues, theatrical stages, and broadcast applications across Dubai, Abu Dhabi, and the UAE, the Earthworks PM40 provides the ultimate streamlined solution for uncompromised grand piano capture in any setting.
| Brands | Earthworks Audio |
|---|
