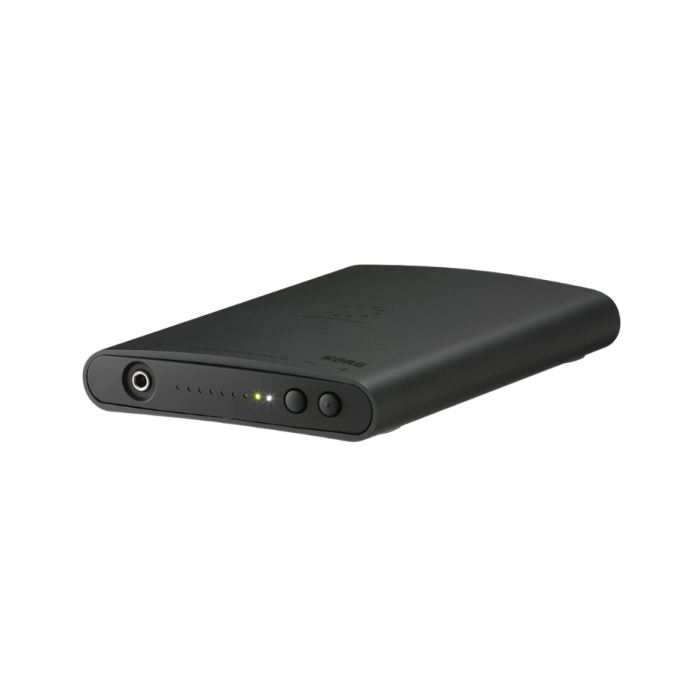

Korg DS-DAC-100m Mobile 1-Bit USB Digital-to-Analog Converter

Korg DS-DAC-100m Mobile 1-Bit USB DAC

The Korg DS-DAC-100m is a premium mobile 1-bit USB Digital-to-Analog Converter (DAC) designed for audiophiles, music enthusiasts, and professional users seeking exceptional high-resolution audio playback from a compact desktop device. Engineered around KORG's expertise in DSD audio technology, the DS-DAC-100m delivers native DSD playback, advanced PCM compatibility, and professional-grade sound reproduction in an elegant, portable form factor.

Optimized for use with KORG AudioGate software, the DS-DAC-100m allows listeners to experience music with remarkable clarity, depth, and dynamic range. Whether used with high-resolution audio libraries, studio monitoring systems, or premium headphones, it provides an immersive listening experience that faithfully reproduces every detail of the original recording.

Native High-Resolution DSD Playback

The DS-DAC-100m is specifically designed for native DSD playback, allowing compatible audio files to be reproduced without unnecessary conversion stages. This preserves the original recording quality and delivers exceptionally natural sound reproduction.

• Native DSD64 (2.8224 MHz) playback support
• Native DSD128 (5.6448 MHz) playback support
• Preserves original recording integrity and detail
• Ideal for high-resolution music libraries and audiophile listening

Comprehensive PCM Audio Support

In addition to DSD playback, the DS-DAC-100m supports a wide range of high-resolution PCM audio formats, making it suitable for virtually any digital music collection.

• PCM playback from 44.1 kHz to 192 kHz
• Supports 16-bit and 24-bit audio formats
• Compatible with standard and high-resolution music files
• Excellent flexibility for mixed audio libraries

Premium Cirrus Logic DAC Architecture

The DS-DAC-100m utilizes a high-performance Cirrus Logic CS4398 digital-to-analog converter, renowned for its exceptional audio reproduction characteristics and low-noise performance.

• Cirrus Logic CS4398 DAC chipset
• Professional-grade audio conversion performance
• Low distortion and excellent dynamic response
• Designed for accurate and transparent sound reproduction

Exceptional Audio Performance

The DS-DAC-100m is engineered to deliver high-fidelity audio performance suitable for critical listening environments.

• Frequency response: 10 Hz – 20 kHz ±1 dB at 44.1/48 kHz sampling rates
• Extended frequency response up to 40 kHz
• Signal-to-noise ratio: 105 dB (typical)
• Total harmonic distortion plus noise (THD+N): 0.005% (typical)

Integrated Headphone Amplifier

The built-in headphone amplifier enables high-quality personal monitoring without requiring additional external equipment. It delivers clean and detailed playback for a wide range of headphones.

• Dedicated 3.5 mm stereo headphone output
• Maximum output: 85 mW + 85 mW at 32 Ω
• Supports headphones with impedance above 16 Ω
• Ideal for desktop listening and private monitoring

Line Output Connectivity

The DS-DAC-100m includes stereo line outputs that allow direct integration with active speakers, hi-fi amplifiers, and professional monitoring systems.

• 3.5 mm stereo line output
• Compatible with home and professional audio systems
• Nominal output level: -6 dBV
• Maximum output level: +6 dBV

USB 2.0 High-Speed Connectivity

The unit connects directly to a computer using USB 2.0 High-Speed communication, providing reliable audio transfer while simplifying desktop setup and installation.

• USB 2.0 High-Speed interface
• Mini USB Type-B connector
• Supports ASIO, WDM, and Core Audio drivers
• Compatible with Windows and macOS systems

Optimized for AudioGate Software

The DS-DAC-100m is designed to work seamlessly with KORG AudioGate software, allowing users to manage, organize, and play high-resolution audio files while benefiting from advanced DSD processing capabilities.

• Optimized for KORG AudioGate integration
• Supports high-resolution music library management
• Advanced DSD playback workflow
• Professional music playback and conversion environment

Compact Mobile Design

The DS-DAC-100m features an elegant and highly portable design that makes it suitable for desktop listening systems, mobile production setups, and audiophile environments where space is limited.

• Compact desktop footprint
• Premium portable design
• LED indicators for power and sample-rate status
• Easy integration into desktop audio systems

Specifications

• DAC: Cirrus Logic CS4398
• Audio Channels: 2
• DSD Formats: 2.8224 MHz and 5.6448 MHz, 1-bit
• PCM Formats: 44.1 kHz to 192 kHz, 16-bit/24-bit
• Frequency Response: 10 Hz – 40 kHz
• Signal-to-Noise Ratio: 105 dB (typical)
• THD+N: 0.005% (typical)
• Headphone Output: 85 mW + 85 mW at 32 Ω
• USB Interface: USB 2.0 High-Speed
• Power Supply: USB bus-powered (5V, maximum 500 mA)
• Power Consumption: Maximum 2.5 W
• Dimensions: 92 × 129 × 20 mm
• Weight: Approximately 175 g

Key Features

• Premium mobile 1-bit USB DAC
• Native DSD64 and DSD128 playback support
• PCM playback up to 192 kHz / 24-bit
• Cirrus Logic CS4398 DAC chipset
• Integrated headphone amplifier
• 3.5 mm stereo line output
• USB 2.0 High-Speed connectivity
• ASIO, WDM, and Core Audio compatibility
• Optimized for KORG AudioGate software
• Compact and portable desktop design
• USB bus-powered operation

Why Choose the Korg DS-DAC-100m?

The Korg DS-DAC-100m is an outstanding solution for listeners who demand genuine high-resolution audio performance in a compact and elegant package. Combining native DSD playback, high-quality PCM support, a premium Cirrus Logic DAC, and an integrated headphone amplifier, it delivers exceptional sonic accuracy and convenience. Whether used for audiophile listening, desktop music enjoyment, or professional monitoring applications, the DS-DAC-100m offers a refined and immersive high-fidelity audio experience.
