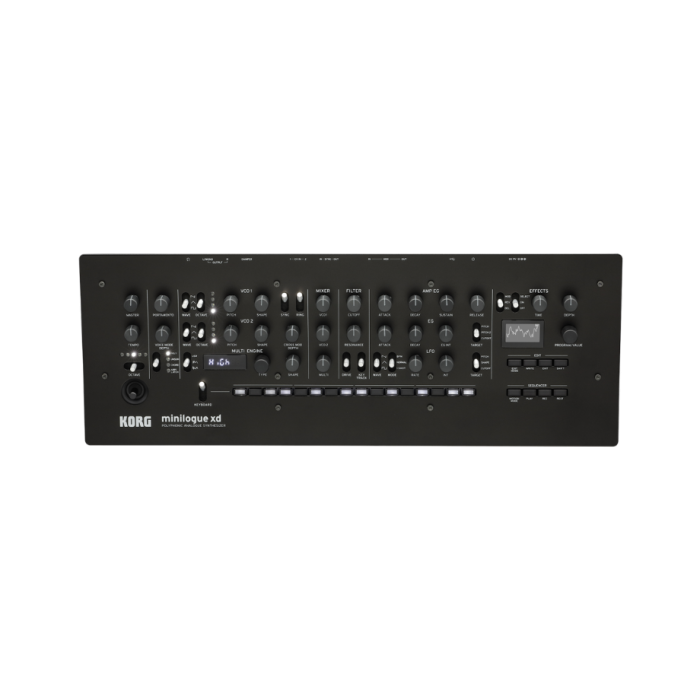

Korg minilogue xd Module Polyphonic Analog Synthesizer

The Korg minilogue xd Module is a powerful 4-voice polyphonic analog desktop synthesizer that combines true analog circuitry with advanced digital sound generation and studio-quality effects. Designed for musicians, producers, and sound designers who want the acclaimed sound engine of the minilogue xd in a compact desktop format, this module delivers exceptional sonic flexibility without an integrated keyboard, making it ideal for use with MIDI controllers, DAWs, and modular setups.

Building upon the success of the original minilogue and prologue synthesizers, the minilogue xd Module integrates dual analog oscillators, a versatile digital Multi-Engine, professional effects processing, a powerful sequencer, and customizable user oscillators and effects. The result is a highly expressive synthesizer capable of producing everything from warm analog pads and punchy basses to evolving textures, modern digital timbres, and experimental soundscapes.

Key Features

• 4-voice true analog polyphonic desktop synthesizer module
• Dual analog VCO architecture with powerful digital Multi-Engine
• Noise generator, VPM/FM oscillator, and user oscillator modes
• 32-bit digital effects engine with simultaneous effects processing
• 16-step polyphonic sequencer with motion sequencing
• 500 program memories including factory and user presets
• OLED oscilloscope display for real-time waveform visualization
• Four voice modes: Poly, Unison, Chord, and Arp/Latch
• User-customizable oscillators and effects
• Microtuning support for experimental and world music applications
• Poly Chain functionality for expanding to 8-voice operation
• MIDI, USB, Sync, and CV connectivity for studio and modular integration

Hybrid Analog and Digital Sound Engine

At the heart of the minilogue xd Module is a hybrid synthesis architecture that combines two true analog voltage-controlled oscillators with Korg's powerful digital Multi-Engine. This advanced design merges the warmth and richness of analog synthesis with the flexibility of digital sound generation, allowing musicians to create an enormous range of sounds with exceptional depth and character.

The Multi-Engine provides three independent digital sound sources:

• Noise Generator for percussion and atmospheric textures
• VPM/FM Oscillator for metallic and harmonically complex sounds
• User Oscillator for custom synthesis algorithms and wavetable creation

True Analog Character

The analog signal path features two VCOs with selectable sawtooth, square, and triangle waveforms, delivering the classic warmth and movement that analog synthesizers are known for. Oscillator synchronization, ring modulation, and cross modulation provide extensive sound-shaping possibilities ranging from vintage analog tones to aggressive contemporary textures.

A resonant low-pass filter with adjustable drive adds further sonic character, enabling everything from smooth, rounded timbres to highly resonant and harmonically rich sounds.

Professional Effects Engine

The minilogue xd Module incorporates a premium 32-bit floating-point digital effects processor that can run multiple effects simultaneously. Three independent effects sections provide extensive finishing tools for sound design and performance:

• Modulation Effects including Chorus, Ensemble, Phaser, and Flanger
• Delay Effects for rhythmic and ambient textures
• Reverb Effects for spacious and immersive soundscapes
• User Effect Slots for custom effect development

The ability to load custom user-developed effects significantly expands the instrument's sonic capabilities and makes it an ideal platform for experimental sound creation.

Four Flexible Voice Modes

The minilogue xd Module offers four performance-oriented voice modes that allow musicians to instantly adapt the synthesizer to different musical situations:

• Poly: Traditional four-note polyphonic operation
• Unison: All voices stacked for massive monophonic sounds
• Chord: Trigger complete chords using a single note
• Arp/Latch: Integrated arpeggiator with latch functionality

Voice Mode Depth controls provide additional parameter adjustments for each mode, offering exceptional performance flexibility.

16-Step Polyphonic Sequencer

The integrated 16-step polyphonic sequencer enables both step recording and real-time recording, making it easy to create evolving sequences and complex musical phrases. Motion sequencing allows parameter automation for up to four controls simultaneously, adding movement and expression to performances and sound design.

The sequencer can operate alongside the arpeggiator, opening up extensive creative possibilities for live performance and studio production.

OLED Oscilloscope Display

One of the standout features of the minilogue xd Module is its built-in OLED oscilloscope. This display provides real-time visualization of waveforms and parameter changes, helping users better understand synthesis techniques while offering an engaging visual element during performance and sound design.

Extensive Connectivity

Designed for modern studios and modular environments, the minilogue xd Module offers comprehensive connectivity options:

• Stereo audio outputs
• Stereo headphone output
• USB MIDI connectivity
• Traditional 5-pin MIDI In and Out ports
• Sync In and Sync Out connections
• Dual CV inputs for modular integration
• Damper pedal input

The Poly Chain function allows two compatible minilogue xd units to be linked together, expanding polyphony to eight voices for more complex arrangements and layered performances.

Technical Specifications

• Synthesis Type: Analog Sound Generator + Digital Multi-Engine
• Polyphony: 4 voices
• Oscillators: 2 Analog VCOs + Digital Multi-Engine
• Voice Modes: Poly, Unison, Chord, Arp/Latch
• Programs: 500 (200 factory presets and 300 user programs)
• Sequencer: 16-step polyphonic sequencer with motion recording
• Effects: Simultaneous Modulation, Delay, and Reverb effects
• Display: OLED oscilloscope and LED display
• Connectivity: USB MIDI, MIDI In/Out, Sync In/Out, CV In, Audio Outputs
• Power Supply: DC 9V AC adapter
• Power Consumption: 8W
• Dimensions: 500 × 179 × 85 mm
• Weight: 2.6 kg

Ideal Applications

• Electronic music production
• Sound design and synthesis experimentation
• Studio production environments
• DAW-based music production systems
• Modular synthesizer integration
• Live electronic performances
• Film scoring and ambient music creation
• Advanced synthesizer programming and education

Summary

The Korg minilogue xd Module delivers the acclaimed hybrid synthesis engine of the minilogue xd series in a compact desktop format designed for serious sound creators. Combining true analog circuitry, powerful digital sound generation, professional effects processing, extensive sequencing capabilities, and deep customization options, it offers exceptional sonic versatility for studio production, live performance, and modern synthesizer workflows.
