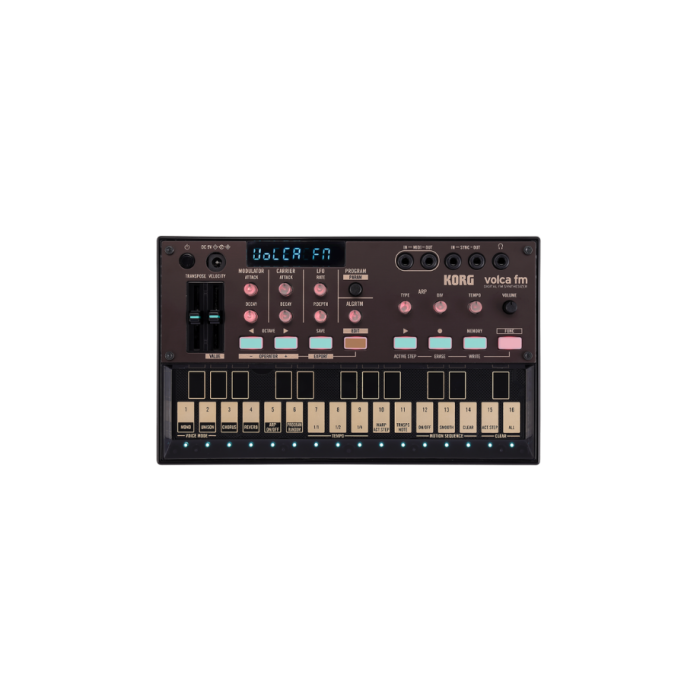

Korg volca FM2 Digital FM Synthesizer

The Korg volca FM2 Digital FM Synthesizer is a compact, performance-focused FM synthesis workstation designed for modern producers, live performers, and sound designers who want authentic DX-style FM synthesis in a portable hardware format. Building on the legacy of classic FM synthesis, it delivers deep sound design capabilities, expressive sequencing tools, and hands-on control in Korg’s signature volca form factor.

With 6-voice polyphony, an expanded feature set, and enhanced connectivity, the volca FM2 brings a significant upgrade over previous generations while retaining the immediacy and portability that defines the volca series. It is fully compatible with Yamaha DX7 SysEx data, allowing users to load thousands of classic FM presets and explore a vast library of legendary digital sounds.

Designed for both studio integration and live performance, the volca FM2 combines authentic 6-operator FM synthesis with built-in effects, motion sequencing, and arpeggiation—making it a powerful tool for evolving textures, basslines, pads, and percussive FM tones.

Key Features

• 6-voice polyphonic FM synthesizer based on classic DX-style architecture
• 6 operators with 32 algorithm structures for deep sound design
• 64 built-in programs with full SysEx compatibility (Yamaha DX7 format)
• 16-step sequencer with motion sequencing and pattern chaining
• Built-in chorus and reverb effects for enhanced sound shaping
• 9 arpeggiator types with Rise, Fall, and Random variations
• Poly, Mono, and Unison voice modes for performance flexibility
• Velocity-sensitive control via MIDI for expressive dynamics
• Program randomizer for instant sound inspiration
• Compact volca chassis with integrated multi-touch keyboard

FM Synthesis Engine

At its core, the volca FM2 uses a 6-operator FM synthesis engine capable of producing complex harmonic structures ranging from glassy electric pianos and bell tones to aggressive basses and evolving digital textures. The 32 algorithm configurations allow extensive modulation routing between carriers and modulators, enabling both classic DX7-style sounds and modern experimental timbres.

Each program can be deeply customized using envelope control (attack and decay per operator group), LFO modulation, and algorithm selection. While designed for fast workflow, the engine provides enough depth for advanced FM programming when paired with external editors or SysEx tools.

Sequencing & Performance Tools

The integrated 16-step sequencer is optimized for live performance and rapid idea creation. Users can record patterns in real time, apply motion sequencing for parameter automation, and chain patterns to build extended arrangements beyond the 16-step limitation.

Performance features such as Active Step, Warp Active Step, and Pattern Chain enable dynamic, evolving sequences that are ideal for electronic music production and live improvisation.

Effects & Sound Shaping

To enhance FM synthesis output, the volca FM2 includes onboard digital effects including chorus and reverb. These effects help add depth, space, and movement to otherwise clean FM tones, making it easier to place sounds within a mix without external processing.

Connectivity & Integration

The volca FM2 is designed for seamless integration with modern and legacy setups. It features MIDI IN and OUT via 3.5mm TRS connectors (adapter required), allowing connection to DAWs, controllers, and other hardware synthesizers.

It also supports synchronization with other volca units through Sync In/Out, making it ideal for modular hardware setups. Full compatibility with Yamaha DX7 SysEx data ensures access to a vast ecosystem of classic FM patches.

Design & Portability

True to the volca philosophy, the FM2 is extremely compact and battery-powered, making it suitable for mobile production, live sets, and travel setups. The built-in 27-key multi-touch keyboard provides immediate note input without requiring external controllers.

Its lightweight chassis allows it to fit easily into any portable rig while still delivering professional-grade synthesis capabilities.

Technical Specifications

• Synthesis Type: 6-operator FM synthesis
• Maximum Polyphony: 6 voices
• Algorithms: 32
• Programs: 64 preset slots (DX7 SysEx compatible)
• Sequencer: 16 steps, 16 patterns
• Effects: Chorus, Reverb
• Voice Modes: Poly, Mono, Unison
• Keyboard: 27-key multi-touch interface
• Audio Output: 3.5mm stereo headphone jack
• MIDI: IN / OUT via 3.5mm TRS (Type A adapter required)
• Sync: Sync In / Out (3.5mm mono)
• Power: 6× AA batteries or optional DC 9V adapter
• Battery Life: Approx. 10 hours
• Dimensions: 193 × 115 × 40 mm
• Weight: 360 g (without batteries)

Ideal Use Cases

The Korg volca FM2 is ideal for producers and performers who want authentic FM synthesis in a compact, affordable format. It is particularly suited for:

• Electronic music production (house, techno, ambient, experimental)
• Live hardware jam setups and modular rigs
• Sound designers exploring FM textures and digital timbres
• Musicians integrating DX7-style sounds into modern workflows

Summary

The Korg volca FM2 delivers deep FM synthesis power in a highly portable, performance-ready format. With expanded polyphony, DX7 compatibility, sequencing tools, and expressive control features, it stands as a versatile instrument for both classic FM recreation and modern sound exploration.
