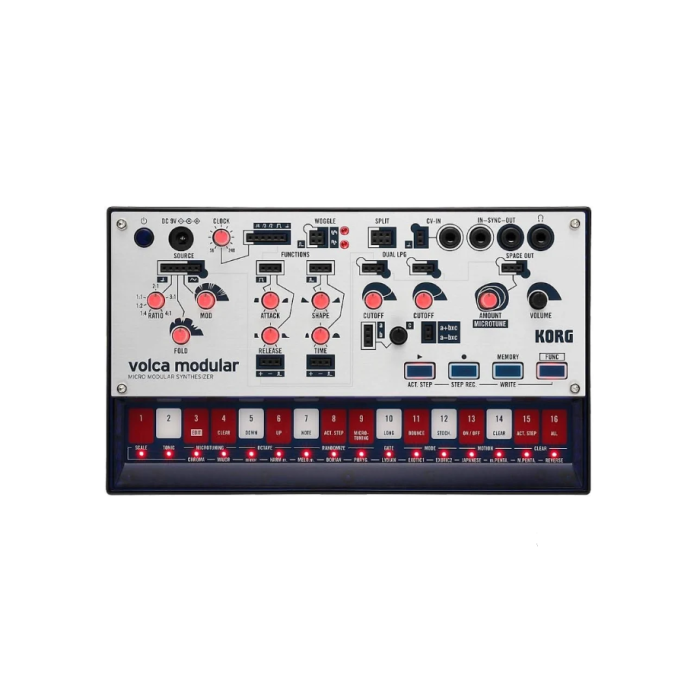

Korg Volca Modular Micro Modular Synthesizer

The Korg Volca Modular is a compact semi-modular analog synthesizer that brings the powerful world of West Coast synthesis into an accessible and portable format. Based on the principles of additive synthesis, this unique instrument uses complex oscillator architecture and wavefolding to generate rich, evolving tones, offering a distinctive alternative to traditional subtractive synthesis systems.

At the core of the Volca Modular is a dual oscillator structure known as the Complex Oscillator, which combines a carrier and modulator to create harmonically rich sounds. The wavefolder further shapes the waveform, introducing dynamic overtones and timbral variation. This synthesis approach allows users to explore a wide range of experimental textures, from percussive sequences to ambient soundscapes.

The semi-modular design features a patchable signal path using compact pin-style patch cables, enabling users to reconfigure the internal routing and create custom signal flows. Modules such as Function Generators, Low Pass Gates, Random Generator, and Utility modules provide deep sound-shaping flexibility while maintaining a clear and approachable layout.

An onboard 16-step sequencer enhances performance capabilities with motion sequencing, allowing real-time recording of parameter changes. The inclusion of functions such as micro-tuning, scale settings, and sequence chaining provides expanded creative control, making it suitable for both studio production and live performance.

Key Features

• Semi-modular analog synthesizer based on West Coast synthesis architecture.
• Complex oscillator with carrier and modulator for rich harmonic generation.
• Wavefolder circuit for dynamic waveform shaping and tonal variation.
• Patchable system with compact pin-style cables for flexible signal routing.
• Function Generators for envelope and modulation control.
• Low Pass Gate combining filtering and amplitude control.
• Random Generator module for unpredictable modulation and variation.
• 16-step sequencer with motion sequencing for dynamic performance control.
• Compact, portable design with built-in speaker.
• Sync In/Out and MIDI In for integration with external gear.

Technical Specifications

• Synthesis Type: Analog semi-modular (West Coast synthesis)
• Sound Generation: Complex oscillator with wavefolder
• Modules: Complex Oscillator, Modulator, Function Generators, Low Pass Gate, Random Generator, Utility
• Sequencer: 16-step sequencer with motion recording
• Audio Output: Headphones output (3.5 mm stereo mini jack)
• Sync: Sync In/Out (3.5 mm mono mini jack)
• MIDI: MIDI In
• Speaker: Built-in speaker
• Power Supply: 6 × AA alkaline batteries or optional AC adapter (KA-350)
• Battery Life: Approximately 10 hours (alkaline batteries)

Product Dimensions

• Width: 193 mm / 7.61″
• Depth: 115 mm / 4.53″
• Height: 46 mm / 1.81″
• Weight: 377 g / 0.83 lbs (excluding batteries)

Included in Box

• Korg Volca Modular Synthesizer
• Patch cables
• Sync cable
• 6 × AA alkaline batteries

Applications

• Experimental sound design and modular synthesis exploration.
• Electronic music production including ambient, techno, and experimental genres.
• Live performance with real-time patching and sequencing.
• Portable music creation with battery-powered operation.

The Korg Volca Modular delivers a unique synthesis experience by combining classic West Coast modular concepts with modern portability. Its flexible architecture, intuitive patching system, and powerful sequencing capabilities make it an ideal tool for musicians seeking to explore new sonic territories.
