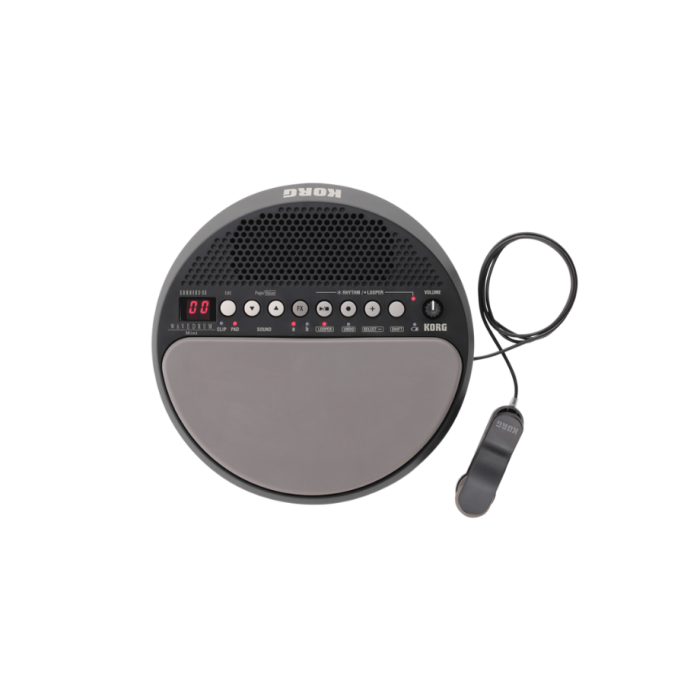

Korg Wavedrum Mini Portable Percussion Synthesizer

The Korg Wavedrum Mini Dynamic Percussion Synthesizer is a compact, portable evolution of Korg’s acclaimed Wavedrum series, designed to bring expressive percussion synthesis into a lightweight, battery-powered format. Combining a responsive rubber playing pad, built-in speaker, and innovative sensor clip technology, it allows musicians to create dynamic percussion performances anywhere—on the street, in the studio, or on stage.

Built on Korg’s hybrid DSP and PCM sound engine, the Wavedrum Mini delivers a wide range of acoustic percussion, electronic drum sounds, melodic tones, and experimental effects. It responds to playing dynamics and velocity, making it more expressive than typical sample-based drum pads.

A defining feature of the Wavedrum Mini is its sensor clip input system, which enables virtually any object or surface to become a playable percussion instrument. When attached to a table, box, bottle, or even a shoe, the clip detects vibrations and triggers a second sound layer, dramatically expanding performance possibilities.

Key Features

• Compact dynamic percussion synthesizer with built-in speaker
• Battery-powered design for full portability
• 100 internal sounds covering drums, percussion, and synth tones
• 100 built-in rhythm patterns for practice and performance
• 10 onboard effects for real-time sound shaping
• Onboard looper with unlimited overdubs (up to 25 seconds loop length)
• Dual-sound performance: pad + sensor clip input simultaneously
• Sensor clip transforms any object into a playable instrument
• Headphone output for silent practice and line output for amplification
• Lightweight, ultra-portable 1 kg design

Dual-Sound Performance System

The Wavedrum Mini allows players to perform using two independent sound sources at the same time. The main rubber pad triggers one sound, while the included sensor clip can be attached to any surface to trigger a second sound.

This dual-layer approach enables highly creative performance setups, such as combining a kick drum sound from the pad with a shaker or snare triggered from a table or floor surface, giving solo performers a much richer rhythmic output.

Sensor Clip Technology

The sensor clip is one of the most innovative aspects of the Wavedrum Mini. It detects vibrations from any attached object and converts them into trigger signals for the internal sound engine.

This allows musicians to turn everyday objects into percussion instruments—such as tapping a desk for snare-like sounds, shaking a bottle for shaker textures, or stepping on a surface to trigger bass-like tones.

Sound Engine & Musical Content

The Wavedrum Mini includes 100 preset sounds ranging from acoustic percussion instruments to synthetic textures and melodic tones. These sounds are designed for immediate playability and expressive variation based on playing dynamics.

The unit also features 100 rhythm patterns that can be used for practice, jamming, or layered performance. These patterns provide a foundation for improvisation and can be overdubbed using the onboard looper.

Looper & Effects

A built-in looper allows musicians to record and layer performances with unlimited overdubs, limited to a maximum loop length of approximately 25 seconds. This makes it possible to build complex rhythmic arrangements in real time.

Ten onboard effects—including reverb, delay, modulation, pitch-based effects, and distortion—allow real-time sound shaping for expressive performance control.

Built-In Speaker & Portable Design

The Wavedrum Mini features an integrated speaker system for immediate sound output without external equipment. Combined with battery operation, it enables complete mobility for street performance, practice, or travel use.

Its compact 216 × 216 mm footprint and lightweight construction make it one of the most portable instruments in Korg’s percussion lineup.

Connectivity & Performance Options

In addition to its built-in speaker, the Wavedrum Mini includes a headphone output for silent practice and a line output for connection to amplifiers, PA systems, or recording interfaces.

The sensor clip input expands performance capabilities by allowing external surfaces and objects to be integrated into the instrument’s sound generation system.

Technical Specifications

• Instrument Type: Dynamic percussion synthesizer
• Sound Engine: DSP + PCM hybrid synthesis
• Sounds: 100 presets
• Rhythm Patterns: 100 internal patterns
• Effects: 10 onboard effects
• Looper: Up to 25 seconds with unlimited overdubs
• Speaker: 10 × 5 cm, 1.3 W output
• Sampling Rate: 48 kHz
• Conversion: 24-bit A/D and D/A
• Audio Outputs: Stereo headphone output, 1/4” line output
• Input: Sensor clip input
• Display: 7-segment LED
• Power Supply: 6 × AA batteries or AC adapter
• Battery Life: Approx. 4 hours (NiMH batteries)
• Dimensions: 216 × 216 × 67 mm
• Weight: Approx. 1.0 kg (with batteries)

Ideal Applications

The Korg Wavedrum Mini is ideal for musicians who want a highly portable and expressive percussion instrument. It is particularly suited for:

• Live street performance and mobile musicians
• Beginner percussion learning and rhythm practice
• Electronic music production and beat creation
• Experimental sound design and object-based percussion
• Travel-friendly music setups
• Loop-based solo performances

Summary

The Korg Wavedrum Mini delivers a compact and creative approach to percussion synthesis, combining expressive playing, object-based triggering, onboard looping, and portable design. With its dual-sound system and innovative sensor clip technology, it transforms everyday environments into interactive musical instruments, making it a powerful tool for spontaneous creativity and portable performance.
