Neumann U 87 Ai Studio Set Large Diaphragm Multi-Pattern Condenser Microphone - Nickel with EA 87 Shock Mount

Neumann U 87 Ai Studio Set Large-Diaphragm Condenser Microphone (Nickel) | 008660

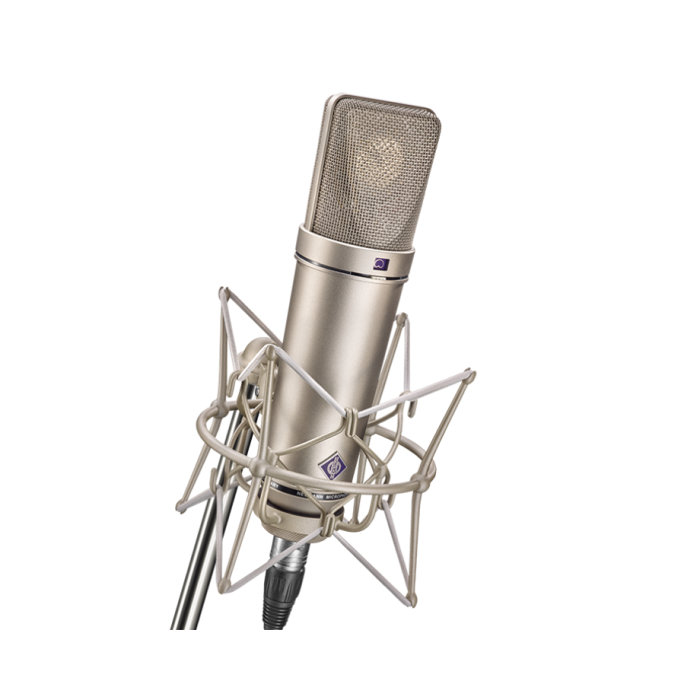

The Neumann U 87 Ai Studio Set is a complete professional recording microphone package featuring the legendary U 87 Ai large-diaphragm condenser microphone, an EA 87 elastic shock mount, and an EA 87 Ai wooden storage box. Designed for professional studios, broadcast facilities, voice recording, music production, and critical audio applications, this studio set delivers the world-renowned Neumann sound character with exceptional versatility, accuracy, and reliability. :contentReference[oaicite:0]{index=0}

The Neumann U 87 Ai Studio Set (Cat. No. 008660) includes the nickel-finish U 87 Ai microphone together with the EA 87 shock mount and dedicated wooden microphone box. This complete package provides professional users with a secure mounting solution and premium storage protection for one of the most recognised studio microphones in the world. :contentReference[oaicite:1]{index=1}

The Legendary Neumann Studio Microphone

The Neumann U 87 Ai is considered a benchmark large-diaphragm condenser microphone for professional recording environments. Known for its smooth and refined sound character, the U 87 Ai has become a trusted choice for engineers, producers, broadcasters, and musicians who require natural sound reproduction and exceptional recording flexibility. :contentReference[oaicite:2]{index=2}

Its balanced frequency response, detailed transient reproduction, and transparent audio capture make the U 87 Ai suitable for accurately recording the character of vocals, instruments, speech, and acoustic spaces. The microphone combines classic Neumann engineering with modern circuit improvements to provide consistent performance across demanding studio applications.

Three Selectable Polar Patterns for Recording Flexibility

The Neumann U 87 Ai features three selectable polar patterns: omnidirectional, cardioid, and figure-8. This flexibility allows recording engineers to adapt microphone placement according to the sound source, acoustic environment, and creative requirements. :contentReference[oaicite:3]{index=3}

• Omnidirectional: Captures sound evenly from all directions, making it suitable for natural room recordings, ensembles, and ambient applications.
• Cardioid: Focuses on the main sound source while reducing unwanted sound from the rear, ideal for vocals, speech, and instrument recording.
• Figure-8: Captures sound from the front and rear while rejecting sound from the sides, providing flexibility for specialised recording techniques.

Professional Sound Quality for Studio Recording

The Neumann U 87 Ai delivers a wide frequency response from 20 Hz to 20 kHz, capturing detailed low frequencies, natural midrange character, and smooth high-frequency reproduction. Its large-diaphragm condenser capsule provides the sensitivity and accuracy required for professional recording environments.

The microphone’s refined tonal balance makes it especially effective for vocals, voice-over, broadcasting, acoustic instruments, orchestral recordings, and other applications where natural and detailed sound capture is essential.

Switchable Low Cut Filter and Preattenuation

The U 87 Ai includes switchable low-cut filter and preattenuation functions, allowing engineers to optimise microphone performance for different recording situations. These controls provide additional flexibility when managing proximity effects, low-frequency response, and higher sound pressure levels. :contentReference[oaicite:4]{index=4}

These professional features make the U 87 Ai suitable for both close microphone techniques and demanding studio recording applications requiring precise control.

EA 87 Elastic Shock Mount for Professional Isolation

The included EA 87 elastic shock mount helps minimise mechanical vibrations and handling noise transmitted through the microphone stand. By providing effective suspension and isolation, it helps maintain cleaner recordings during professional sessions.

The EA 87 shock mount is ideal for vocal recording, voice-over production, broadcast applications, and critical studio environments where microphone stability and noise reduction are important.

Professional Applications

The Neumann U 87 Ai Studio Set is designed for a wide range of professional recording applications where accurate sound capture and dependable performance are required.

• Professional vocal recording
• Voice-over and narration
• Broadcast and radio production
• Podcast and speech recording
• Acoustic guitar and string instruments
• Piano recording
• Orchestral and ensemble recording
• Drums and percussion
• Room ambience recording
• Film and post-production audio
• Commercial recording studios

Neumann U 87 Ai Studio Set Key Features

• Professional large-diaphragm condenser studio microphone
• Complete Studio Set with EA 87 elastic shock mount
• Includes EA 87 Ai wooden storage box
• Three selectable polar patterns: omnidirectional, cardioid, and figure-8
• Switchable low-cut filter
• Switchable preattenuation
• Classic Neumann sound character
• Balanced frequency response from 20 Hz to 20 kHz
• Professional XLR 3 F connection
• Premium nickel finish

Technical Specifications

• Product Type: Large-diaphragm condenser studio microphone set
• Acoustical Operating Principle: Pressure-gradient transducer
• Directional Patterns: Omnidirectional, cardioid, figure-8
• Frequency Range: 20 Hz – 20 kHz
• Sensitivity at 1 kHz into 1 kΩ: 20 / 28 / 22 mV/Pa ± 1 dB (omni/cardioid/figure-8)
• Rated Impedance: 200 Ω
• Rated Load Impedance: 1 kΩ
• Equivalent Noise Level: 15 / 12 / 14 dB-A (omni/cardioid/figure-8)
• Maximum SPL: 117 dB (cardioid)
• Maximum SPL with Preattenuation: 127 dB
• Signal-to-Noise Ratio: 79 / 82 / 80 dB-A (omni/cardioid/figure-8)
• Maximum Output Voltage: -6 dBu
• Power Requirement: 48 V ± 4 V Phantom Power (P48)
• Current Consumption: 0.8 mA
• Connector: XLR 3 F
• Weight: Approx. 500 g
• Diameter: 56 mm
• Length: 200 mm

Included Accessories

• Neumann U 87 Ai Large-Diaphragm Condenser Microphone (Nickel)
• EA 87 Elastic Shock Mount
• EA 87 Ai Wooden Storage Box

The Neumann U 87 Ai Studio Set Large-Diaphragm Condenser Microphone Package provides a complete professional recording solution for engineers, producers, broadcasters, and musicians who demand exceptional sound quality and reliability. Combining the legendary U 87 Ai microphone with the EA 87 shock mount and premium storage box, this studio set is an ideal choice for vocals, speech, instruments, broadcast production, and professional studio recording applications.
