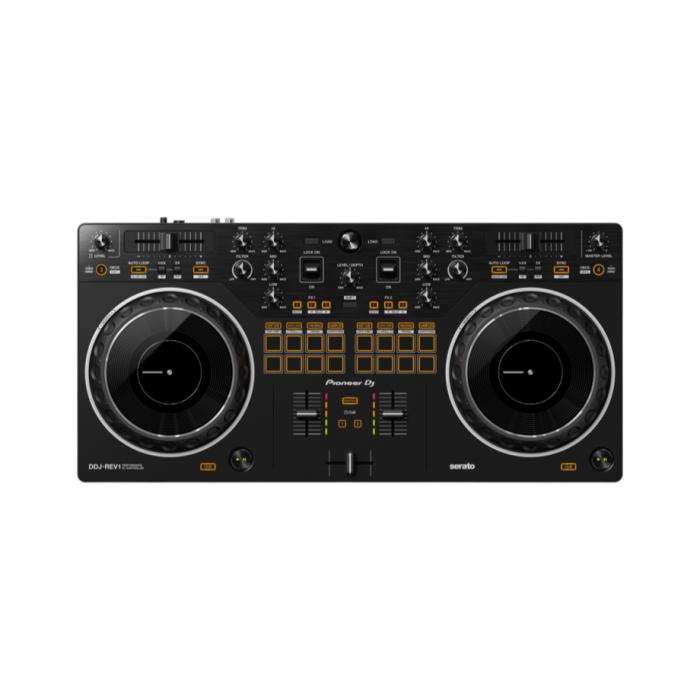

Pioneer DJ DDJ-REV1 2-Channel Scratch-Style DJ Controller for Serato DJ Lite

Overview

The Pioneer DJ DDJ-REV1 is a scratch-style 2-channel DJ controller designed for Serato DJ Lite and DJs who want an intuitive battle-style layout for mixing, scratching, open-format sets, and hip-hop performance. Its control layout emulates a professional DJM-S mixer and PLX turntable setup, giving beginners and developing DJs a familiar workflow inspired by professional battle DJ equipment.

The DDJ-REV1 combines large 154 mm jog wheels, horizontally positioned 60 mm tempo sliders, performance pads, dedicated effect levers, and intuitive mixer controls in a compact USB-powered design. It also supports microphone input and mixed microphone audio for streaming through Serato DJ Lite, making it a versatile controller for home practice, content creation, and live DJ performance.

Key Features

• 2-channel scratch-style DJ controller
• Designed for Serato DJ Lite
• Battle-style layout inspired by professional DJM-S mixer and PLX turntable setups
• Large 154 mm jog wheels for mixing and scratching
• 60 mm horizontal tempo sliders for precise pitch control
• Performance pads positioned in the mixer section for intuitive performance control
• Hot Cue, Auto Loop, Tracking Scratch, and Sampler pad modes
• Tracking Scratch feature for assisted scratch techniques
• Dedicated effect levers for hands-on FX performance
• Scratch Bank function for quickly loading assigned scratch samples
• Built-in microphone input with microphone level control
• Microphone audio can be mixed with master audio for streaming
• Master RCA output for powered speakers or amplifiers
• 3.5 mm stereo mini headphone output
• USB Type-B connectivity
• USB bus powered with no separate AC adapter required
• Compatible with MIDI-compatible software

Battle-Style DJ Layout

The DDJ-REV1 features a redesigned battle-style control layout inspired by professional scratch DJ setups. The decks are arranged to emulate two PLX-style turntables around a DJM-S-style mixer, while the horizontal tempo sliders provide a natural workflow for DJs who want to develop scratching and battle-style mixing techniques.

Large Jog Wheels and Precise Tempo Control

The 154 mm jog wheels provide ample surface area for scratching, cueing, and pitch bending. Their larger design gives DJs greater control during manual performance, while the 60 mm horizontal tempo sliders provide fine adjustment of track speed.

Creative Performance Controls

The DDJ-REV1 includes four performance pad modes: Hot Cue, Auto Loop, Tracking Scratch, and Sampler. These modes provide quick access to essential performance functions, while the dedicated Scratch Bank button allows users to instantly load scratch samples assigned in Serato DJ Lite or Serato DJ Pro.

Tracking Scratch

Tracking Scratch is designed to make scratch performance more accessible by automatically returning the track to its original playback position when the jog wheel is released. This allows beginners to experiment with scratch techniques while maintaining the musical timing of the track.

Hands-On Effects

The DDJ-REV1 features dedicated effect levers that can be held in the ON position or locked into continuous operation. This provides a tactile way to apply effects during transitions, scratch routines, and live performances without relying entirely on the computer screen.

Microphone and Streaming

A dedicated 1/4-inch TS microphone input allows a microphone to be connected directly to the controller. The DDJ-REV1 can mix microphone audio with the master output and send the combined sound to Serato DJ Lite, allowing DJs to add voice commentary or vocals to streams without requiring an external sound card or mixer.

Serato DJ Lite Integration

The DDJ-REV1 is designed to work with Serato DJ Lite software. Connect the controller to a PC or Mac using the USB cable to access tactile control of mixing, effects, performance pads, jog wheels, and other DJ functions. Serato DJ Pro is also supported with the appropriate license or subscription.

Compact and Portable Design

With dimensions of 526 × 255.5 × 59.2 mm, the DDJ-REV1 provides a full-featured scratch-oriented layout while remaining compact enough for home studios, practice spaces, mobile DJ setups, and content-creation environments. Its USB bus-powered design eliminates the need for a separate power supply.

Specifications

• Model: DDJ-REV1
• Product Type: 2-Channel DJ Controller
• Controller Style: Scratch / Battle Style
• DJ Software: Serato DJ Lite
• Serato DJ Pro: Compatible with License or Subscription
• Jog Wheel Size: 154 mm / 6.06 inches
• Tempo Slider: 60 mm Horizontal
• Channels: 2
• Performance Pad Modes: Hot Cue, Auto Loop, Tracking Scratch, Sampler
• FX Trigger: Lever
• Loop Trigger: Yes
• Deck 3/4 Switch: Yes
• Microphone Input: 1 × 1/4-inch TS Jack
• Master Output: 1 × RCA
• Headphone Output: 1 × 3.5 mm Stereo Mini Jack
• USB: 1 × USB Type-B
• Power Supply: USB Bus Powered
• Power Consumption: 5 V / 500 mA
• Frequency Response: 20 Hz – 20 kHz
• Signal-to-Noise Ratio: 103 dB (USB)
• Total Harmonic Distortion: 0.005%
• Dimensions: 526 × 255.5 × 59.2 mm

What's Included

• Pioneer DJ DDJ-REV1 DJ Controller
• USB Cable
• Serato DJ Lite Software
• Quick Start Guide
• Precautions for Use
• Warranty Information

Why Choose the Pioneer DJ DDJ-REV1?

The Pioneer DJ DDJ-REV1 is an excellent choice for beginner and developing DJs who want to learn scratching, battle-style mixing, open-format DJing, and hip-hop performance using a professional-inspired workflow. Its large jog wheels, horizontal tempo sliders, dedicated effect levers, Tracking Scratch, Scratch Bank, performance pads, microphone input, and Serato DJ Lite integration make it a powerful and approachable 2-channel DJ controller for practice, streaming, content creation, and live performance.
