Roland PCS-31L Stereo Insert Y-Cable

Pro-Grade Percussion & Audio Routing: Roland PCS-31L Right-Angle TRS to Dual TS Insert Y-Cable

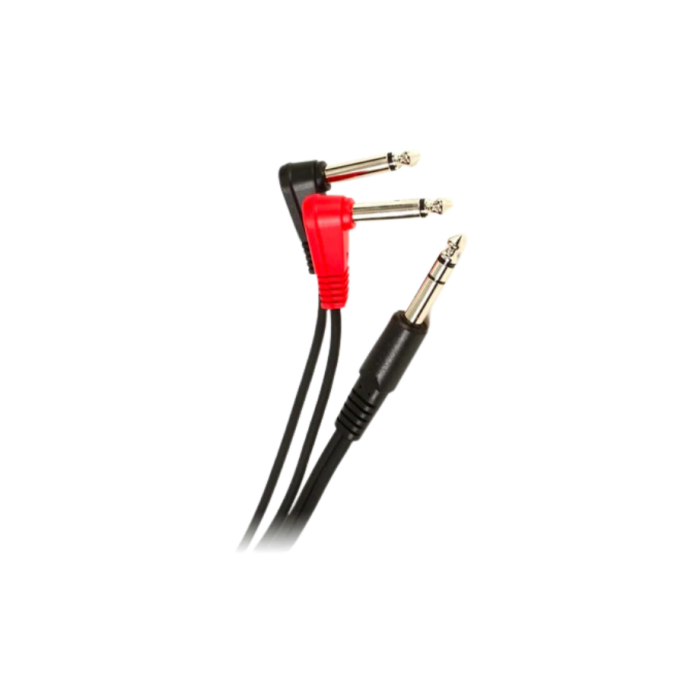

Are you looking for a highly reliable, low-noise connection cable to expand your electronic drum triggers, pedal layouts, or studio insert routings? The Roland PCS-31L is a premium, high-durability Y-configured insert cable specifically engineered for seamless integration with Roland V-Drums modules, percussion pads, and professional audio setups across the UAE. Featuring a single straight 1/4-inch stereo (TRS) plug splitting into two right-angled 1/4-inch mono (TS) plugs, this 2.2-meter (7.5-foot) cable provides the pristine structural shielding required for flawless signal transmission.

The primary engineering intent behind the PCS-31L centers on maximizing hardware input utility. Electronic percussion setups often feature dual-zone trigger inputs that accept two independent signals through a single port. The PCS-31L acts as an analog channel splitter—allowing you to connect two separate single-zone trigger pads (such as extra cymbals or auxiliary drum pads) directly into a single dual-zone input on your drum module, optimizing your rig’s layout without requiring expensive hardware upgrades.

Key Features and Precision Tech Specifications

The Roland PCS-31L combines road-ready durability with accurate structural audio design:

• Optimized Y-Split Architecture: Splits a single 1/4-inch Tip-Ring-Sleeve (TRS) connection down into two discrete 1/4-inch Tip-Sleeve (TS) lines (Left/Right or Tip/Ring channels).
• Right-Angled Connector Ends: The dual mono plugs are configured with tight, space-saving right angles (L-type), perfect for low-profile insertion into drum pads, cymbals, or pedalboards where straight plugs would protrude or strain.
• Generous 2.2-Meter (7.5-Foot) Length: Provides ample physical slack to cleanly route lines through heavy drum racks, underneath stage stands, or behind crowded studio desks.
• Ultra-Low Noise Component Shielding: Built using heavy-duty insulation layers to reject electromagnetic interference, preserving lightning-fast dynamic transient response for percussion pads.
• Universal Hardware Versatility: Fully optimized for Roland V-Drums trigger expansions, dual BOSS footswitch configurations (like connecting two FS-5U pedals to a single jack), and standard mixing console audio insert channels.

The Essential Hardware Splitter for V-Drums and Percussion Expansion

For electronic drummers and live performers in Dubai, Abu Dhabi, and across the region, maximizing the capability of a sound module or sampling pad is essential. If you are using a trigger module (such as the Roland TM-2 or a TD-series brain), the PCS-31L allows you to isolate the head and rim signals of a single input port. This makes it effortless to chain a dedicated secondary cymbal pad (like the Roland CY-8) or an acoustic drum trigger alongside your main pads, expanding your available sound palette without needing a larger, more expensive console module.

Beyond percussion, the PCS-31L functions as a high-fidelity studio insert cable. When connected to the insert jack of an analog mixing console, it routes your channel's outgoing audio through the "Tip" plug into an external outboard processor (like a hardware compressor or EQ) and brings the treated signal back into the mixer through the "Ring" plug, all using a single integrated cable bundle.

Frequently Asked Questions

Can I use this cable to connect two separate BOSS footswitches to a single pedal jack?

Yes, absolutely. The PCS-31L is ideal for connecting a pair of single BOSS FS-5U footswitches or a dual FS-6/FS-7 pedal to a single 1/4-inch TRS input jack on a drum machine, synthesizer, or guitar multi-effects processor. The cable splits the Tip and Ring paths perfectly, providing completely independent control over both footswitches simultaneously.

What is the benefit of the right-angled (L-type) plugs on the mono ends?

Right-angled plugs are highly beneficial on electronic drum kits and compact pedalboards. Because percussion pads and cymbals move slightly when struck, a straight plug experiences a constant lever-like pulling force that can wear out internal hardware jacks. The low-profile right-angle shape directs the cable weight downwards along the frame, reducing structural strain and preventing accidental disconnects during aggressive live play.

Is this cable directional, and how do I know which mono plug is Tip or Ring?

While the cable is passive and carries audio symmetrically, the two mono plugs correspond directly to the discrete channels of the stereo end. Typically, the internal wiring maps one right-angled plug to the "Tip" channel (usually designated as Left or Channel A) and the other to the "Ring" channel (Right or Channel B). This allows you to easily map your routing paths inside your module or mixer settings.
