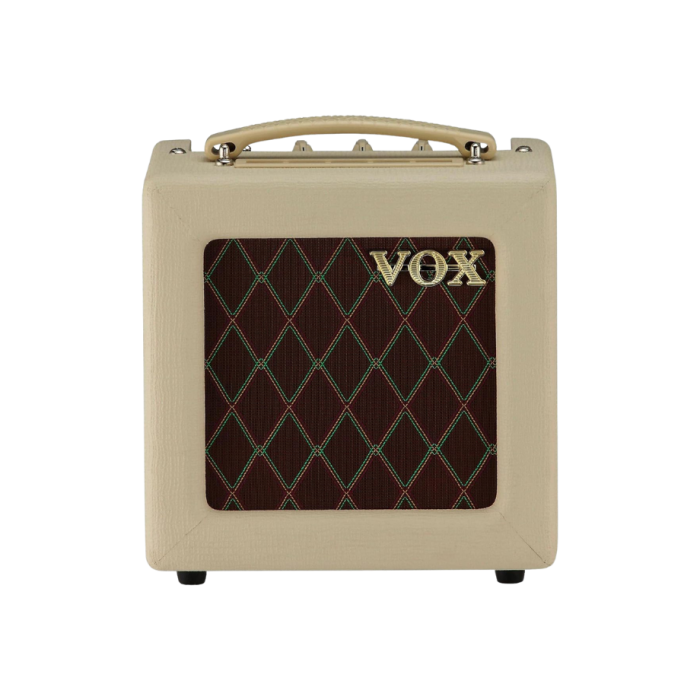

Vox AC4TVmini 4-Watt Tube Practice Combo Amplifier
Brand
VOX
Get the coveted sound of a cranked Vox amplifier in a size that fits on your desktop. The Vox AC4TVmini is a diminutive but mighty all-tube practice amp that draws its aesthetic inspiration from classic 1950s TV-front Vox designs. Powered by a classic combination of a 12AX7 preamp tube and an EL84 power tube, this compact combo delivers everything from sparkling cleans to rich, saturated British overdrive.
The VOX AC4TV Mini is an ultra-compact, all-tube guitar amplifier designed to deliver authentic British valve tone at bedroom-friendly volumes. Inspired by the classic styling of the VOX Heritage series and built with a distinctive retro "TV-front" cabinet, this 4-watt combo amp pairs vintage aesthetics with modern utility for practice and small-scale recording sessions.
All-Tube Architecture and Cascading Gain
Unlike digital modeling practice amps, the AC4TV Mini features a genuine tube signal path that responds dynamically to your playing touch:
- Tube Complement: Powered by a single 12AX7 dual-triode preamp tube configured in a cascading circuit for higher gain potential, alongside a single EL84 power tube operating in a single-ended, cathode-biased power section.
- Tone Control: A straightforward passive tone control allows you to effortlessly roll off high frequencies to warm up your sound.
Built-In Power Attenuator for Low-Volume Crunch
One of the standout features of the AC4TV series is its built-in output power attenuator. If you want to push the EL84 power tube into rich, natural harmonic saturation and overdrive without shaking the walls, you can easily step down the output wattage:
- 3-Stage Output Selection: Choose between 4 Watts, 1 Watt, or 1/4 Watt output levels to maintain full tube breakup at whisper-quiet volumes.
Retro Styling and Convenient Connectivity
Wrapped in attractive light tan vinyl and optimized for portability, the AC4TV Mini delivers classic vintage charm alongside practical studio and practice features:
- Custom Speaker: Equipped with a specially designed 6.5-inch speaker engineered to deliver tight, clear response despite the amp's miniature footprint.
- Extension Cabinet Jack: Features a rear-panel 16-ohm external speaker output, allowing you to connect a larger cabinet if you want to push more air.
Key Technical Specifications
- Output Power: 4 Watts RMS (with built-in power attenuator for 1W and 1/4W settings)
- Tube Complement: Preamp: 1 x 12AX7 | Power Amp: 1 x EL84
- Speaker: 1 x 6.5" VOX Special Design speaker
- Controls: Volume, Tone, 3-position Power Attenuator switch
- Inputs/Outputs: 1/4" Instrument Input, 1/4" External Speaker Output (16 ohms)
- Cabinet Design: Retro light tan vinyl "TV-front" enclosure
- Dimensions (W x D x H): Approx. 11.81 x 7.64 x 12.68 inches (300 x 194 x 322 mm)
- Weight: 16 lbs. (7.26 kg)
The VOX AC4TV Mini is the ultimate practice tool for guitarists who refuse to compromise on real tube tone. Combining genuine valve crunch, an onboard power attenuator, and classic retro styling, it brings legendary British tone to your desktop or practice space.
