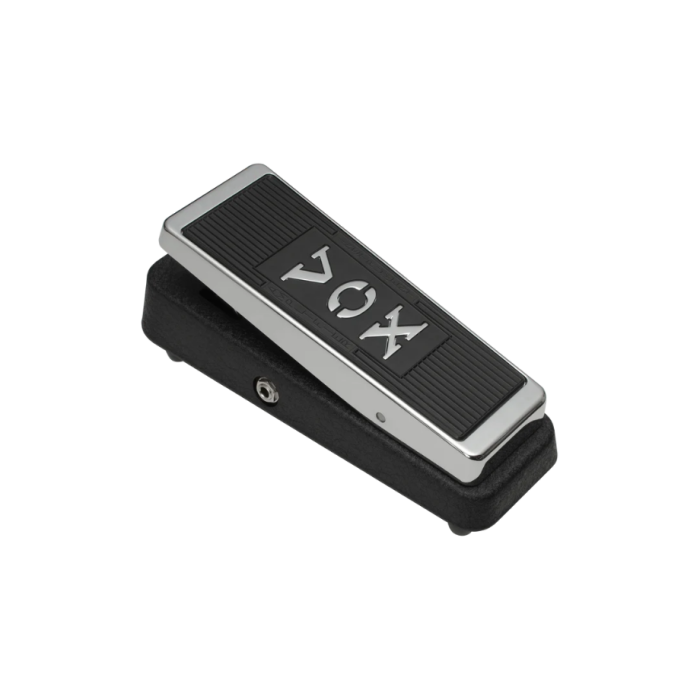

VOX V846 Vintage Wah Guitar Effects Pedal

Recreate the definitive voice of late-1960s rock history with the VOX V846 Vintage Wah-Wah Pedal. Meticulously engineered as an exacting tribute to the legendary 1967 original, the V846 Vintage captures the exact component-level magic, aggressive tonal profile, and wide-sweeping articulation that shaped iconic performances from the golden era of electric guitar.

To achieve absolute historical authenticity, VOX engineers started by analyzing a mint-condition 1967 "Holy Grail" unit. Every single element of the circuit was reverse-engineered and recreated from scratch—featuring a bespoke reproduction of the famed Halo inductor, vintage-accurate BC109 transistors, and larger ½-watt carbon film resistors. The result is an assertive, high-end-focused wah sweep with incredible bite and clarity that punches effortlessly through overdriven amp stacks. Encased in a chassis molded directly from a 3D scan of the vintage original—right down to the bottom plate typography and screws—the V846 Vintage is the ultimate expression pedal for players seeking authentic vintage tone without the risks or wear of a rare collectible.

Key Features and Performance Benefits

• Component-Level Recreation: Meticulously engineered to emulate the legendary 1967 original down to every internal resistor, capacitor, and wire.
• Custom Halo Inductor: Faithfully replicates the ferrite-core behavior and saturation characteristics of vintage VOX inductors for authentic midrange vocal quality.
• Assertive High-End Sweep: Voiced with an extended frequency range and pronounced high-frequency emphasis, making it the ultimate partner for fuzz pedals and classic rock tones.
• Vintage Transistor Specs: Employs authentic BC109 "metal can" style NPN transistors for precise gain staging and dynamic playing response.
• 3D-Scanned Exterior Chassis: The heavy-duty die-cast metal body is molded directly from an original 1967 specimen, matching period-correct aesthetics and rugged road-readiness.
• Low Power Consumption: Highly efficient all-analog circuit design delivers exceptional battery life for mobile pedalboards.

Technical Specifications

• Pedal Type: Wah-Wah
• Circuitry: All-Analog
• Inputs: 1 x 1/4" monaural phone jack
• Outputs: 1 x 1/4" monaural phone jack
• Power Supply: 1 x 9V dry cell battery (6LF22/6LR61) or optional 9V DC adapter
• Current Consumption: 540 µA
• Battery Life: Approx. 100+ hours (with alkaline batteries)
• Dimensions (W x D x H): 4.02" x 9.92" x 3.15" (102 x 252 x 80 mm)
• Weight: 2.87 lbs / 1300 g (excluding batteries)

The VOX V846 Vintage Wah-Wah Pedal bridges the gap between past and present, offering uncompromising tone, legendary feel, and timeless style. Whether you are laying down soaring leads or rhythm funk, it delivers the true voice of rock royalty.
