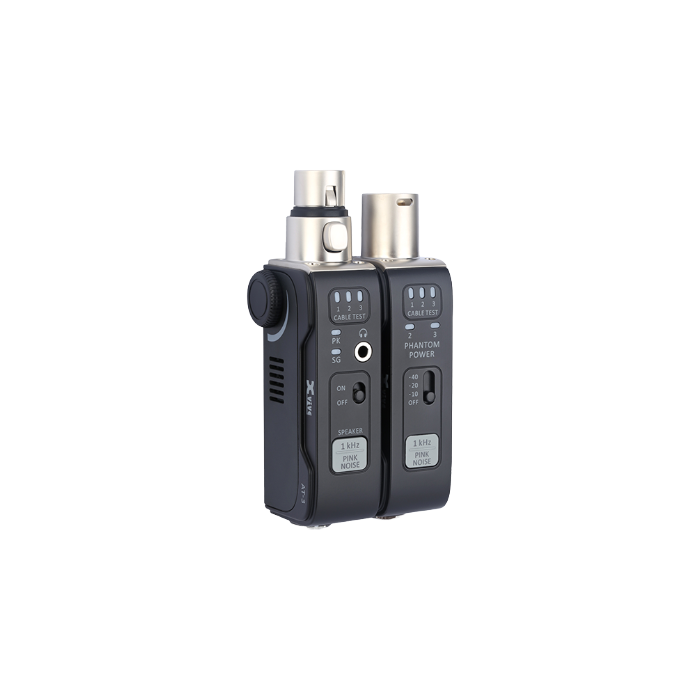

Xvive AT-3 Audio Tester Ultra Pro
Brand
XVIVE
Xvive AT-3 Audio Tester Ultra Pro
The Xvive AT-3 Audio Tester Ultra Pro is a professional-grade, split-unit audio diagnostic tool designed for advanced troubleshooting of live sound, studio, and installation systems. Built for audio engineers and technicians, it combines multiple essential testing functions into a portable dual-module system for fast and accurate signal verification.
Featuring independent transmitter and receiver units, the AT-3 Ultra Pro enables long-distance cable testing, real-time signal analysis, and system diagnostics without requiring both ends of a cable to be physically close. This makes it especially effective for large stage setups, installed audio systems, and complex routing environments.
Key Features
- Split-unit design with independent XLR transmitter and receiver modules
- 1 kHz sine wave and pink noise signal generator for system testing
- XLR and DMX cable continuity testing for long cable runs
- Phantom power detection and voltage verification
- Input signal metering for real-time level monitoring
- Built-in speaker and headphone monitoring on receiver unit
- Supports XLR, 1/4", and 3.5 mm connections
- Rechargeable battery with USB-C fast charging
- Portable rugged design for professional field use
Technical Specifications
- Model: AT-3 Audio Tester Ultra Pro
- Design: Split-unit (Sender + Receiver)
- Signal Types: 1 kHz sine wave, pink noise
- Output Levels: -10 dB / -20 dB / -40 dB
- Connectors: XLR (male/female), 1/4", 3.5 mm
- Phantom Power Test: 24V – 48V detection range
- Battery: Rechargeable lithium-ion
- Charging: USB-C
- Battery Life: Approx. 4–8 hours (usage dependent)
Performance & Application
- Ideal for live sound system troubleshooting and setup verification
- Suitable for testing mixers, PA systems, DI boxes, and IEM systems
- Enables fast identification of faulty cables and signal paths
- Perfect for touring engineers, installers, and studio technicians
Product Dimensions
- Approx. 167 × 106 × 69 mm (combined units)
- Weight: Approx. 300 g
- Form Factor: Dual handheld diagnostic system
Why Choose Xvive AT-3 Ultra Pro
The Xvive AT-3 Audio Tester Ultra Pro delivers a complete professional troubleshooting solution by combining signal generation, cable testing, and real-time monitoring in a split-unit design. Its advanced diagnostics, portability, and reliability make it an essential tool for ensuring optimal performance in any audio system.
