Xvive PX Portable 3-Channel Personal Monitoring System
The Xvive PX System is a professional wired personal monitoring solution designed for musicians, vocalists, and live performers who need full control over their in-ear monitor mix. It allows each performer to independently adjust three audio channels in real time, creating a personalized monitoring experience directly from the stage or studio.
The system is built around a modular architecture consisting of the PX-A beltpack mixer, PX-B 3-channel snake, and optional PX-H expansion hub. Together, these components deliver a scalable monitoring system suitable for solo performers, bands, rehearsal studios, and live venues.
Audio is transmitted through a single Cat-5 Ethernet connection from the PX-B snake to the PX-A beltpack, allowing up to three discrete audio feeds (typically vocals, instruments, and rhythm sections). Performers can adjust individual channel levels and master volume to build a custom monitor mix that suits their preference.
The PX system also supports Power over Ethernet (PoE), enabling both audio transmission and power delivery over a single cable when paired with a compatible power supply. This reduces stage cabling complexity and improves setup efficiency for live performance environments.
For larger setups, the PX-H hub expands the system to support multiple performers simultaneously, distributing the same three-channel mix to up to five PX-A units while allowing each musician independent control over their personal monitoring levels.
The system is designed for high reliability in live environments, offering stable signal transmission over long Cat-5 cable runs without audio degradation. It is ideal for bands, churches, theaters, and studio recording sessions where consistent and customizable monitoring is required.
Key Features
- Complete 3-channel personal monitoring system
- PX-A beltpack mixer with individual channel control
- PX-B snake with 3 XLR inputs and Cat-5 output
- PX-H hub supports up to 5 performers
- Cat-5 Ethernet audio transmission system
- Supports Power over Ethernet (PoE)
- Independent control of 3 audio channels per user
- Compatible with in-ear monitors and headphones
- Scalable system for bands and live productions
- Designed for stage, rehearsal, and studio use
Technical Specifications
- System Type: Wired personal monitoring system
- Audio Channels: 3 independent channels
- Transmission: Cat-5 Ethernet (digital audio + power)
- Input Type: XLR balanced (via PX-B snake)
- Output: 3.5mm stereo headphone output (PX-A)
- Power: PoE or AAA battery operation (PX-A)
- Battery Life: Up to approximately 5 hours
- Expansion: PX-H hub support for multi-user setups
- Cable Length: Up to 200 ft supported (Ethernet)
- Current Draw: Approx. 210 mA per PX-A unit
Package Includes

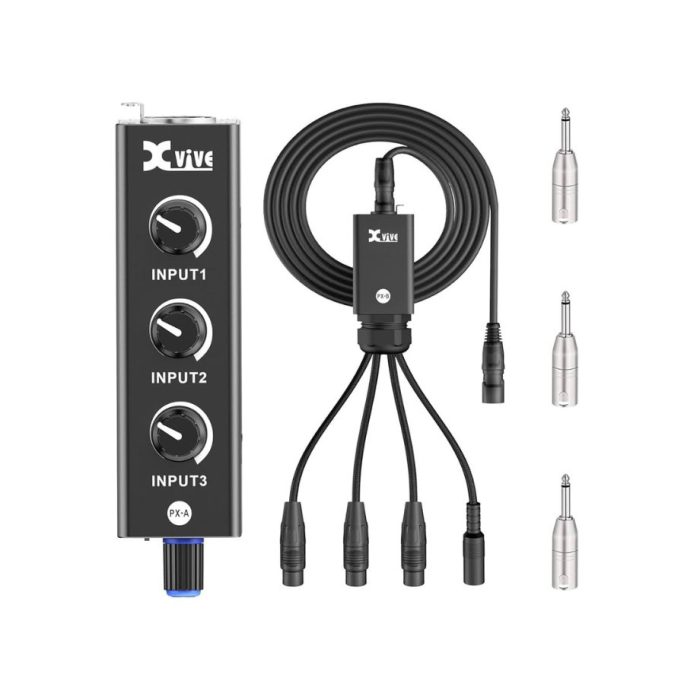

- PX-A Beltpack Mixer / Headphone Amplifier
- PX-B 3-Channel Snake
- 25 ft Cat-5 Ethernet Cable
- 3 × XLR to 1/4" TS Adapters
- User Manual
