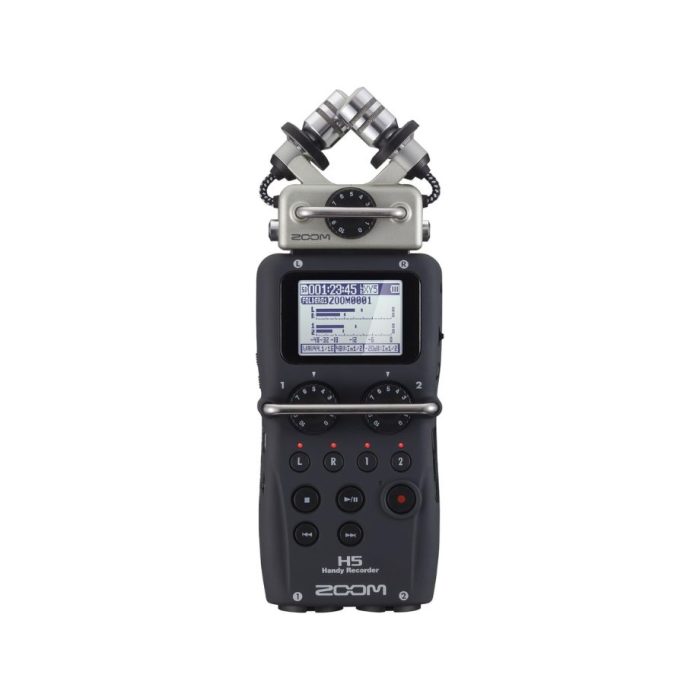

Zoom H5 Handy Recorder Interchangeable Capsule Portable Field Recorder
Brand
ZOOM
The Zoom H5 Handy Recorder is a versatile professional-grade portable audio recorder designed for musicians, filmmakers, podcasters, and field recordists. It features an interchangeable microphone capsule system with a high-quality X/Y stereo mic and supports up to 4-track simultaneous recording for flexible multi-source capture. With dual XLR/TRS inputs, it accommodates external microphones, instruments, and line-level devices with phantom power support for professional condenser mics. It records in high-resolution WAV up to 24-bit/96kHz, ensuring clear, detailed, and low-noise audio. Built-in effects, gain control, and a robust shock-resistant design make it ideal for studio, live, and location recording. Compact yet powerful, the H5 delivers reliable performance for demanding audio production workflows.
Zoom H5 Handy Recorder – Interchangeable Capsule Multi-Track Field Recorder
The Zoom H5 is a professional handheld audio recorder designed for filmmakers, musicians, podcasters, and field recordists who need flexible multi-track recording in a compact and rugged format. With interchangeable microphone capsules and studio-grade preamps, it delivers high-quality audio capture for both indoor and outdoor production environments.
Interchangeable Microphone Capsule System
The H5 features Zoom’s interchangeable capsule system, allowing users to swap microphone modules depending on recording needs. The included XYH-5 capsule provides a high-quality X/Y stereo configuration for accurate spatial imaging, while optional capsules expand recording flexibility for shotgun, mid-side, and multi-input setups.
Professional Multi-Track Recording
The H5 supports up to four simultaneous recording tracks, combining the onboard stereo microphones with external inputs. This makes it ideal for interviews, live music recording, podcasts, and film production where multiple audio sources must be captured independently.
High Sound Pressure Handling and Clean Audio
Engineered to handle loud environments, the H5 can capture sound levels up to 140 dB SPL without distortion. Built-in compression, limiting, and a low-cut filter help maintain clean audio by reducing clipping, wind noise, and unwanted low-frequency rumble.
Dual XLR/TRS Inputs with Phantom Power
The recorder includes two XLR/TRS combo inputs with support for mic and line-level signals. Each input has independent gain control and supports 12V, 24V, and 48V phantom power, making it compatible with professional condenser microphones and external audio gear.
Flexible Camera and Headphone Integration
A dedicated line output allows direct connection to DSLR cameras for synchronized audio recording, while a separate headphone output ensures real-time monitoring. This makes the H5 highly effective for video production workflows.
Smart Recording Features
The H5 includes advanced recording tools such as auto-record, pre-record (buffer capture before recording starts), and backup-record mode, ensuring no critical audio moment is missed during live recording situations.
USB Audio Interface Functionality
The device can also function as a USB audio interface for Mac, PC, and iOS devices, enabling direct recording into digital audio workstations and supporting streaming and podcast production workflows.
Key Features
- Interchangeable microphone capsule system (XYH-5 included)
- Up to 4-track simultaneous recording
- High-resolution audio up to 24-bit / 96 kHz WAV
- Dual XLR/TRS combo inputs with phantom power support
- Handles up to 140 dB SPL for loud environments
- Built-in compression, limiter, and low-cut filter
- Pre-record, auto-record, and backup-record functions
- USB audio interface mode for computer recording
Specifications
- Recording Format: WAV (up to 24-bit / 96 kHz), MP3
- Tracks: Up to 4 simultaneous tracks
- Inputs: 2 × XLR/TRS combo + capsule mic input
- Outputs: 3.5 mm headphone + line out
- Phantom Power: 12V / 24V / 48V
- Storage: SD/SDHC cards up to 32 GB
- Power: 2 × AA batteries or USB/AC adapter
- Battery Life: Approx. 10–15 hours depending on usage
Ideal For
The Zoom H5 is ideal for filmmakers, sound designers, musicians, journalists, and podcasters who require a reliable and flexible portable recorder capable of handling both simple and complex multi-source audio production workflows.
