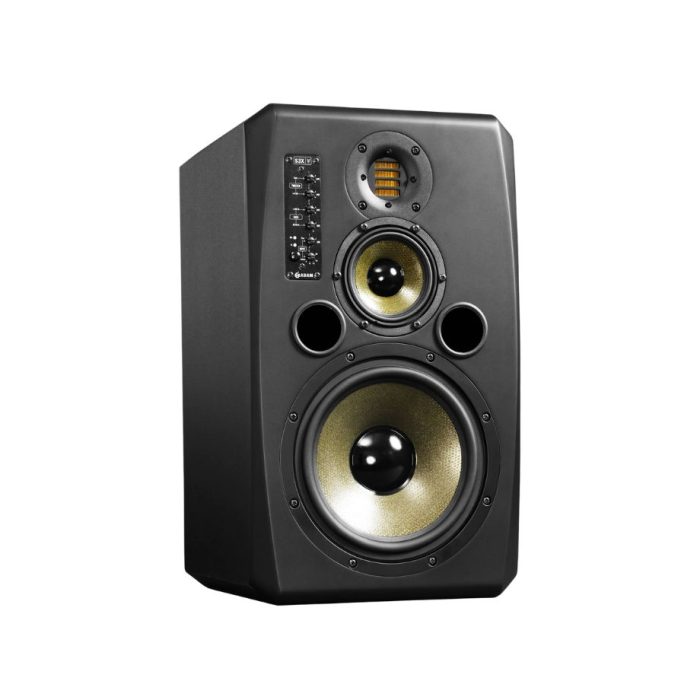

ADAM Audio S3X-V Active 3-Way Midfield Monitor
Brand
ADAM
The ADAM Audio S3X-V is a premier 3-way vertical midfield monitor from the high-end SX-Series. Combining a 9" HexaCone woofer, a 4.5" midrange driver, and the X-ART tweeter, it delivers a stunning 124dB peak SPL and an ultra-wide 32Hz–50kHz frequency range, making it the reference standard for recording studios and post-production houses in Dubai and the GCC.
ADAM Audio S3X-V: Vertical Midfield Precision Without Compromise
The ADAM Audio S3X-V is a vertically oriented 3-way active monitor designed for professional control rooms where clinical accuracy and high-pressure performance are mandatory. As a centerpiece of the legendary SX-Series, the S3X-V provides a transparent, homogeneous soundstage that allows for deep analytical listening during long production sessions. For elite studios in the UAE, the S3X-V is the benchmark for high-end midfield monitoring, offering the power to drive a large room with the delicacy of a high-resolution nearfield.
Advanced 3-Way Driver Technology
The S3X-V achieves its class-leading transparency through a sophisticated triple-driver array:
- Handmade X-ART Tweeter: Berlin-built with a 4:1 velocity transformation ratio, this ribbon tweeter reproduces frequencies up to 50kHz with zero compression, ensuring every high-end detail is fatigue-free.
- 4.5-Inch HexaCone Midrange: Dedicated solely to critical midrange frequencies, this driver ensures that vocals and instruments are reproduced with neutral, uncolored clarity.
- 9-Inch HexaCone Woofer: Utilizing a honeycomb Nomex core, the 9-inch woofer provides pulse-accurate, "bone-dry" bass response down to 32Hz, preventing the low-end mud often found in smaller systems.
Unrivaled Tri-Amplified Headroom
To ensure total control and dynamic authority, the S3X-V features a high-performance 550W RMS amplification system:
- Sophisticated Power: A 250W PWM amplifier drives the woofer, a 250W PWM amp powers the midrange, and a specialized 50W A/B amplifier is dedicated to the X-ART tweeter for ultra-low distortion.
- Massive Output: Capable of producing a peak SPL of ≥124dB per pair, providing the necessary headroom for high-volume tracking and critical mastering sessions.
- Acoustically Optimized Cabinet: The vertical design and front-firing reflex ports minimize diffraction and allow for placement closer to walls in professional UAE studio environments.
The Front-Panel SX Control Center
Calibrate your monitoring to your exact acoustic environment using the front-mounted control panel:
- Precision Gain Staging: Features both coarse (-20 to +8 dB) and fine (-1.5 to +2 dB) input sensitivity adjustments.
- Custom Room EQ: Includes an 80Hz boost (0 to +6 dB), high/low shelving filters (±4 dB), and a dedicated tweeter gain control (±2 dB) for surgical room compensation.
- Optional Digital Integration: Can be upgraded with an AES/EBU digital input for a lossless, high-resolution signal path.
Technical Specifications
- Tweeter: Handmade X-ART Accelerated Ribbon Tweeter.
- Midrange: 4.5" HexaCone Driver.
- Woofer: 9" HexaCone Bass Driver.
- Amplification: 550W Total RMS (250W LF + 250W MF + 50W HF).
- Frequency Response: 32 Hz – 50 kHz.
- Maximum SPL: ≥124 dB (per pair at 1m).
- Crossover Frequencies: 350 Hz / 2.8 kHz.
- Input Connectors: Balanced XLR.
- Dimensions (HxWxD): 485 mm x 281 mm x 295 mm.
- Weight: 15.4 kg (34 lbs) per unit.
Experience the elite standard of German monitoring. Order the ADAM Audio S3X-V from Gigstore today and reveal every detail in your mix.
