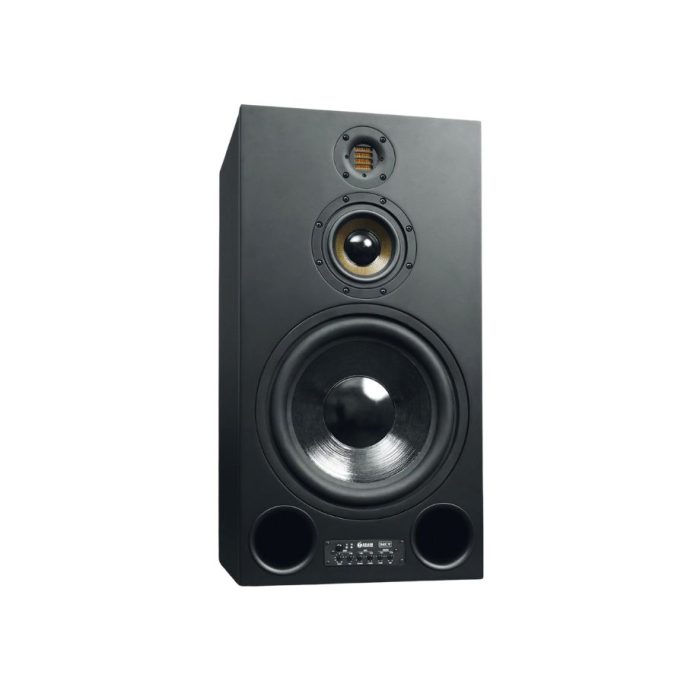

ADAM Audio S4X-V Active Midfield Monitor

ADAM Audio S4X-V: The Powerhouse of Professional Midfield Monitoring

The ADAM Audio S4X-V is a vertically oriented 3-way monitor that stands as a centerpiece in world-class recording and mastering facilities. Part of the uncompromising SX-Series, the S4X-V is engineered to provide an honest, high-resolution soundstage even at extreme sound pressure levels. For premier studios in the UAE, the S4X-V offers the raw power of a main monitor with the surgical precision of a nearfield reference, ensuring every nuance of the mix is audible from 28Hz to 50kHz.

Advanced 3-Way Driver Configuration

The S4X-V utilizes a sophisticated triple-driver array to achieve its legendary transparency and detail:

• Handmade X-ART Tweeter: Berlin-built with a 4:1 velocity transformation ratio, this ribbon tweeter provides effortless high-frequency reproduction up to 50kHz with zero compression or fatigue.
• 6-Inch HexaCone Midrange: Dedicated to the critical vocal and instrument frequencies, the HexaCone driver offers an ultra-rigid, lightweight design that ensures a perfectly neutral and uncolored midrange.
• 12-Inch HexaCone Woofer: A massive long-throw driver that delivers "bone-dry," pulse-accurate bass down to 28Hz, providing the low-end authority required for modern cinematic and electronic music production.

Unrivaled Tri-Amplified Performance

To ensure total control over its massive driver array, the S4X-V features a high-performance 800W RMS amplification system:

• Dual PWM and A/B Amps: A 500W PWM amplifier drives the woofer, a 250W PWM amp handles the midrange, and a specialized 50W A/B amplifier powers the X-ART tweeter for ultra-low distortion in the high-end.
• Exceptional Headroom: With a peak SPL of ≥128dB per pair, the S4X-V maintains its analytical clarity even during high-pressure sessions in large UAE control rooms.
• Vertical Dispersion Optimization: The vertical arrangement is designed to minimize early reflections from consoles and desks, providing a more accurate stereo image.

Professional SX Panel Calibration

The front-mounted SX panel allows for surgical acoustic adjustment to match your studio's unique environment:

• Surgical Gain Staging: Coarse and fine input sensitivity controls allow for perfect integration with any high-end console or interface.
• Acoustic EQ Suite: Includes an 80Hz boost (0 to +6 dB) plus high and low shelving filters (±4 dB) to calibrate the monitor to your room's specific acoustics in Dubai or Riyadh.
• Digital Ready: Can be optionally equipped with an AES/EBU digital input for a completely lossless signal path.

Technical Specifications

• Tweeter: Handmade X-ART Accelerated Ribbon Tweeter.
• Midrange: 6" HexaCone Driver.
• Woofer: 12" HexaCone Bass Driver.
• Amplification: 800W Total RMS (500W LF + 250W MF + 50W HF).
• Frequency Response: 28 Hz – 50 kHz.
• Maximum SPL: ≥128 dB (per pair at 1m).
• Crossover Frequencies: 280 Hz / 2.8 kHz.
• Input Connectors: Balanced XLR.
• Dimensions (HxWxD): 690 mm x 360 mm x 445 mm.
• Weight: 35.6 kg (78.5 lbs) per unit.

Uncompromised authority. Surgical detail. Order the ADAM Audio S4X-V from Gigstore today and experience the ultimate in professional midfield monitoring.
