ADAM Audio S3X-H Active 3-Way Midfield Monitor
Brand
ADAM

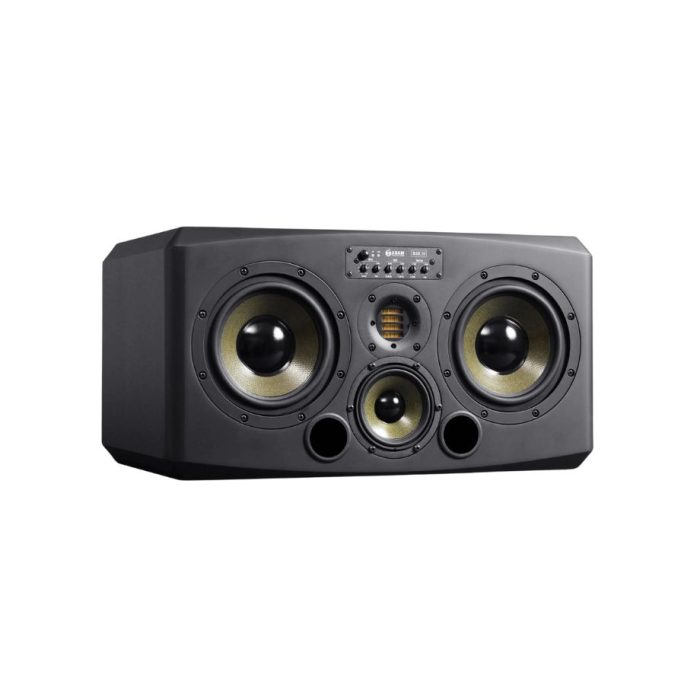

The ADAM Audio S3X-H is an industry-standard 3-way horizontal midfield monitor from the celebrated SX-Series. Featuring dual 7.5" HexaCone woofers, a dedicated 4.5" midrange driver, and the handmade X-ART tweeter, it offers an expansive stereo image and transparent audio reproduction. It is the go-to reference monitor for mid-sized control rooms and broadcast suites across Dubai and the UAE.
ADAM Audio S3X-H: Horizontal Midfield Excellence
The ADAM Audio S3X-H is a world-class 3-way horizontal monitor designed for midfield applications where power and precision must go hand-in-hand. As a centerpiece of the SX-Series, the S3X-H is engineered to provide an honest, high-resolution soundstage that reveals every detail of a mix without listener fatigue. For premier recording and post-production facilities in the UAE, the S3X-H offers the headroom of a large-format monitor with the analytical clarity required for critical decision-making.
Advanced 3-Way Driver Integration
The S3X-H utilizes a sophisticated triple-driver array to deliver a perfectly balanced and detailed sonic image:
- Handmade X-ART Tweeter: Berlin-built with a 4:1 velocity transformation ratio, this ribbon tweeter reproduces harmonics up to 50kHz with lightning-fast transient response and zero compression.
- 4.5-Inch HexaCone Midrange: Dedicated solely to the critical midrange frequencies, this driver ensures that vocals and instruments are reproduced with neutral, uncolored transparency.
- Dual 7.5-Inch HexaCone Woofers: Two pulse-accurate woofers provide "bone-dry" low-end down to 32Hz. The horizontal dual-woofer configuration increases displacement, allowing for higher SPL without distortion.
Powerful Tri-Amplified Architecture
To ensure total control over its sophisticated driver array, the S3X-H features a massive 800W RMS amplification system:
- Unmatched Headroom: Features 2 x 250W PWM amplifiers for the woofers, 250W PWM for the midrange, and a specialized 50W A/B amplifier for the X-ART tweeter to ensure high-end purity.
- Exceptional Stereo Imaging: The horizontal arrangement and symmetrical driver placement create an exceptionally wide "sweet spot," making it ideal for large console bridges in UAE studios.
- Front-Firing Ports: Dual front-panel ports are optimized for minimal air turbulence, ensuring accurate bass reproduction even when placed near studio boundaries.
Professional Calibration via the SX Panel
The front-mounted SX panel allows for surgical acoustic adjustment to match any professional environment:
- Surgical Gain Staging: Coarse (-20 to +8 dB) and fine (-1.5 to +2 dB) input sensitivity controls for perfect integration with elite interfaces and consoles.
- Room Correction EQ: Includes an 80Hz boost (0 to +6 dB), high and low shelving filters (±4 dB), and dedicated tweeter gain (±2 dB) for precise room compensation.
- Digital Ready: Can be optionally equipped with an AES/EBU digital input for a lossless, high-resolution signal path.
Technical Specifications
- System Type: 3-Way Horizontal Active Midfield Monitor.
- Drivers: 2 x 7.5" HexaCone Woofers, 4.5" HexaCone Midrange, X-ART Tweeter.
- Amplification: 800W Total RMS (500W LF + 250W MF + 50W HF).
- Frequency Response: 32 Hz – 50 kHz.
- Maximum SPL: ≥126 dB (per pair at 1m).
- Crossover Frequencies: 350 Hz / 2.8 kHz.
- Weight: 19.6 kg (43.2 lbs) per unit.
- Dimensions (HxWxD): 280 mm x 530 mm x 320 mm.
Step up to the horizontal reference standard. Order the ADAM Audio S3X-H from Gigstore today and transform your midfield monitoring experience.
