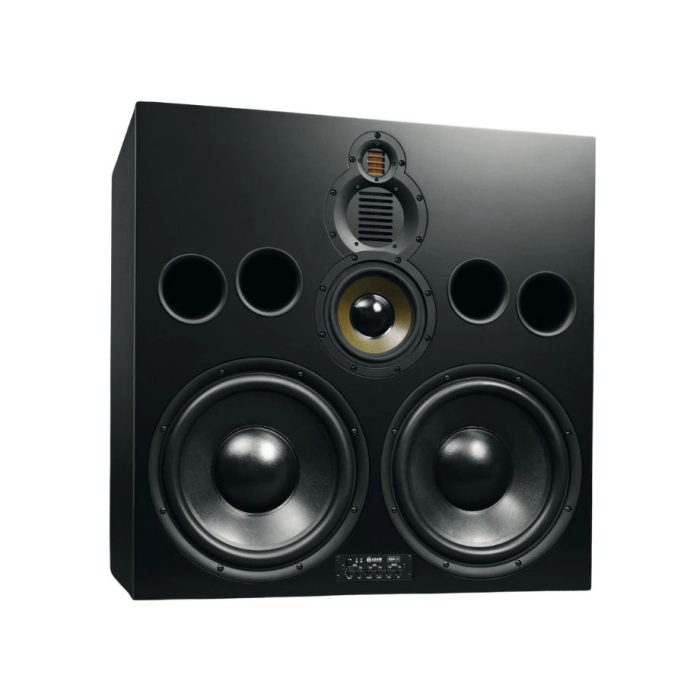

ADAM Audio S5X-H Active 4-Way Main Monitor
Brand
ADAM
The ADAM Audio S5X-H is a high-end 4-way horizontal main monitor from the SX-Series. Designed for large control rooms, it features dual 12" HexaCone woofers, a 7.5" bass-mid driver, and both X-ART midrange and tweeter units. With a staggering 131dB peak SPL and a sub-sonic 24Hz reach, it is the definitive reference system for world-class recording and mastering facilities in Dubai and the GCC.
ADAM Audio S5X-H: The Flagship Horizontal Main Monitor
The ADAM Audio S5X-H is a professional 4-way main monitor engineered for the world’s most demanding large-scale studios. As the horizontal flagship of the SX-Series, it is built to handle massive dynamic peaks and high sound pressure levels without sacrificing the clinical transparency for which ADAM is known. For world-class facilities in the UAE, the S5X-H represents the ultimate reference system, capable of filling large control rooms with an effortless, detailed, and pulse-accurate soundstage from the deepest sub-bass to the highest harmonic overtones.
Unrivaled 4-Way Driver Architecture
The S5X-H utilizes a comprehensive five-driver system to achieve its massive frequency range and high-resolution imaging:
- Dual 12-Inch HexaCone Woofers: Two massive long-throw drivers deliver foundational bass down to 24Hz with zero compression, ensuring a powerful and "bone-dry" low-end.
- 7.5-Inch HexaCone Mid-Woofer: Bridging the gap between the sub-bass and midrange, this driver ensures a seamless transition and superior transient response in the lower-mid frequencies.
- X-ART Midrange and Tweeter: Proprietary Berlin-built ribbon technology brings X-ART transparency to the crucial midrange and high-frequency bands. The midrange unit features a massive 26 inch² diaphragm for incredible vocal and instrument presence.
Massive 1750W Five-Amplifier System
To provide total authority over its massive driver complement, the S5X-H is powered by an array of high-performance amplifiers:
- Unmatched Headroom: Features 2 x 500W PWM amps for the woofers, 250W PWM for the mid-woofer, 250W PWM for the midrange, and a specialized 250W PWM amp for the tweeter, totaling 1750W RMS.
- Extreme SPL: Capable of delivering ≥131dB per pair, making it one of the most powerful main monitors available for large UAE tracking and mixing sessions.
- Front-Firing Large Ports: Specifically designed to handle massive air movement with minimal turbulence, allowing the S5X-H to be positioned closer to walls or flush-mounted.
Surgical SX Panel Calibration
The S5X-H features the comprehensive SX front panel for precise in-room tuning:
- Professional Gain Staging: Coarse (-20 to +8 dB) and fine (-1.5 to +2 dB) input sensitivity controls ensure perfect matching with elite consoles.
- Acoustic Optimization: Includes an 80Hz boost (0 to +6 dB), high and low shelving filters (±4 dB), and tweeter gain (±2 dB) for surgical calibration in any acoustic environment.
- Lossless Integration: Can be optionally fitted with an AES/EBU digital input for the purest signal path possible.
Technical Specifications
- System Type: 4-Way Horizontal Active Main Monitor.
- Drivers: 2 x 12" HexaCone Woofers, 1 x 7.5" HexaCone Mid-Woofer, X-ART Midrange, X-ART Tweeter.
- Total Power: 1750W RMS / 2450W Music.
- Frequency Response: 24 Hz – 50 kHz.
- Maximum SPL: ≥131 dB (per pair at 1m).
- Crossover Frequencies: 200 Hz / 800 Hz / 4000 Hz.
- Weight: 63.4 kg (139.8 lbs) per unit.
- Dimensions (HxWxD): 700 mm x 700 mm x 473 mm.
Experience the ultimate in main monitoring authority. Order the ADAM Audio S5X-H from Gigstore today and set the standard for your professional studio.
