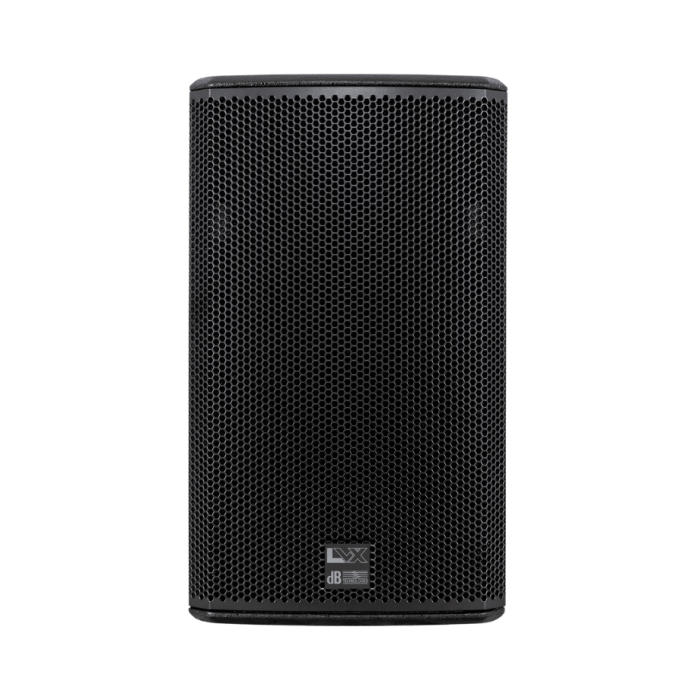

dBTechnologies LVX 12 2-Way Active Speaker
Brand
D B TECHNOLOGIES
Deliver crisp, full-range sound across any medium with the dBTechnologies LVX 12 active speaker. Engineed for precise speech clarity, balanced background music, and energetic live sound performances, the LVX 12 offers dynamic acoustic projection tailored to fit a wide range of commercial and live event spaces.
Engineered for ultimate versatility and accurate acoustic reproduction, the dBTechnologies LVX 12 is a professional 2-way active speaker featuring a robust 12-inch woofer, a rotatable constant directivity horn, and advanced digital signal processing tailored for live sound reinforcement, fixed installations, and stage monitoring.
Key Features & Engineering
- Digipro® G2 Class-D Amplification: Driven by an efficient 800W PRG (1600W Peak) digital amplifier that guarantees silent operation with minimal thermal dissipation, onboard crossover, and precise acoustic alignment.
- High-Performance Transducers: Pairs a responsive 12" low-frequency woofer (2" voice coil) with a 1" compression driver coupled to a rotatable 90° x 40° constant directivity CD horn.
- Multifunctional Plywood Enclosure: Constructed from durable 12mm multiplex plywood featuring an elegant finish, 3 integrated handles, a 36mm pole mount cup, and a 45° rear cabinet angle for seamless deployment as a floor monitor.
- Onboard DSP & System Presets: Incorporates a 24-bit/48 kHz digital controller with dual active peak, RMS, and thermal limiters, alongside switchable EQ presets (Flat / Processed) for rapid adaptation to various audio environments.
Technical Specifications
| Speaker Type | 2-Way Active Speaker |
|---|---|
| Frequency Response [-6 dB] | 62 - 19,000 Hz |
| Frequency Response [-10 dB] | 55 - 20,000 Hz |
| Max SPL | 127 dB |
| Low Frequency Driver (LF) | 12" Woofer (2" Voice Coil) |
| High Frequency Driver (HF) | 1" Compression Driver (1" Voice Coil) |
| Directivity & Horn | 90° x 40° Rotatable CD Horn |
| Amplifier Technology | Digipro® G2 Class-D with SMPS |
| Power Output | 800 W PRG (1600 W Peak) |
| Controller & DSP | DSP 24-bit/48 kHz with Flat and Processed System Presets |
| Crossover Frequency | 1800 Hz (24 dB/Octave slope) |
| Enclosure Material | 12mm Multiplex Plywood with 45° monitor angle |
| Rigging & Mounting | 12x M10 rigging points, D36mm pole mount cup, and 3 ergonomic handles |
| Dimensions (W x H x D) | 360 mm x 610 mm x 360 mm (14.2 in x 24.0 in x 14.2 in) |
| Weight | 17 kg (37.5 lbs) |
