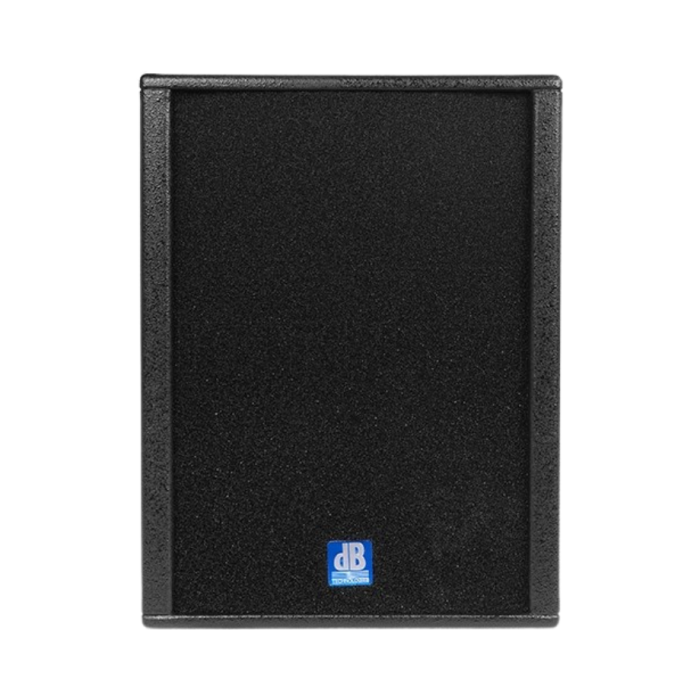

dBTechnologies Arena SW18 Pro 18" Passive Subwoofer
Brand
D B TECHNOLOGIES
Upgrade your sound reinforcement system with the high-output performance of the dBTechnologies Arena SW18 Pro Passive Subwoofer. Fitted with an upgraded 18-inch high-excursion woofer and a large 4-inch voice coil, this professional passive subwoofer handles an impressive 1000W RMS (2000W Program) power to deliver rich, thunderous bass extending down to 35 Hz with a maximum output of 134 dB SPL. It is designed to match high-power full-range cabinets like the Arena 15 Pro for large concert stages, touring rigs, and club installations.
Deliver massive, high-capacity low-frequency impact to your professional sound reinforcement setups with the dBTechnologies Arena SW18 Pro, a powerful passive 18-inch subwoofer housed in a robust bass-reflex enclosure engineered for demanding live music venues, clubs, and touring PA systems.
Key Features & Engineering
- High-Performance 18-Inch Transducer: Equipped with a robust 18" woofer featuring a massive 4" voice coil designed to handle up to 1000W RMS (2000W Program) for exceptional dynamic range and punchy bass reproduction down to 35 Hz.
- High SPL Output: Engineered to produce a striking maximum sound pressure level of up to 134 dB, ensuring deep, room-filling low-end projection across large spaces.
- Tour-Ready Enclosure: Built from heavy-duty multiplex birch plywood protected by a durable textured finish and a strong metal front grille.
- Convenient Mounting & Connectivity: Features an integrated M20 pole mount plate on top for satellite speaker stacking and reliable Speakon input/output connectors for straightforward system integration.
Technical Specifications
| Speaker Type | Passive Subwoofer |
|---|---|
| Nominal Power Rating (RMS) | 1000 W |
| Program Power Rating | 2000 W |
| Nominal Impedance | 8 Ohms |
| Frequency Response [+/- 3 dB] | 35 Hz - X-Over |
| Max SPL | 134 dB |
| Low Frequency Driver (LF) | 18" Woofer (4" Voice Coil) |
| Audio Connectors | 1x Speakon Input (Pin 1+=+, Pin 1-=-), 1x Speakon Output (Pin 1+=+, Pin 1-=-) |
| Housing Material | Multiplex Birch Plywood |
| Pole Mount | M20 Threaded Plate |
| Dimensions (W x H x D) | 565 mm x 700 mm x 700 mm (22.6 in x 28 in x 28 in) |
| Weight | 43.2 kg (95.24 lbs) |
