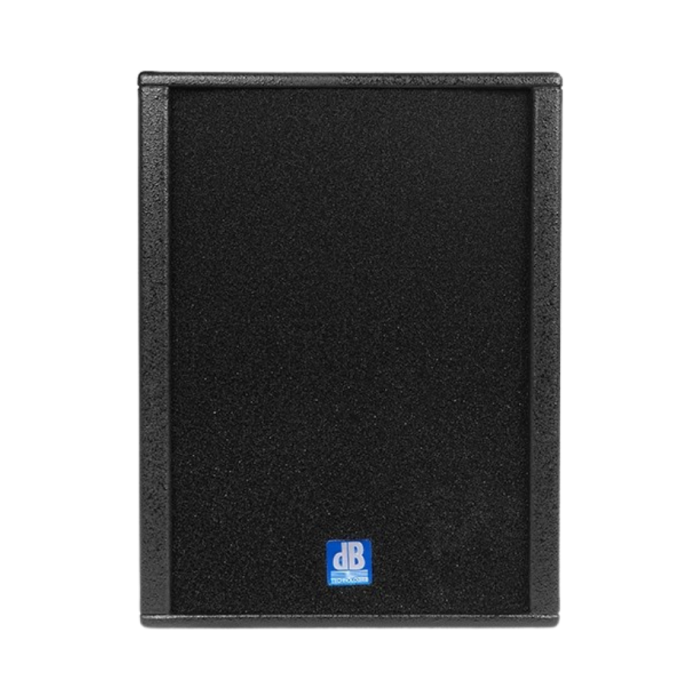

dBTechnologies Arena SW15 15" Passive Subwoofer
Brand
D B TECHNOLOGIES
Expand the low-frequency capacity of your sound system with the dBTechnologies Arena SW15 Passive Subwoofer. Equipped with a high-performance 15-inch woofer and a 3-inch voice coil, this sub handles 500W RMS (1000W Program) power handling, delivering tight, dynamic bass response down to 40 Hz with a maximum output of 130 dB SPL. It is specifically designed to complement mid/high full-range loudspeakers, such as the Arena 10 and Arena 12, to form a complete, balanced PA setup.
Deliver punchy, robust low frequencies to your portable sound reinforcement setups with the dBTechnologies Arena SW15, a high-output passive 15-inch subwoofer engineered for live music venues, mobile PA rigs, clubs, and band performances.
Key Features & Engineering
- High-Performance 15-Inch Woofer: Equipped with a powerful 15" woofer featuring a 3" voice coil designed to handle up to 500W RMS (1000W Program) and produce a maximum SPL of 130 dB.
- Built-In Passive Crossover: Features an internal passive low-pass filter (150 Hz crossover frequency) that allows for effortless setup with passive full-range cabinets like the Arena 10 or Arena 12, while also supporting bi-amplified configurations using an external controller.
- Tour-Ready Enclosure: Housed in a durable rectangular multiplex birch cabinet finished with a scratch-resistant textured black acrylic lacquer and a protective metal front grille with acoustic foam.
- Convenient Mounting & Transport: Includes an integrated M20 pole mount plate on top for mounting satellite speakers and sturdy recessed side handles for easy lifting and transport.
Technical Specifications
| Speaker Type | Passive Subwoofer |
|---|---|
| Nominal Power Rating (RMS) | 500 W |
| Program Power Rating (PRG) | 1000 W |
| Nominal Impedance | 8 Ohms |
| Frequency Response [-3 dB] | 40 - 150 Hz |
| Max SPL | 130 dB |
| Low Frequency Driver (LF) | 15" Woofer (3" Voice Coil) |
| Internal Crossover | Passive Low-Pass at 150 Hz (12 dB/Octave slope) |
| Audio Connectors | 2x Neutrik Speakon® (Pin 1+=+, Pin 1-=-) |
| Housing Material | Multiplex Birch Plywood |
| Pole Mount | M20 Threaded Plate on Top |
| Dimensions (W x H x D) | 470 mm x 600 mm x 600 mm (18.5 in x 23.6 in x 23.6 in) |
| Weight | 34 kg (74.96 lbs) |
