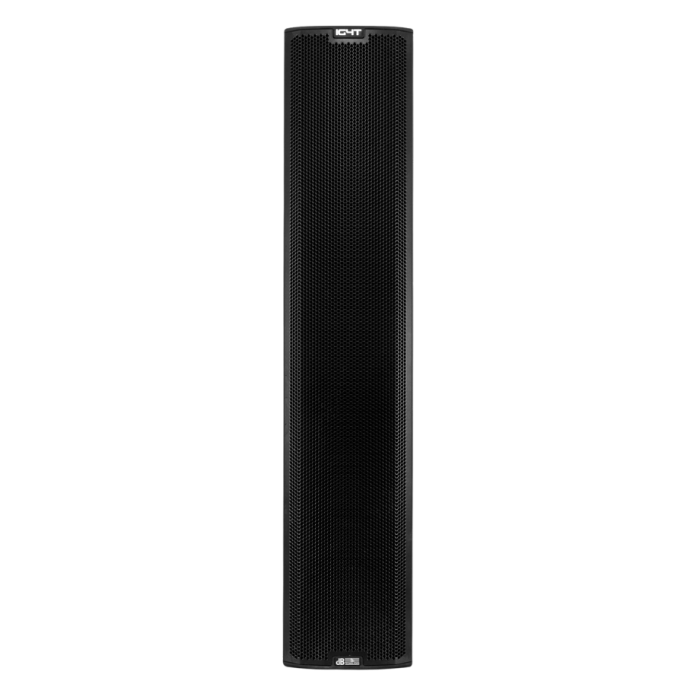

dBTechnologies INGENIA IG4T Active Column Loudspeaker
Brand
D B TECHNOLOGIES
Experience high-output vertical coverage and sophisticated digital sound processing with the dBTechnologies INGENIA IG4T Active Column Loudspeaker. Engineered for live sound performance, corporate events, houses of worship, and acoustic touring setups, this high-performance active column incorporates four 6.5-inch neodymium woofers (1.5" voice coil) and a 1.4-inch neodymium compression driver (1.4" voice coil) paired with a vertically asymmetric horn. Driven by a 900W RMS (1800W Peak) Class-D Digipro G3 power amplifier, the IG4T delivers full-range acoustic power down to 74 Hz with an exceptional maximum output of 132 dB SPL.
Combining smart digital dispersion steering with exceptional acoustic performance, the dBTechnologies INGENIA IG4T is an advanced 2-way active column speaker engineered to deliver powerful sound reinforcement, modular scalability, and flawless intelligibility for live performances and permanent installations.
Key Features & Engineering
- Digipro® G3 Class-D Amplification: Powered by an ultra-efficient 900W RMS (1800W Peak) digital amplifier that delivers massive output power while maintaining minimal energy consumption and reliable thermal stability.
- High-Performance Neodymium Transducers: Features four 6.5" neodymium low-frequency woofers paired with a single large 1.4" neodymium compression driver featuring a 3" titanium voice coil.
- Asymmetrical Horn & Advanced DSP: Incorporates a vertically asymmetrical HF horn design and 56-bit DSP processing with linear phase FIR filters, ensuring a wide, highly uniform audience coverage pattern.
- Modular Element Position Detection (EPD): Features infrared technology that automatically detects when a second Ingenia speaker is coupled, configuring the onboard setup wizard for seamless array alignment.
Technical Specifications
| Speaker Type | 2-Way Active Column Speaker |
|---|---|
| Frequency Response [-6 dB] | 88 - 19,200 Hz |
| Frequency Response [-10 dB] | 74 - 20,000 Hz |
| Max SPL | 132 dB |
| Low Frequency Drivers (LF) | 4x 6.5" Neodymium Woofers (1.5" Voice Coils) |
| High Frequency Driver (HF) | 1.4" Neodymium Compression Driver (3" Voice Coil) |
| Amplifier Technology | Digipro® G3 Class-D |
| RMS Power | 900 W RMS (1800 W Peak) |
| Controller | DSP 56-bit with Linear Phase FIR Filters & Dual Active Limiters |
| Crossover Frequency | 1100 Hz |
| Enclosure Material | Reinforced Polypropylene (PP) with intuitive OLED interface & self-rotating display |
| Rigging & Mounting | Integrated flying hardware points and standard pole mount socket |
| Dimensions (W x H x D) | 195 mm x 956 mm x 271 mm (7.7 in x 37.6 in x 10.7 in) |
| Weight | 18.2 kg (40.0 lbs) |
Pro Audio Solutions at Gigstore UAE
Elevate your portable PA systems, auditoriums, and architectural audio deployments with authentic professional equipment from Gigstore—your trusted supplier for industry-standard sound reinforcement across Dubai, Abu Dhabi, and the UAE. Count on genuine products, professional expertise, and fast regional delivery.
| Brands | D B TECHNOLOGIES |
|---|
