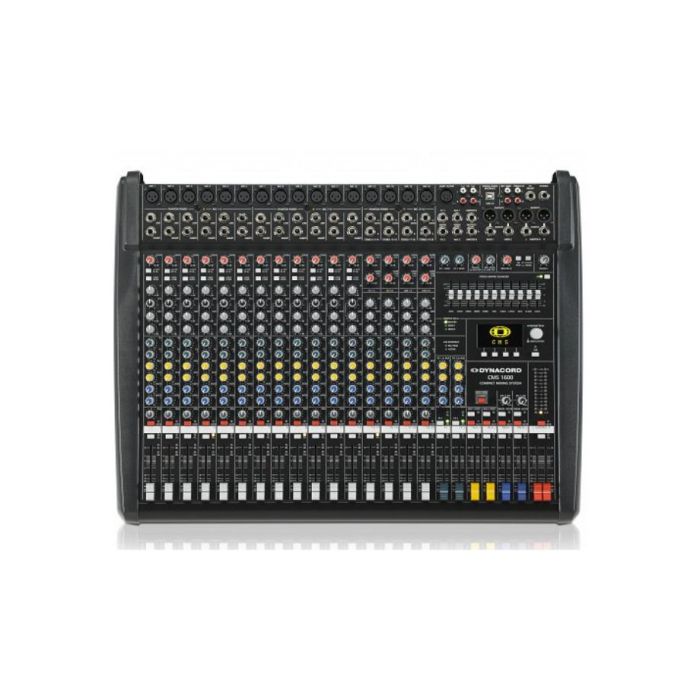

Dynacord CMS 1600-3 16-Channel Digital Mixing Console USB FX 4x4 Interface

Overview

The Dynacord CMS 1600-3 is a professional 16-channel compact mixing system designed for high-quality live sound reinforcement, installation, and recording applications. It combines a premium analog mixing console, dual studio-grade digital effects processors, a professional USB audio interface, and flexible routing tools in a robust and portable chassis engineered for demanding audio environments.

Part of the Dynacord CMS series, it is widely used by sound engineers, bands, houses of worship, and rental companies who require reliability, excellent audio quality, and integrated digital workflow in a compact format.

Key Features

• 16 Input Channels: 12 mic/line channels and 4 mic/stereo line channels for flexible mixing configurations.
• Dual Studio-Grade FX Engines: Two independent 24-bit effects processors with 100 factory presets and user memory storage.
• Professional USB Audio Interface: 4-in/4-out 24-bit / 96 kHz interface for recording, playback, and DAW integration.
• 11-Band Stereo Graphic EQ: Flexible system tuning for main or monitor outputs.
• 6 Auxiliary Buses: Multiple pre/post switching options for monitoring and external processing.
• Low-Noise Mic Preamps: High-quality discrete preamplifiers for clean and transparent audio capture.
• MIDI Integration: Supports external control and instrument integration.
• Integrated DSP Workflow: Feedback filters, voice filters, and system processing tools for live optimization.

Performance and Usability

The CMS 1600-3 is engineered as a complete compact mixing solution, reducing the need for external processing equipment. Its intuitive layout allows fast operation in live environments, while its high-quality components ensure consistent audio performance across different applications.

The integrated USB interface enables seamless recording and streaming workflows, while the dual effects engines provide flexible sound shaping for vocals, instruments, and live mixes.

Ideal Applications

• Live concerts and touring bands
• Houses of worship and speech systems
• Clubs, theaters, and performance venues
• Corporate events and conferences
• Recording and streaming setups

Why Choose the Dynacord CMS 1600-3?

The Dynacord CMS 1600-3 is a professional-grade compact mixer that delivers a strong balance of analog sound quality and digital flexibility. It is designed for users who need a reliable, all-in-one mixing solution with advanced processing, USB recording capability, and robust build quality.

Key Specifications

• Type: Compact analog/digital mixing system
• Channels: 16 total inputs
• Mic/Line Inputs: 12 + 4 stereo mic/line
• FX Engines: Dual 24-bit multi-effects processors
• USB Interface: 4-in / 4-out, 24-bit / 96 kHz
• EQ: 11-band stereo graphic EQ
• Aux Sends: 6 auxiliary buses (pre/post configurable)
• Connectivity: USB, MIDI, balanced I/O
• Application: Live sound, installations, recording, PA systems
