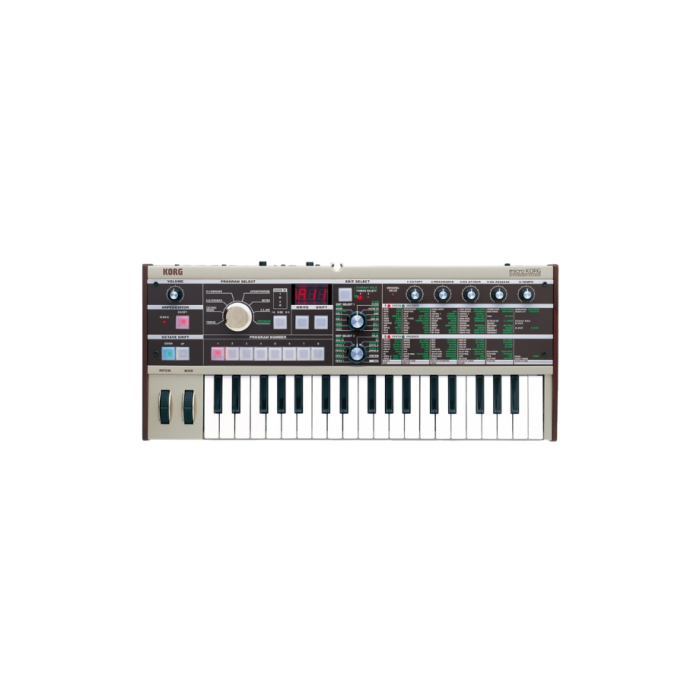

Korg microKORG Synthesizer / Vocoder

The Korg microKORG Synthesizer/Vocoder is one of the most iconic compact synthesizers ever released, combining powerful analog-modeling synthesis with a built-in vocoder in a portable, performance-ready format. Designed for musicians, producers, and live performers, it delivers classic subtractive synthesis, rich modulation capabilities, and instantly playable presets in a compact 37-key instrument that has become a global industry standard.

Powered by Korg’s DSP-based analog modeling engine (derived from the MS2000 architecture), the microKORG delivers warm, aggressive, and highly programmable sound design capabilities. Each voice uses a dual-oscillator structure with a wide range of waveforms including analog-style shapes, noise, and DWGS digital waveforms, enabling everything from vintage pads and basses to modern electronic textures and experimental sound design.

With its integrated 8-band vocoder, onboard effects, arpeggiator, and hands-on control interface, the microKORG is engineered for both studio production and live performance. Its compact size, battery operation, and immediate control layout make it one of the most widely used hardware synths in electronic, pop, indie, and experimental music.

Key Features

• 37-key velocity-sensitive mini keyboard
• DSP analog modeling synthesis engine (MS2000-derived architecture)
• Dual-oscillator structure with wide waveform selection (including DWGS and VOX waves)
• 4-voice polyphony with dual-timbre layering capability
• 8-band vocoder with included gooseneck microphone
• Multi-mode resonant filter (-12 dB/-24 dB LPF, BPF, HPF)
• Two LFOs and dual envelope generators (EGs)
• Virtual Patch modulation matrix (4 routings per program)
• 128 editable programs with genre-based organization
• Built-in modulation effects, delay effects, and EQ
• Six-pattern arpeggiator with adjustable step editing
• External audio input processing through filter and effects section

Analog-Modeling Sound Engine

At the core of the microKORG is a DSP-based analog modeling engine designed to emulate the warmth and behavior of classic subtractive synthesizers. Each timbre consists of two oscillators plus noise, allowing complex layering, detuning, and modulation.

Oscillator 1 includes traditional analog waveforms such as saw, square, triangle, and sine, as well as VOX waveforms and 64 DWGS waveforms derived from Korg’s classic digital synthesis heritage. Oscillator 2 supports additional waveforms and enables ring modulation and sync modulation for harmonic complexity.

This architecture allows the creation of everything from thick basses and shimmering pads to aggressive leads and evolving textures suitable for modern electronic production.

Filter, Modulation & Sound Shaping

The microKORG features a flexible multi-mode filter section with 12 dB and 24 dB low-pass options, band-pass, and high-pass modes. Resonance can be pushed into self-oscillation, enabling classic analog-style tonal shaping and aggressive resonant sweeps.

Dual envelope generators and two LFOs provide deep modulation capability, while the Virtual Patch system allows routing modulation sources (LFOs, envelopes, keyboard tracking, controllers) to multiple destinations such as pitch, cutoff, and amplitude.

Integrated Vocoder System

One of the defining features of the microKORG is its built-in 8-band vocoder, which allows users to process vocal input through synthesized tones. Using the included microphone, musicians can create classic robotic vocal effects, harmonized textures, and frozen formant sounds.

The vocoder can also be used creatively with sustained formant capture and keyboard control, enabling playable vocal textures and experimental sound design beyond traditional voice processing.

Performance Features

Designed for live use, the microKORG includes a straightforward interface with four assignable knobs that control key synthesis parameters in real time. This allows immediate adjustment of filter cutoff, resonance, envelope shaping, and modulation without navigating deep menus.

The onboard arpeggiator offers multiple pattern modes including up, down, random, and trigger variations, making it ideal for rhythmic sequencing and live performance layering.

Connectivity & Integration

The microKORG includes MIDI In, Out, and Thru for integration with external hardware and DAW setups. It also features stereo audio outputs, headphone output, and dual audio inputs for processing external signals through its synthesis engine.

In addition, the unit supports USB MIDI (via later revisions/interfaces) and can function as a compact controller keyboard for software instruments.

Design & Portability

Compact, lightweight, and battery-powered, the microKORG is designed for mobile production and live performance setups. Its retro-inspired design with wooden side panels and compact control layout has made it a recognizable staple on stages and in studios worldwide.

Technical Specifications

• Keyboard: 37-key velocity-sensitive mini keyboard
• Polyphony: 4 voices
• Synthesis Type: DSP analog modeling synthesis
• Oscillators: 2 per timbre + noise generator
• Waveforms: Analog-style waves, VOX waves, DWGS (64), noise
• Filters: Multi-mode (LPF -12/-24 dB, BPF, HPF)
• LFOs: 2 per program
• Envelopes: 2 ADSR EGs
• Programs: 128 user programs
• Effects: Modulation, delay, EQ
• Arpeggiator: 6 pattern types
• Vocoder: 8-band with included microphone
• Audio Inputs: 2 external inputs (line/mic selectable)
• Audio Outputs: L/MONO, R, headphone output
• MIDI: In / Out / Thru
• Power: AC adapter or 6× AA batteries
• Weight: Approx. 2.2 kg

Ideal Applications

The Korg microKORG is ideal for musicians and producers seeking a compact, versatile synthesizer with immediate hands-on control and classic analog-style sound design capabilities. It is particularly suited for:

• Electronic music production (house, techno, ambient, synthwave)
• Live performance and touring musicians
• Sound design and experimental synthesis
• Vocal processing and vocoder performance
• Beginners learning subtractive synthesis fundamentals
• Studio and mobile production setups

Summary

The Korg microKORG Synthesizer/Vocoder remains one of the most influential compact synthesizers in modern music production. With its dual-oscillator analog modeling engine, versatile filter system, integrated vocoder, and performance-focused interface, it delivers a powerful balance of portability, sound design depth, and real-time control. Its enduring popularity stems from its ability to deliver professional-grade synthesis in an accessible, compact format suitable for both stage and studio environments.
