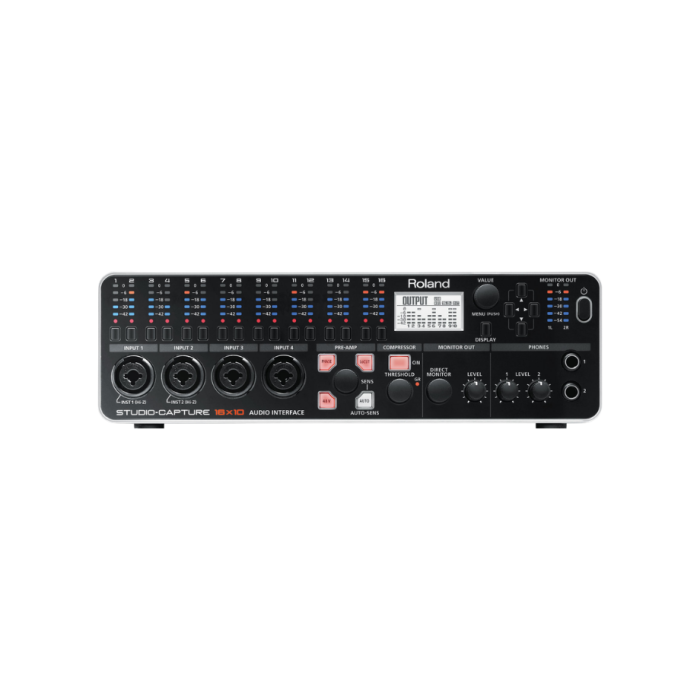

Roland STUDIO-CAPTURE UA-1610 USB Audio Interface

Achieve Flagship Multi-Channel Tracking with the Roland Studio-Capture USB Audio Interface

For commercial recording studios, professional music producers, and touring bands across the UAE, the Roland Studio-Capture (UA-1610) raises the bar for computer-based audio production. When tracking a full live drum kit, a multi-piece ensemble, or a massive wall of hardware synthesizers, typical desktop interfaces simply run out of inputs. The Roland Studio-Capture resolves this completely, packing a massive 16-channel input array, 10 distinct audio outputs, and high-end 24-bit/192 kHz conversion into a portable, tabletop chassis that elevates any studio setup in Dubai, Abu Dhabi, and beyond.

12 Premium VS Preamps for Pristine, High-Headroom Capture

The foundation of the Studio-Capture’s exceptional sonic transparency is its suite of 12 digitally controlled, premium-grade VS Preamps. Inherited directly from Roland’s flagship high-end digital mixing consoles, these pro-level preamps deliver ultra-low noise, immense dynamic headroom, and a crystal-clear frequency response. Each of the 12 combo XLR/TRS inputs features independent 48V phantom power, a digital low-cut filter, phase inversion toggle, and a dedicated onboard digital compressor, ensuring your acoustic instruments and vocals are tracked with absolute fidelity before they ever hit your DAW.

Intelligent One-Touch AUTO-SENS Level Calibration

Calibrating gain levels across a dozen independent microphones can eat up valuable studio time and risk digital clipping. Roland solves this with its brilliant, one-touch AUTO-SENS technology. By simply pressing the dedicated front-panel button and having your musicians play their loudest passages, the interface automatically analyzes the incoming audio streams and sets the absolute optimum recording level for every single input channel simultaneously. This ensures flawless gain staging for sound engineers, saving time during intense studio sessions.

Ultra-Stable VS STREAMING Technology and DSP Monitor Mixes

Say goodbye to performance-killing audio dropouts and lag. Driven by Roland’s proprietary VS STREAMING driver technology, the Studio-Capture delivers rock-solid, ultra-low latency performance across all modern Mac and PC DAW platforms via a high-speed USB connection. Underneath the hood, a powerful 40-bit internal DSP engine provides four independent, zero-latency direct monitor mixers. This software-driven matrix allows you to route completely custom, tailored headphone cues to different performers on stage or in the tracking room without taxing your computer’s processor.

Key Features and Technical Specifications

• Flagship 16-input / 10-output USB 2.0 audio interface supporting high-resolution 24-bit/192 kHz studio master recording.
• Equipped with 12 premium digitally controlled VS Preamps with individual combo XLR/TRS jacks across the front and rear panels.
• One-touch AUTO-SENS feature automatically dials in the perfect input gain level for all connected channels simultaneously.
• Proprietary VS STREAMING driver tech guarantees bulletproof, ultra-low latency stability on Windows and macOS.
• Four independent software-driven Direct Mixers let you create custom, zero-latency monitoring headphone cues.
• Bright, highly responsive 5-segment LED level meters for all 16 inputs alongside an integrated graphic LCD screen.
• Comprehensive digital I/O layout featuring coaxial S/PDIF inputs/outputs and high-speed MIDI I/O with FPT processing.
• Dual independent headphone monitor outputs with dedicated physical front-panel volume control dials.
• Expandable architecture lets you link two Studio-Capture units to a single computer to achieve 32 inputs and 24 preamps.
• Includes a premium power adapter and two heavy-duty metal 2U rackmount brackets for effortless studio rack installation.

Seamless Routing Matrix and Road-Tested Durability

The Studio-Capture is heavily optimized to serve as the central nervous system of a professional audio workflow. Its rear panel hosts dedicated XLR main monitor outputs with an analog front-panel level knob, 8 balanced 1/4-inch TRS line outputs for outboard gear routing, and dedicated high-impedance (Hi-Z) selection switches on inputs 1 and 2 for direct guitar tracking. Housed in an incredibly durable, impact-resistant aluminum chassis, it transitions seamlessly from desktop composing duties to permanent commercial studio rack integration using the included 2U rack ears.

Frequently Asked Questions

Can I connect line-level instruments like synthesizers to the main inputs?
Yes, absolutely. All 12 of the front and rear combo jacks support balanced or unbalanced 1/4-inch line-level signals. Additionally, inputs 13 through 16 are configured as dedicated, high-headroom 1/4-inch TRS line inputs on the rear panel, perfect for stereo keyboard arrays and drum machines.

What happens to the available channel count when recording at the highest sample rate of 192 kHz?
When pushing the interface to its maximum 24-bit/192 kHz high-resolution setting, the system reconfigures its internal processing bandwidth to support 8 simultaneous recording channels and 4 playback channels. Full 16x10 channel tracking is completely retained up to 96 kHz.
