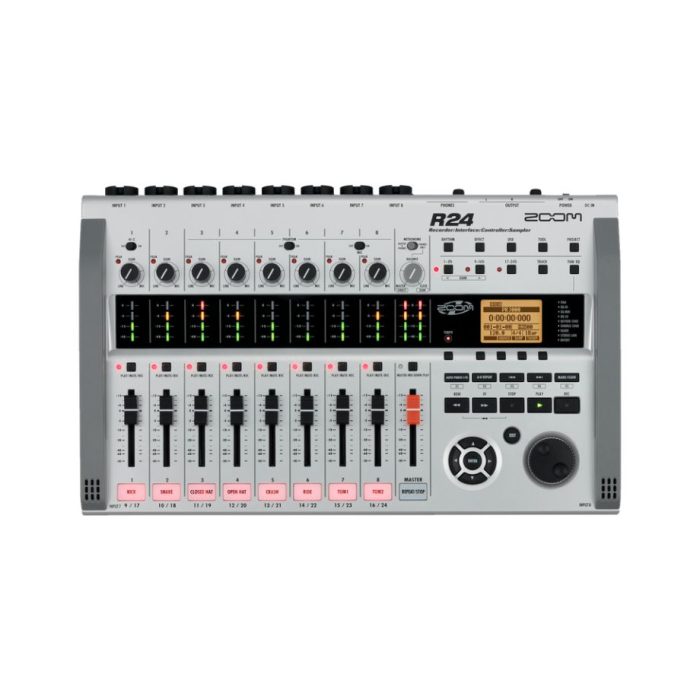

Zoom R24 24-Track Multi-Track Recorder Digital Mixer Audio Interface Controller Sampler

Zoom R24 Multi-Track Recorder, Interface, Controller & Sampler

The Zoom R24 is a comprehensive portable production workstation that combines a 24-track digital recorder, USB audio interface, DAW controller, pad sampler, and rhythm machine in a single integrated unit. Designed for musicians, producers, and audio engineers, it delivers a complete studio workflow from recording and editing to mixing and performance.

24-Track Recording with Multi-Input Capability

The R24 provides up to 24 playback tracks and supports up to 8 simultaneous recording inputs, making it suitable for full band recordings, multi-microphone setups, and layered studio productions. It records in high-quality WAV format at 16/24-bit resolution with 44.1 or 48 kHz sampling rates.

Integrated Stereo Microphones and 8 Inputs

Built-in stereo condenser microphones allow quick and simple recording without external gear. In addition, the unit includes 8 XLR/TRS combo inputs that support microphones, instruments, and line-level sources, enabling flexible recording configurations for studio and field use.

All-in-One Production System

The R24 integrates multiple production tools into one device, including a multitrack recorder, pad sampler, rhythm machine, DAW control surface, and audio interface. This allows users to create, edit, and mix music without needing a computer-based workflow.

DAW Control Surface and Audio Interface

With USB connectivity, the R24 functions as an 8-in/2-out audio interface and supports Mackie Control emulation for DAW software such as Cubase, Logic, and Ableton Live. This provides tactile hardware control over digital mixing and editing workflows.

Built-In Effects and Mixing Tools

The internal mixer includes physical faders, EQ, panning, and routing controls. It also features over 100 DSP effects including compression, reverb, delay, amp simulation, and mastering tools for professional-grade sound shaping directly within the unit.

Pad Sampler and Rhythm Machine

The R24 includes a built-in pad sampler with 8 velocity-sensitive pads, capable of triggering up to 24 samples or loops. It also includes a rhythm machine with internal drum patterns and sequencing tools for beat creation and performance-based production.

Portable Field Recording Capability

Battery operation and SD card recording make the R24 suitable for mobile recording sessions, rehearsals, and on-location production. It is designed to function as a complete portable studio without requiring a computer.

Key Features

• 24-track playback with up to 8-track simultaneous recording
• 8 XLR/TRS combo inputs for microphones and instruments
• Built-in stereo condenser microphones
• USB audio interface (8-in/2-out) with DAW compatibility
• Mackie Control emulation for DAW control
• Over 100 onboard DSP effects for mixing and mastering
• Pad sampler with 8 pads and 24-sample capability
• Rhythm machine with built-in drum patterns

Specifications

• Recording Format: WAV (16/24-bit, 44.1/48 kHz)
• Tracks: 24 playback / 8 simultaneous recording
• Inputs: 8 × XLR/TRS combo inputs
• Outputs: Stereo line outputs + headphone output
• Storage: SD/SDHC cards up to 32 GB
• Power: AC adapter or battery operation
• USB: Audio interface and control surface mode
• Effects: 100+ DSP effects including amp modeling and mastering tools

Ideal For

The Zoom R24 is ideal for musicians, producers, bands, and audio engineers who need a complete portable studio solution capable of handling recording, sampling, mixing, and DAW integration in a single hardware device.
