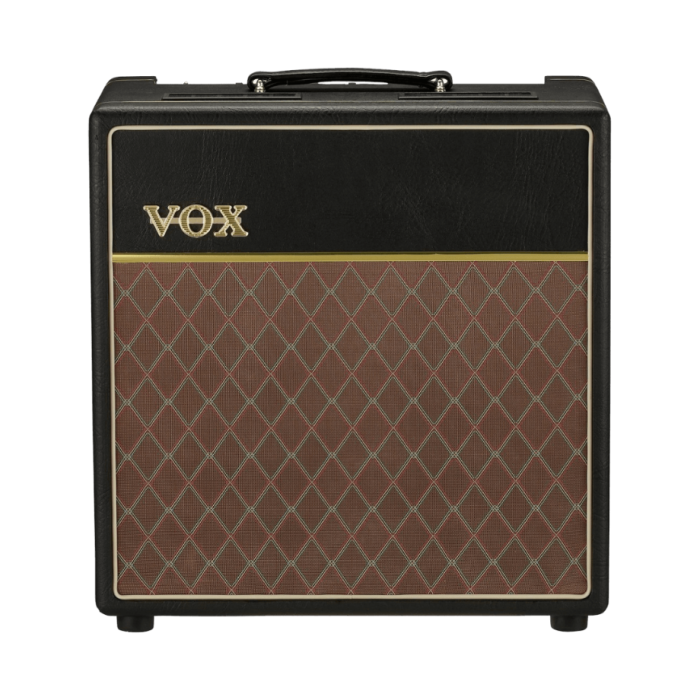

Vox AC15HW60 60th Anniversary Hand-Wired 15-Watt 1x12 All-Tube Guitar Combo Amplifier

The Vox AC15HW60 is a prestigious 60th-anniversary limited edition amplifier that marks a historic return to UK manufacturing. Meticulously engineered to replicate the legendary JMI-era AC15/4 circuit from 1960, this hand-wired masterpiece captures the authentic tone, feel, and soul of the amplifiers that defined the sound of the early British Invasion.

At its core, the AC15HW60 utilizes point-to-point hand-wired construction on turret strips, ensuring the shortest possible signal path and absolute sonic purity. It features the sought-after EF86 pentode preamp tube in the Normal channel—the secret behind the iconic "Vox Chime"—and the complete, complex Vibravox circuit in the second channel, offering both lush tremolo and true pitch-shifting vibrato. Housed in a premium 13-ply Baltic birch cabinet and loaded with a custom UK-made Celestion "Silver Alnico" speaker, this is as close as a modern player can get to the "holy grail" of 1960s British amplification.

Key Features of the Vox AC15HW60

• Authentic UK Craftsmanship: The first Vox amplifier manufactured in the United Kingdom since 2003, honoring the 60th-anniversary legacy.
• JMI-Era Circuitry: A faithful reproduction of the 1960 AC15/4 circuit, utilizing point-to-point hand-wiring for uncompromising tone.
• EF86 Pentode Channel: Delivers the legendary, harmonically rich chime and smooth, musical overdrive that made the original AC15 an industry standard.
• Complex Vibravox Circuit: Features the original, deep-pulsing tremolo and pitch-shifting vibrato circuits found in the 1960 originals.
• Celestion Silver Alnico Speaker: Equipped with a premium, UK-made 12-inch Alnico speaker featuring a Műller H1777 cone for classic vintage voice.
• No Negative Feedback: Designed without a negative feedback loop in the power amp, preserving the raw, organic harmonic richness of the EL84 tubes.

Technical Specifications

• Country of Origin: United Kingdom
• Power Output: 15 Watts RMS
• Tube Complement: 3 x 12AX7, 1 x 12AU7, 1 x EF86, 2 x EL84, 1 x EZ81
• Construction: Point-to-point hand-wired on turret strips
• Cabinet: 13-ply Baltic birch plywood
• Speakers: 1 x 16-ohm Celestion G12 "Silver Alnico" with Műller H1777 cone
• Controls: Vibrato Speed, Vib/Trem Select, Vib/Trem Volume, Normal Volume, Brilliance, Cut
• Inputs: 2 x Vib/Trem (High/Low), 2 x Normal (High/Low)
• Included Accessories: Padded cover, vintage-style "egg" foot switch, power cord, manual
• Dimensions (W x D x H): 20.98 x 10.94 x 22.64 inches
• Weight: 53 lbs

The Vox AC15HW60 is not merely an amplifier; it is a time capsule. By reviving the original 1960 JMI design with premium components and traditional UK manufacturing, it provides guitarists with an unparalleled opportunity to own the ultimate expression of the Vox heritage.
