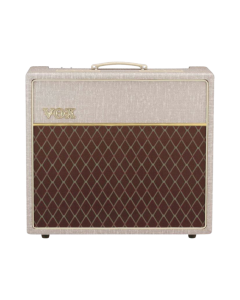

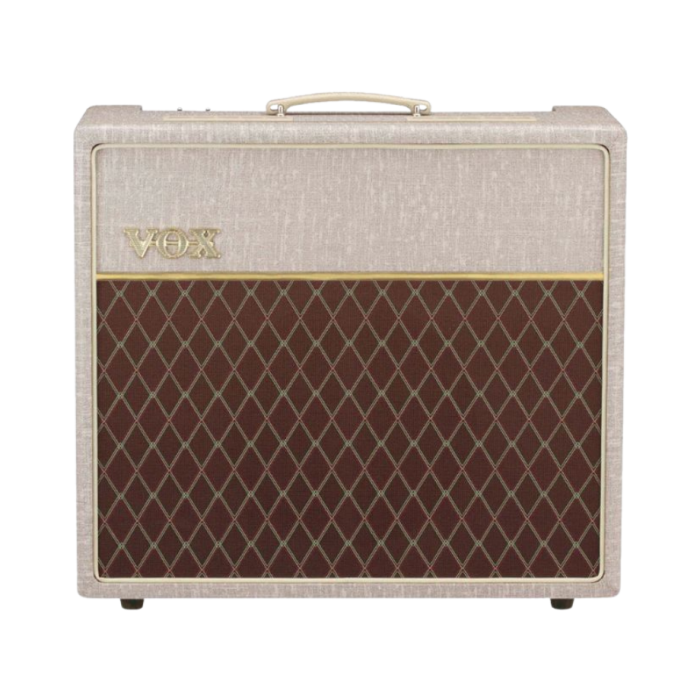

Vox AC15HW1X Hand-Wired 15-Watt 1x12 All-Tube Combo Guitar Amplifier
Brand
VOX
The Vox AC15HW1X Hand-Wired combo amplifier features point-to-point turret board wiring paired with a 12-inch Celestion Alnico Blue speaker for the ultimate in vintage British tube chime and tonal transparency. Driven by two EL84 power tubes and three 12AX7 preamp tubes, it offers exceptional dynamic sensitivity and expression. Complete with Normal and Top Boost channels, a HOT/COOL mode switch for extra gain boost, a bypassable Master Volume control, and a classic fawn vinyl finish, this 15-watt flagship combo delivers unmatched tonal richness for stage and studio.
Elevate your sound to the pinnacle of British valve tone with the VOX AC15HW1X Hand-Wired Tube Guitar Amplifier. Combining meticulous turret board point-to-point wiring with the legendary clarity and chime of a genuine Alnico Alnico Blue speaker, this 15-watt all-tube masterpiece delivers uncompromised audio fidelity, touch sensitivity, and boutique-level craftsmanship for the discerning musician.
Why Choose the VOX AC15HW1X?
For tone purists who demand the absolute authentic sound of 1960s British amplification, standard printed circuit board amplifiers often miss the mark. VOX built the AC15HW1X using traditional hand-wired turret board construction, entirely bypassing printed circuit traces to ensure the purest possible signal path. Paired with a prized Celestion Alnico Blue speaker, this amplifier produces sparkling highs, rich mids, and a warm, responsive low-end punch that reacts dynamically to your every touch.
Key Features & Specifications
- True Hand-Wired Turret Board Construction: Built by hand without printed circuit boards to ensure pristine signal transparency and exceptional long-term reliability.
- All-Tube Signal Path: Driven by 3 x ECC83/12AX7 preamp tubes, 2 x EL84 power tubes, and an authentic EZ81 rectifier tube for classic valve sag and warmth.
- Celestion Alnico Blue Speaker: Outfitted with a premium 12-inch 16-ohm Alnico Blue speaker renowned for its fast transient response, punchy character, and musical chime.
- OP/Mode Power Attenuation Switch: Seamlessly switch between 15 watts and 7.5 watts of RMS output to achieve saturated power-amp breakup at lower, manageable volumes.
- Traditional Two-Channel Design: Features a Normal channel (with a Bright switch) and a Top Boost channel (with interactive Bass and Treble controls plus a Hot/Cool gain switch).
- Master Volume & Bypass Switch: Includes a master volume control alongside a Master Volume Bypass feature that completely removes the master section from the circuit for raw, vintage tone.
- Classic Fawn Vinyl Aesthetics: Wrapped in vintage-correct fawn-colored vinyl with brown diamond grille cloth and retro cream chickenhead knobs.
Boutique Flexibility: Alnico Blue Performance & Power Control
The defining centerpiece of the AC15HW1X is its legendary Celestion Alnico Blue speaker, celebrated for its bell-like highs and creamy compression when pushed hard. To give you ultimate control over your environment, the rear panel features an OP/Mode switch that halves the output wattage from 15W to 7.5W, allowing you to drive the power tubes into sweet overdrive without overwhelming your practice room or studio.
Technical Specifications
| Model: | VOX AC15HW1X Hand-Wired Tube Amplifier |
| Output Power: | 15 Watts RMS into 8/16 Ohms (switchable to 7.5 Watts) |
| Tube Complement: | Preamp: 3 x ECC83/12AX7 | Power: 2 x EL84 | Rectifier: 1 x EZ81 |
| Speaker: | 1 x 12" 16-ohm Celestion Alnico Blue Speaker |
| Inputs: | Normal Jack (High/Low), Top Boost Jack (High/Low), Footswitch Jack |
| Outputs: | External Loudspeaker Jack, Extension Loudspeaker Jack |
| Controls: | Normal Volume, Top Boost Volume, Treble, Bass, Master Tone Cut, Master Volume, Bright Switch, Hot/Cool Switch, OP/Mode Switch, Master Volume Bypass |
| Dimensions (W x D x H): | 24.02" x 10.43" x 21.65" (610 x 265 x 550 mm) |
| Weight: | 49 lbs (22.2 kg) |
What’s Included in the Box?
To keep your boutique amplifier looking pristine, the VOX AC15HW1X comes bundled with a custom-fit Dust Cover and a single-button VFS1 Footswitch for remote control functions.
Experience the ultimate union of hand-wired circuitry and Alnico Blue magic. Order your VOX AC15HW1X Hand-Wired Tube Guitar Amplifier from Gigstore today!
