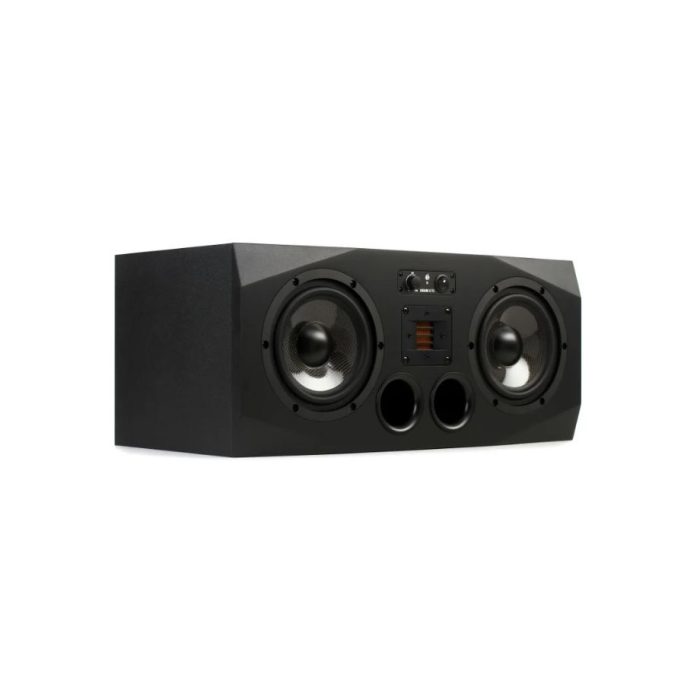

ADAM Audio A77XB Active Studio Monitor
Brand
ADAM
The ADAM Audio A77X is a powerful, horizontally oriented 2.5-way active monitor designed for precision nearfield and midfield monitoring. Featuring dual 7" carbon fiber woofers and the proprietary X-ART tweeter, it delivers a massive 122 dB SPL and a wide frequency response (38 Hz – 50 kHz), making it a centerpiece for professional recording and mastering studios in Dubai and the GCC.
ADAM Audio A77X: The Horizontal Powerhouse of the AX-Series
The ADAM Audio A77X is a professional 2.5-way monitor that has become a staple in high-end studios worldwide. Designed for horizontal orientation, the A77X offers the punch and volume of a midfield monitor with the surgical detail of a nearfield reference. For engineers in the UAE working on dense arrangements, cinematic scores, or electronic music, the A77X provides a wide stereo image and effortless low-end authority that ensures every nuance of the mix is heard.
Advanced 2.5-Way Driver Configuration
The A77X stands out with its unique driver integration, utilizing three dedicated amplifiers to power its triple-driver array:
- X-ART Ribbon Tweeter: Handmade in Berlin, this tweeter reproduces frequencies up to 50kHz with incredible speed and transparency, providing the "air" and detail required for high-resolution audio.
- Dual 7-Inch Woofers: Constructed from ultra-rigid Carbon/Rohacell/Glass fiber. In the 2.5-way system, both woofers work together at the low end, but only one handles the midrange, preventing phase interference and ensuring a highly defined mid-band.
- Tri-Amplified Power: Features two 100W RMS Class D amps for the woofers and a 50W Class A/B amp for the X-ART tweeter, delivering a combined 250W of peak power per speaker.
Exceptional Stereo Imaging and Depth
Due to its horizontal construction and symmetrical driver placement, the A77X provides an expansive "sweet spot." This makes it ideal for larger console bridges or workstations where multiple people need to hear an accurate representation of the mix. The dual front-firing ports allow for powerful bass reproduction down to 38Hz, even when placed near walls in smaller UAE production rooms.
Precision Tuning for Any Room
The A77X is equipped with a sophisticated control panel to adapt to your studio’s unique acoustics:
- High/Low Shelf Filters: Adjust frequencies above 5kHz and below 300Hz by ±6dB to optimize for room placement.
- Tweeter Gain: Fine-tune the high-frequency output by ±4dB.
- Front-Panel Convenience: Features a dedicated power switch and volume control on the front for easy access during long sessions.
Technical Specifications
- Tweeter: X-ART Accelerated Ribbon Tweeter (4 inch² diaphragm).
- Woofers: 2 x 7" Carbon/Rohacell/Glass Fiber Composite.
- Amplification: 250W RMS Total (100W + 100W LF, 50W HF).
- Frequency Response: 38 Hz – 50 kHz.
- Maximum SPL: ≥122 dB (per pair at 1m).
- Crossover Frequencies: 400 Hz / 3 kHz.
- Inputs: Balanced XLR, Unbalanced RCA.
- Dimensions (HxWxD): 235 mm x 530 mm x 280 mm.
- Weight: 12.8 kg (28.2 lbs) per unit.
Experience wide-screen audio precision. Order the ADAM Audio A77X from Gigstore today and elevate your studio to international monitoring standards.
