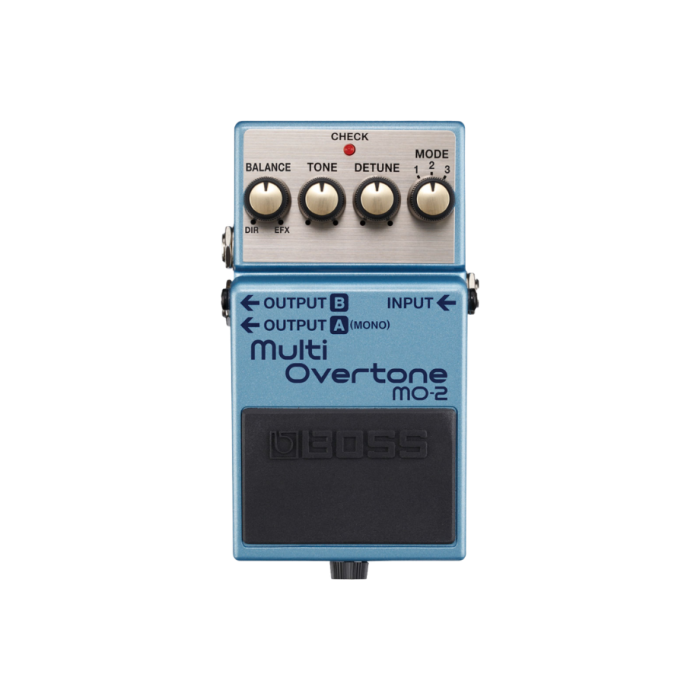

BOSS MO-2 Multi Overtone Harmonic Enhancement Pedal

BOSS MO-2 Multi Overtone – Harmonic Enhancement and Next-Generation Tone Generator

The BOSS MO-2 Multi Overtone is an innovative compact effects pedal designed to create rich, harmonically complex tones using advanced Multi-Dimensional Processing (MDP) technology. Instead of simply duplicating octave or modulation effects, it analyzes your guitar’s harmonic content in real time to generate entirely new overtone-rich sounds that enhance and expand your natural instrument tone.

Advanced Multi-Dimensional Processing (MDP) Technology

At the core of the MO-2 is BOSS’s proprietary Multi-Dimensional Processing system, which dynamically analyzes multiple aspects of your input signal and applies adaptive processing to different frequency components. This allows the pedal to create evolving harmonic textures that respond directly to your playing dynamics.

• Powered by BOSS Multi-Dimensional Processing (MDP)
• Real-time harmonic analysis of guitar signal
• Dynamic response to picking strength and volume changes
• Creates complex overtone structures beyond traditional octave effects

Three Distinct Sound Modes

The MO-2 offers three selectable modes, each designed to produce a different harmonic character. These modes range from subtle enhancement to rich, synth-like textures, giving players a wide creative palette from a single compact pedal.

• Three unique overtone generation modes
• Wide tonal variation using simple controls
• Capable of subtle enhancement or extreme harmonic transformation
• Works with clean, distorted guitar, and bass signals

Expressive Tone Shaping Controls

With four intuitive controls, the MO-2 allows precise shaping of harmonic content and tonal balance. The DETUNE control in particular adds movement and thickness, creating rich modulation-style textures and pseudo-chorus effects.

• Balance control for wet/dry mix adjustment
• Tone control for brightness and harmonic focus
• Detune control for modulation and widening effects
• Mode selector for switching overtone algorithms

Enhanced Musical Applications

The MO-2 is designed to expand the sonic possibilities of guitar and bass in both live and studio environments. It excels at creating organ-like textures, shimmering octave enhancements, and complex harmonic layering that responds naturally to performance dynamics.

• Ideal for ambient, experimental, rock, and cinematic tones
• Enhances single-note lines and chord textures
• Creates organ-like and synth-inspired harmonic layers
• Responsive to playing dynamics for expressive performance

Professional Connectivity and Build

Built in BOSS’s durable compact pedal format, the MO-2 offers reliable performance for stage and studio use. It supports mono or stereo output configurations for flexible integration into pedalboards and recording setups.

• Mono or stereo output capability
• Buffered bypass for consistent signal integrity
• Standard 9V power input (battery or adapter)
• Rugged BOSS metal chassis for long-term durability

Key Specifications

• Technology: Multi-Dimensional Processing (MDP)
• Controls: Mode, Balance, Tone, Detune
• Input impedance: 1 MΩ
• Output impedance: 1 kΩ
• Power: 9V battery or PSA adapter
• Current draw: 60 mA
• Dimensions: 73 × 129 × 59 mm
• Weight: 415 g (including battery)

Ideal For

The BOSS MO-2 Multi Overtone is ideal for guitarists and bass players seeking unique harmonic enhancement, experimental textures, and modern sound design capabilities. It is especially effective for players looking to expand beyond traditional octave and modulation effects into more complex, evolving tonal landscapes.
