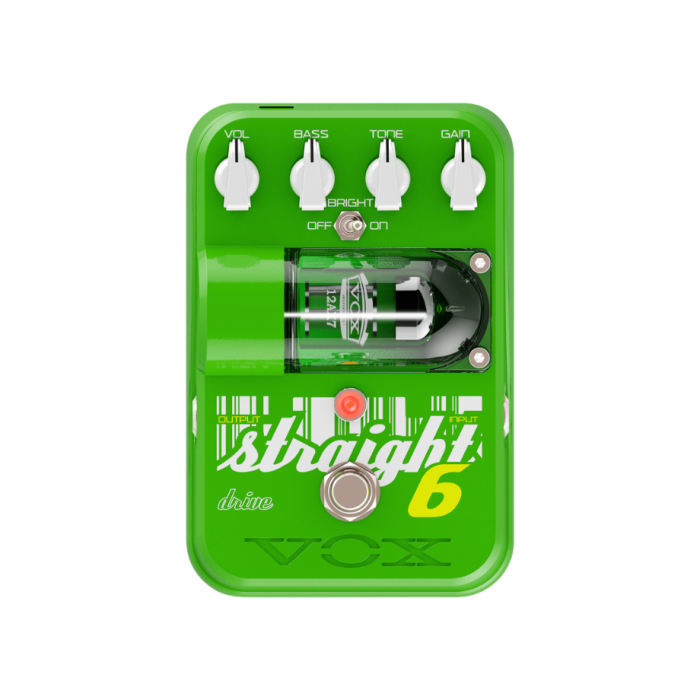

Vox Tone Garage Straight 6 Drive Vacuum Tube Overdrive Pedal
Brand
VOX
Experience authentic tube amplifier overdrive with the Vox Tone Garage Straight 6 Drive pedal, featuring an onboard 12AX7 vacuum tube, Hi-Volt technology, Bright switch, Tone shaping, and true bypass switching.
Infuse your pedalboard with authentic British valve tone and wide dynamic range using the Vox Straight 6 Overdrive Guitar Effects Pedal. Part of Vox's celebrated Tone Garage series, this boutique stompbox features a genuine onboard ECC83 (12AX7) vacuum tube operating at a high 200 volts to deliver true, touch-sensitive tube distortion and amp-like response.
The Straight 6 Overdrive excels at producing classic, harmonic-rich British crunch that cleans up beautifully when you roll back your guitar's volume knob. It features an integrated Bright switch that injects sparkling high-end definition and presence, making it especially effective for retaining clarity even when using warm humbucking pickups. From smooth blues overdrive to driving classic rock rhythms, it provides versatile, organic gain for any musical style.
Key Features of the Vox Straight 6 Overdrive
- Genuine Tube-Driven Circuitry: Equipped with a real ECC83 / 12AX7 vacuum tube running at 200V for authentic valve saturation, compression, and touch sensitivity.
- Wide Dynamic Range: Delivers natural, touch-responsive British overdrive that reacts dynamically to your picking attack and guitar volume adjustments.
- Integrated Bright Switch: Instantly boosts upper harmonics and definition, ensuring your tone remains clear and articulate even with humbuckers.
- True Bypass Design: Maintains your dry instrument signal with zero coloration when the effect is disengaged.
- Rugged Die-Cast Chassis: Built into a heavy-duty, tour-ready metal enclosure designed for reliable performance on the road.
Technical Specifications
- Effect Type: Tube-Driven Overdrive
- Vacuum Tube: ECC83 / 12AX7 (operating at 200V high-voltage)
- Input Impedance: 1M ohms
- Output Impedance: 2.2k ohms
- Connections: 1 x 1/4" Input Jack, 1 x 1/4" Output Jack
- Power Supply: 6 x AA batteries or optional 9V AC adapter (DC 9V)
- Current Consumption: 240 mA
- Battery Life: Approximately 7 hours (using alkaline batteries)
- Dimensions (W x D x H): 87 x 132 x 63 mm (3.43 x 5.20 x 2.48 inches)
- Weight: 420 g / 14.81 oz (excluding batteries)
Add genuine high-voltage tube warmth and classic British bite to your rig. The Vox Straight 6 Overdrive delivers authentic valve dynamics and pristine clarity in a robust stompbox design.
