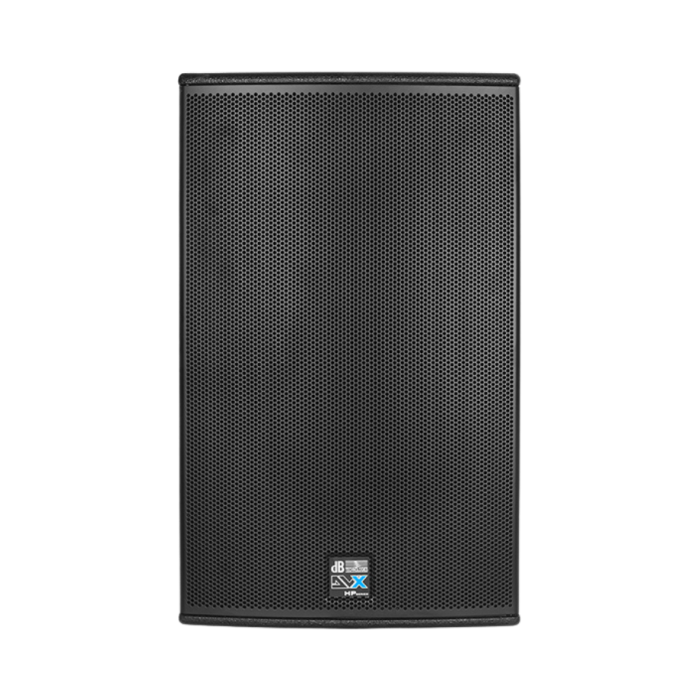

dB Technologies DVX D15 HP 2-Way Active PA Speaker
Brand
D B TECHNOLOGIES
Deliver extreme sound pressure, precise dispersion, and full-range acoustic performance with the dBTechnologies DVX D15 HP. Built as a flagship active 2-way speaker for touring live sound, high-output venues, and mobile production, this heavy-duty PA speaker delivers punchy bass and crystal-clear high frequencies across demanding live environments.
The dBTechnologies DVX D15 HP is a high-performance 2-way active loudspeaker engineered for demanding professional touring and installation applications. Designed to deliver punchy, assertive bass without the immediate need for a subwoofer, it combines massive output with a highly dynamic, clean sound profile.
Key Technologies & Features
- Digipro® G2 Class-D Amplification: Features an advanced digital power amplifier providing 1400W Peak / 700W RMS, ensuring high efficiency, reduced thermal output, and superior dynamism.
- High-Performance Transducers: Equipped with a 15" woofer with a massive 3.5" voice coil and a 1.4" titanium compression driver with a 2.5" voice coil, designed to handle heavy loads and project audio clearly over medium-to-long distances.
- Multifunctional Housing: Built from robust multiplex plywood, the enclosure features a 45° monitor angle, integrated rigging points (6x M10), and flytracks, making it ideal for use as a stage wedge, FOH main, or installed unit.
- Onboard DSP Controller: Advanced 24-bit/48 kHz processing manages crossover, phase/delay alignment, and multi-band limiters (RMS, Peak, Thermal). Includes dedicated presets for FOH and Monitor modes.
- Rotatable CD Horn: Features a high-quality aluminum constant directivity horn that can be rotated to optimize dispersion patterns (60° x 40°) based on the speaker's orientation.
Technical Specifications Overview
| Speaker Type | 2-Way Active Speaker (Discontinued Series) |
|---|---|
| Frequency Response [-10 dB] | 49 Hz – 20,000 Hz |
| Max SPL | 132 dB |
| Low Frequency Driver (LF) | 15" Woofer (3.5" Voice Coil) |
| High Frequency Driver (HF) | 1.4" Titanium Compression Driver (2.5" Voice Coil) |
| Directivity (H x V) | 60° x 40° (Rotatable CD Horn) |
| Amplifier Technology | Digipro® G2 Class-D (1400W Peak / 700W RMS) |
| DSP Controller | 24-bit / 48 kHz (FOH and Monitor Presets) |
| Housing Construction | Multiplex Plywood, Multifunctional Design |
| Dimensions (W x H x D) | 430 mm x 690 mm x 450 mm (17.2 in x 27.6 in x 18.0 in) |
| Weight | 30.3 kg (66.8 lbs) |
