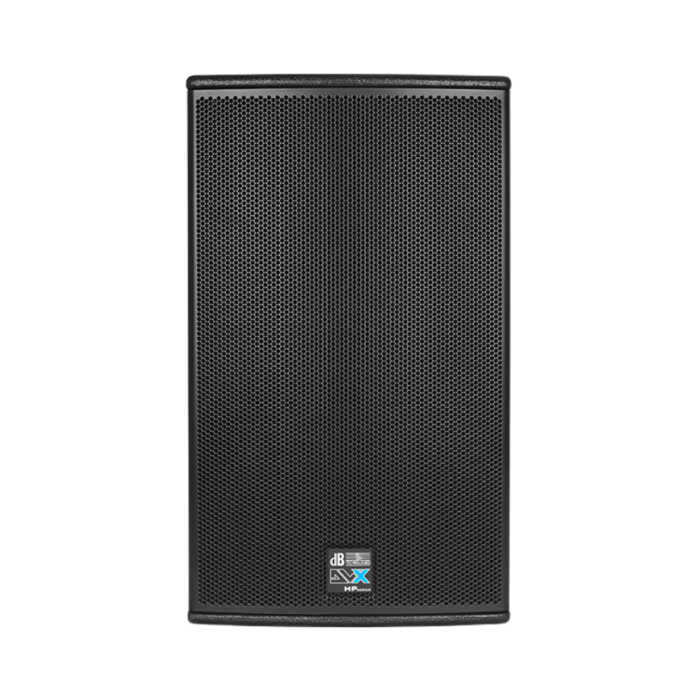

dB Technologies DVX D12 HP 2-Way Active PA Speaker
Brand
D B TECHNOLOGIES
Deliver exceptionally clear, punchy audio and precise directivity with the dBTechnologies DVX D12 HP. Engineered as a professional workhorse for live touring, venue PA systems, and high-level stage monitoring, this active 2-way speaker offers remarkable power-to-weight ratio and acoustic clarity across demanding audio applications in the UAE.
The dBTechnologies DVX D12 HP is a high-performance, 2-way active speaker engineered for professional sound reinforcement where precision, high output, and maximum reliability are essential. Now part of our discontinued product legacy, this unit remains a benchmark for professional-grade vocal accuracy and versatile sound reproduction.
Key Technologies & Features
- Digipro® G2 Amplification: Features highly efficient Class-D amplification (700W RMS / 1400W Peak), delivering superior dynamism with reduced energy consumption and improved thermal management.
- High-Precision Transducers: Equipped with a powerful 12" woofer (3" v.c.) and a premium 1.4" compression driver (2.5" v.c.) specifically engineered to handle high loads for medium to long-throw applications.
- Onboard DSP Controller: Integrated 24-bit/48 kHz processing provides advanced system protection (multiband limiter, thermal, peak, RMS), phase/time alignment, and specific "FOH" and "Monitor" presets.
- Multifunctional Plywood Housing: Rugged multiplex plywood construction features a 45° slanted design for floor monitoring, integrated rigging points (M10), and quick-release pins for professional deployment.
- Professional Connectivity: Designed for seamless integration with DVA series subwoofers and complex professional sound chains.
Technical Specifications Overview
| Speaker Type | 2-Way Active Speaker (Discontinued Series) |
|---|---|
| Frequency Response [-10 dB] | 55 Hz – 20,000 Hz |
| Max SPL | 131 dB |
| Low Frequency Driver (LF) | 12" Woofer (3" Voice Coil) |
| High Frequency Driver (HF) | 1.4" Compression Driver (2.5" Voice Coil) |
| Directivity | 60° x 40° (Rotatable Aluminum CD Horn) |
| Amplifier Technology | Digipro® G2 Class-D (700W RMS / 1400W Peak) |
| DSP Controller | 24-bit / 48 kHz (FOH/Monitor Presets) |
| Housing Construction | Multiplex Plywood (Multifunctional) |
| Dimensions (W x H x D) | 370 mm x 625 mm x 395 mm (14.8 in x 25 in x 15.8 in) |
| Weight | 27.5 kg (60.63 lbs) |
