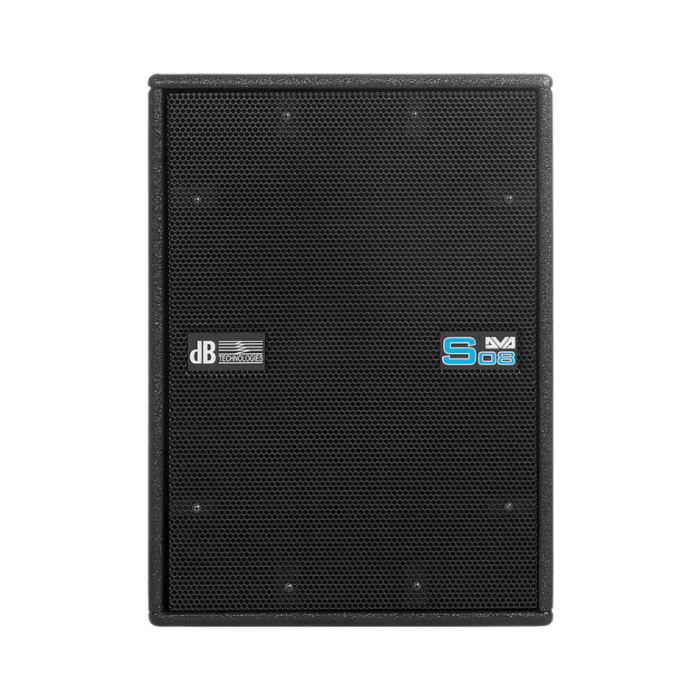

dBTechnologies DVA S08 DP 800W 12" Active Bandpass Subwoofer
Brand
D B TECHNOLOGIES
Deliver high-impact low-frequency response in an ultra-compact footprint with the dBTechnologies DVA S08 DP Active Bandpass Subwoofer. Engineered with a high-power 12-inch RCF neodymium woofer featuring a 3-inch voice coil, this lightweight active sub delivers tight, fast, and precise bass down to 40 Hz with a maximum output of 131 dB SPL. It serves as an exceptional sub-bass complement for mobile DJs, band setups, and compact line array configurations like the DVA T4 modules.
Deliver punchy, tight low frequencies to your portable sound reinforcement systems and compact line array configurations with the dBTechnologies DVA S08DP, a high-performance active bass-reflex subwoofer engineered for live music venues, mobile PA rigs, and professional audio applications.
Key Features & Engineering
- Digipro® Class-D Amplification: Powered by an efficient 800W RMS digital amplifier with a switched-mode power supply, delivering high dynamic response and exceptional thermal stability.
- 12-Inch Bass-Reflex Design: Houses a robust 12" woofer with a 3" voice coil inside a durable multiplex plywood cabinet, producing clear, high-impact low-end down to 40 Hz with a maximum SPL of 131 dB.
- Active Crossover & Controls: Features a built-in stereo controller with selectable crossover frequencies (90 Hz or 120 Hz with a 24 dB/octave slope) and a phase switch (0°/180°).
- Tour-Ready Enclosure: Finished in a tough black textured lacquer and equipped with integrated carrying handles, dual M20 pole mount plates, and rear bushings for optional transport casters.
Technical Specifications
| Speaker Type | Active Bass-Reflex Subwoofer |
|---|---|
| Frequency Response [+/- 3 dB] | 40 - 150 Hz |
| Max SPL | 131 dB |
| Low Frequency Driver (LF) | 12" Woofer (3" Voice Coil) |
| Amplifier Technology | Digipro® Class-D |
| RMS Power | 800 W |
| Controller | Digital + Analog (Stereo) with RMS, Peak, and Thermal Limiters |
| Crossover Frequencies | 90 Hz or 120 Hz (24 dB/Octave slope) |
| Enclosure Material | Multiplex Plywood |
| Pole Mount | 2x M20 Threaded Plates |
| Dimensions (W x H x D) | 360 mm x 520 mm x 500 mm (14.2 in x 20.5 in x 19.7 in) |
| Weight | 23 kg (50.71 lbs) |
